| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Voltage: | 220/380 v |
| Brand Name: | huanlong paper straw |
| Condition: | New |
| Certification: | |
| Weight: | 1 ton |
| Dimension(L*W*H): | 3800*1200*1900mm |
| Power(W): | 3 kw |

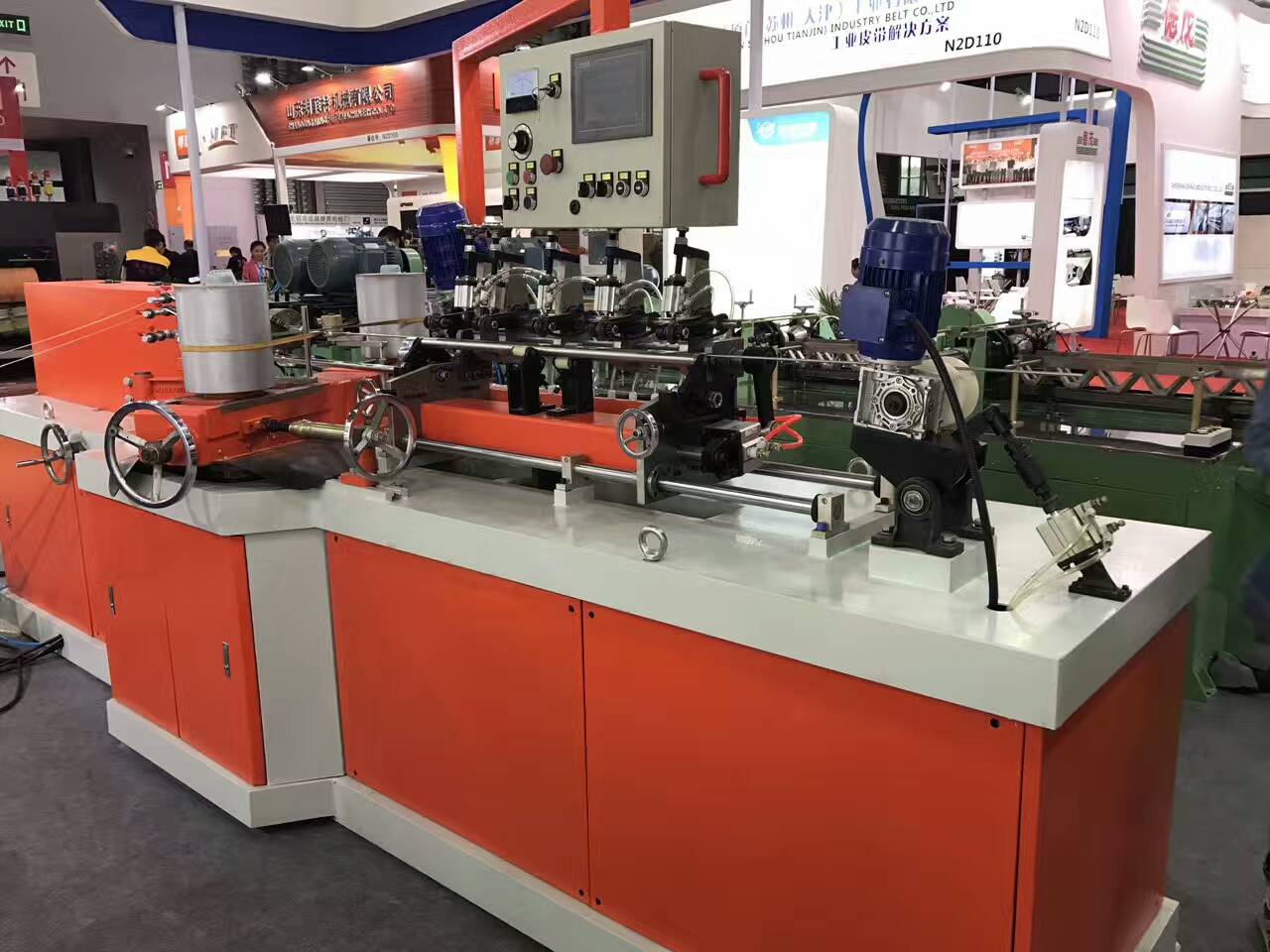

| Model Number: | LJ-2DHMC PAPER STRAW MACHINE |
| Place of Origin: | China (Mainland) |
| Processing Type: | Winding Machine |
| Product Type: | Paper Core Machine |
| Paper straw ID: | 6 to 10 mm |
| Paper straw thickness: | 0.8 to 2 mm |
| Paper straw aking speed: | 20 m/min |
| Paper straw cut length: | 100 to200 mm |
| Paper straw cut in line: | multi-knife cutter |
Quick Details
Specifications
L Adopt human-computer Interface and special operation system, hang-type control panel, control Easier.
L Auto alarm and machine stops when the bottom paper ply broken, avoid inconvenience that glue sticks the shaft.
L Integrate some paper reel Stands in cross-shape into unitary stand, that is to improve the stability of Paper stand and reduce floor space.
L Adopt roller gluing, low Requirement to paper quality, less ground space, and can adopt double-side or Single side gluing according to compressive strength of paper core.
L Flanged shaft can be flexible, Can mini adjust the diameter of paper core with tapered shaft.
L the speed of cutting system Is controlled by servo motor, and can tracking paper core producing speed to synchronization.
L Cutting system adopts Multi-knife cutting at same time, and can cut into 5 sections of short paper Cores, and make sure the precision of cutting, avoid the second-time cutting, Save labors and device.
L Cutting system equipped with One conveyor and output paper tube smoothly.Paper tube collecting device is Equipped by customers.
