1. Description:

See below detail description of the construction, Flame retardant, fire resistance, low smoke zero halogen available.



2. Applications:

these cables are suitable for the interconnection between power distribution unit, widely used in controlling signaling protecting and measuring system

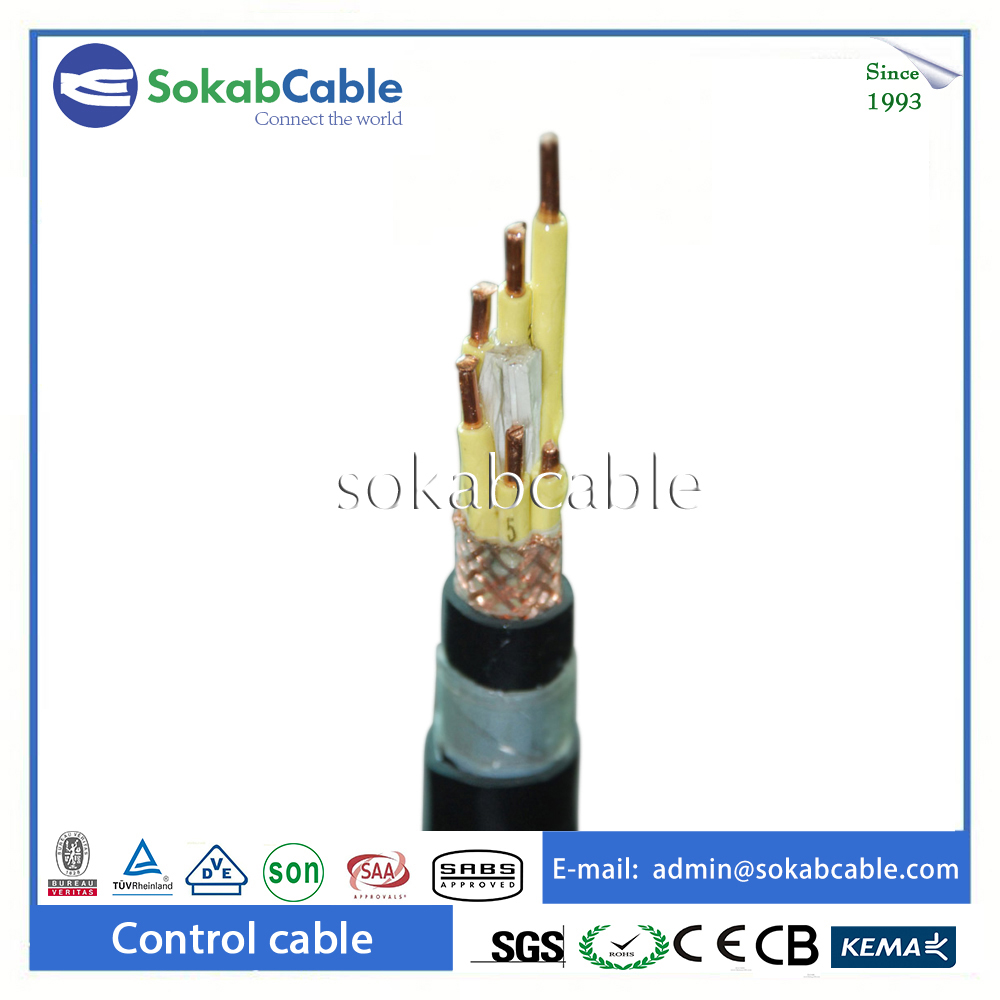

3. Construction

Copper conductor	Copper conductor
Insulation	PVC insulation
Braid	Copper wire braided
Armor	Steel tape armored
Sheath	PVC outer sheath

4. Standard:

IEC60502, IEC60332, other standard such as: BS, DIN, as/NZS, UL upon request

5. Technical data:
Rated voltage: 450/750V, 0.6/1kv
Max. Operating Temp of Conductor: under normal 70℃, emergency ( 105℃), short circuit no more than 5s (160℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 12x cable O.D for single core



6. Certificates:



CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied



7. Core Identification:

Black core with white numbering. OEM Color available, Green/ Yellow earthing core upon request
