| Brand Name: | Autorun |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | pvc |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | AT SERIES |
| Place of Origin: | China (Mainland) |
| Port Size: | 1/2"-4" |
| Media: | Water |
| Power: | Pneumatic |
| Structure: | Ball |

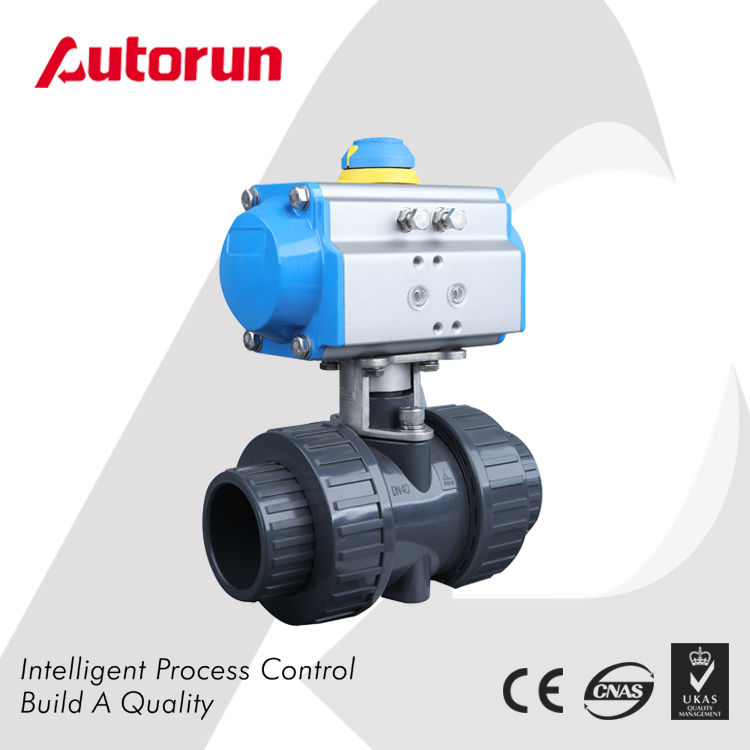

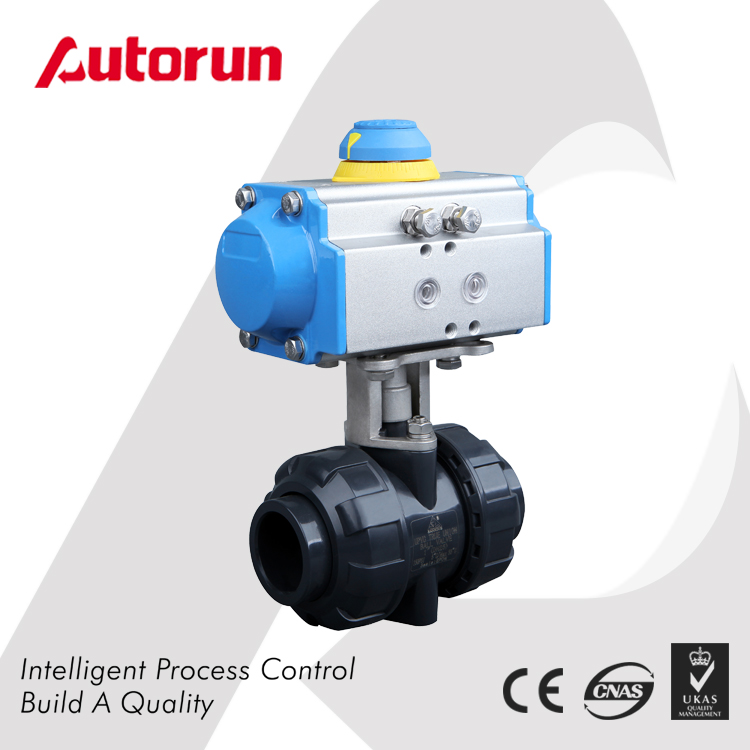

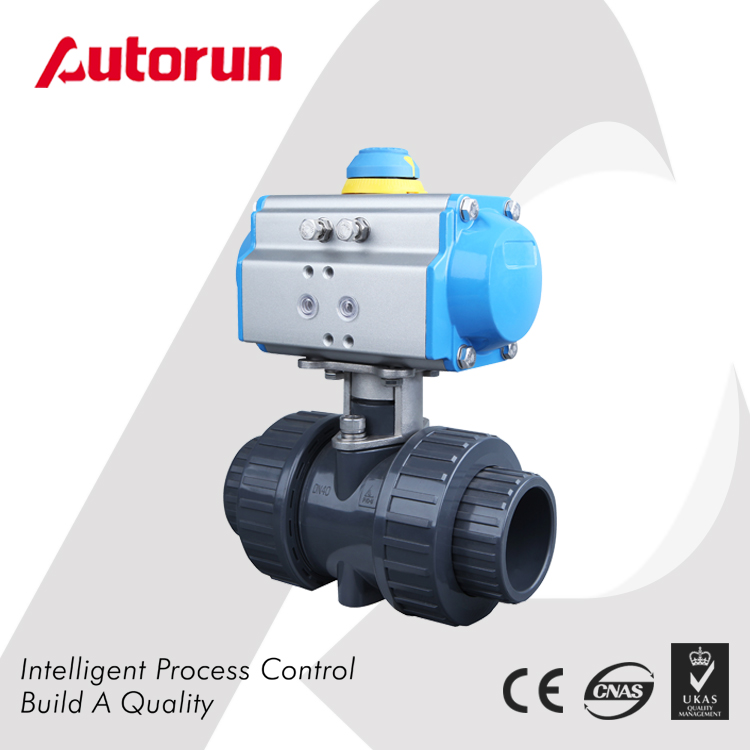

| product name: | Wenzhou supplier pneumatic PVC Ball Valve |
Quick Details
Specifications
Valve Features
Body material: PVC
Seal material: PTFE
End connection: True union
Structure: Floating ball
Nominal diameter: DN15 - DN100 mm
Nominal pressure: PN10 bar
Operation: Pneumatic actuator (DA or SR)
Actuator Features
● Mounting to valve either directly or via bracket.
● Conforming to European and International Standard EN ISO 5211, preferred dimensions.
● Double Rack & Pinion design.
● Double acting or Spring return models utilize the same compact body design.
● Aluminum body, hard anodized externally and internally, for corrosion and wear resistance.
● Adjustable travel stops.
● Safe end cover bolting requiring no special tools.
● Anti blow-out drive pinion.
● Namur air connection can be easily mounted with solenoid valve.
● Parallel and diagonal, double square(star) drive.
● Travel adjustment (at each end) ±5°.
● Easy field conversion between DA and SR models
Body material: PVC
Seal material: PTFE
End connection: True union
Structure: Floating ball
Nominal diameter: DN15 - DN100 mm
Nominal pressure: PN10 bar
Operation: Pneumatic actuator (DA or SR)
Actuator Features
● Mounting to valve either directly or via bracket.
● Conforming to European and International Standard EN ISO 5211, preferred dimensions.
● Double Rack & Pinion design.
● Double acting or Spring return models utilize the same compact body design.
● Aluminum body, hard anodized externally and internally, for corrosion and wear resistance.
● Adjustable travel stops.
● Safe end cover bolting requiring no special tools.
● Anti blow-out drive pinion.
● Namur air connection can be easily mounted with solenoid valve.
● Parallel and diagonal, double square(star) drive.
● Travel adjustment (at each end) ±5°.
● Easy field conversion between DA and SR models
