| Brand Name: | Lianshun |
|---|---|
| Material: | cotton |
| Type: | cotton belt |
| Standard or Nonstandard: | Standard |
| Color: | white |
| Model Number: | 22MD2 |
| Place of Origin: | China (Mainland) |
| Pattern: | Cotton |
| Material: | PVC |
| Thickness: | 2mm |
Quick Details
Specifications
Product Description:
Belt code : 22MD2
Top cover color: White
Pattern : Cotton
Working temperature: -10℃/+80℃
NO. of plies: 2
Belt thickness : 2mm
Weight: 2.2KG/㎡
Breakingload: ≥120N/mm
Working load at 1% elongation: ≥10N/mm
Minimum pulley diameter : 40mm
Max roll width: 1800/2800mm
Processing Description 1.Special matterial,pattern,specifications and color are available on request.
Belt code : 22MD2
Top cover color: White
Pattern : Cotton
Working temperature: -10℃/+80℃
NO. of plies: 2
Belt thickness : 2mm
Weight: 2.2KG/㎡
Breakingload: ≥120N/mm
Working load at 1% elongation: ≥10N/mm
Minimum pulley diameter : 40mm
Max roll width: 1800/2800mm
Processing Description 1.Special matterial,pattern,specifications and color are available on request.
2.Can be processed according to the sample provided by customers.

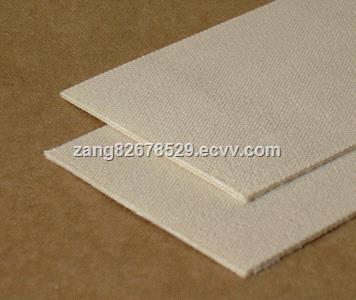

Product Show:
Packing
Product Show:
Packing
