the following example is for you reference.


Features:





Technical details:





Operation method of useage:

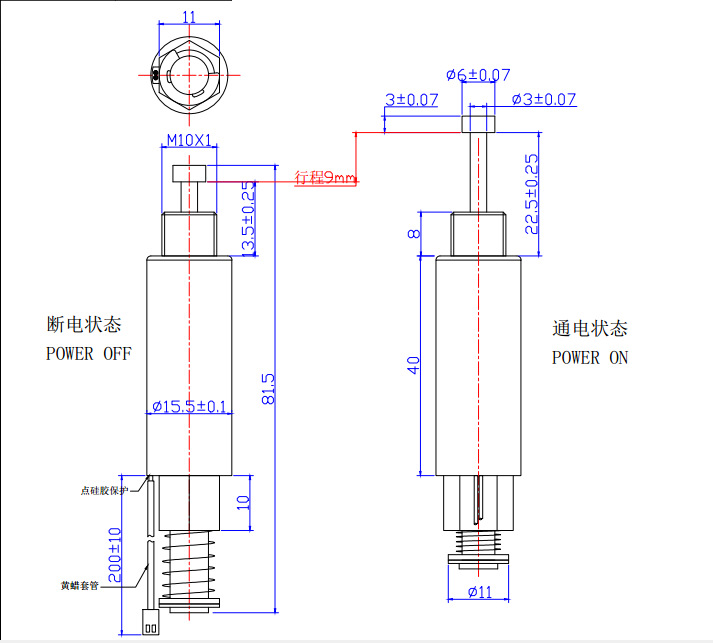

3. 1540 precision testing mechanical and electrical magnet power:

When stop end hung heavy weights, 50 g products, down stroke 9 mm electromagnet electricity can overcome the spring force action,

Electromagnet is not electricity, the spring spring force of 220 gf.

4. 1540 precision test for magnet electrical parameters:

Voltage: DC24V

Power: the existing are: 28.8 W, power and customers in the use of products TongDianLv, when customers to use the TongDianLv was 100%, which is electricity for a long time, this product can be made 4 W power, when customers to use the TongDianLv was 10%, the power can make 40 W.

Current: the existing are: 1.2 A, current = power/voltage, customers when choosing 1540 precision testing mechanical and electrical magnet, it is important to note that the customer installed when the load current of the power supply circuit, if the product doesn't have enough big electric current then the strength of the electromagnet is unattainable.
