Product Description:

with the rapid development of technology, as well as modernization, geogrid and geocell project is applied more and more widely around the world, such as subgrade, embankment, cutting, abutment and ramp of highway and railway, as well as aviation, slide slope, environmental protection, dike, cliff guardrail, reservoir, municipal construction, soft base treatment, airport, goods yard, port, wharf, and so on. In these projects, geogrid geobelts are required for bottoming, so as to ensure overall load and project service life extension. At present, they are adopted in large and medium project in succession all over  the world.

the equipment of our company for geogrid production line is composed of several ultrasonic plastic welders, and imported PLC control will adopted.




Key Advantages:

1. Peel strength at welding point:≥ 600 N
2. Biaxial tensile strength:≥ 130KN
3. Significantly reduce the cost of raw materials, just purchase PET plastic.
4. the latest research and development equipment with a number of patents.


Mesh Size (mm)            Productivity (m2/24 hours)
50 × 50                                    3500
125 × 125                             6000~8000


Characteristics:

Geogrid Production Line/PET Geogrid Making Machine:
1. Touch-screen display and parameter setting, imported piezoelectric ceramic transducer with strong and stable output.
2. Colorful touch-screen control panel.
3. Chinese, English and other languages' menu. Multi-language for your option, easy to operate.
4. the mold is with horizontal adjustable design for prompt and convienient mold adjustment.
5. the new type power amplifier circuit with stronger power and more durable transducers,
6. Frequency automatic tracking, a variety of parameter settings.
7. High degree of automation.




Specifications:

Earthwork Geogrid Production Equipment Model Specifications Table:

 Geogrid Production Line Model    HJM-12-3       HJM-16-4        HJM-24-6          HJM-32-8
 Number of Welding Joints           12 units         16 units          24 units           32 units
 Maximum Output Power            31.2 KW         41.6 KW         62.4 KW          83.2 KW
 Ultrasonic Output Power            15.6 KW         20.8 KW         31.2 KW         41.6 KW
 Equipment Dimensions / m     4.5*1.76*2.46   5.5*1.76*2.46   7.5*1.76*2.46   9.5*1.76*4.26
 Weight                                    3.5 TONS       4.8 TONS        5.7 TONS        7.5 TONS
 Rated Input Voltage                                      AC 380V   N 50-60HZ
 Rated Input Pressure                                          0.8~0.10MPa
 Air Pressure Vessel                                              ≥2.5~3.0/min
 Air Flow                                                1.5~2.0M3                          2.5~3.0M3
 Geogrid Width of Machine              3m                   4m                6m                    8m


1. Machine Rack: Special steel.
2. Pneumatic System: Pneumatic solenoid valve from Taiwan AirTAC Brand.
3. Lift Cylinder: YABANG brand.
4. Welding Vibrator: Imported from German.
5. Using IC control circuit design, digital touch switch.
6. Ultrasonic Generator: Japan's TOSHIBA high-power output amplifier.



Pictures Show:





Applications:

(1) Road surface reinforcement of road, railway and airport road;
(2) Maintenance, reconstruction and widening of old road surface (asphaltum road or c ement concrete road).
(3) Reinforcement of soft soil roadbed, irrigation channels and water dams.






 CE CERTIFICATE PROVIDED

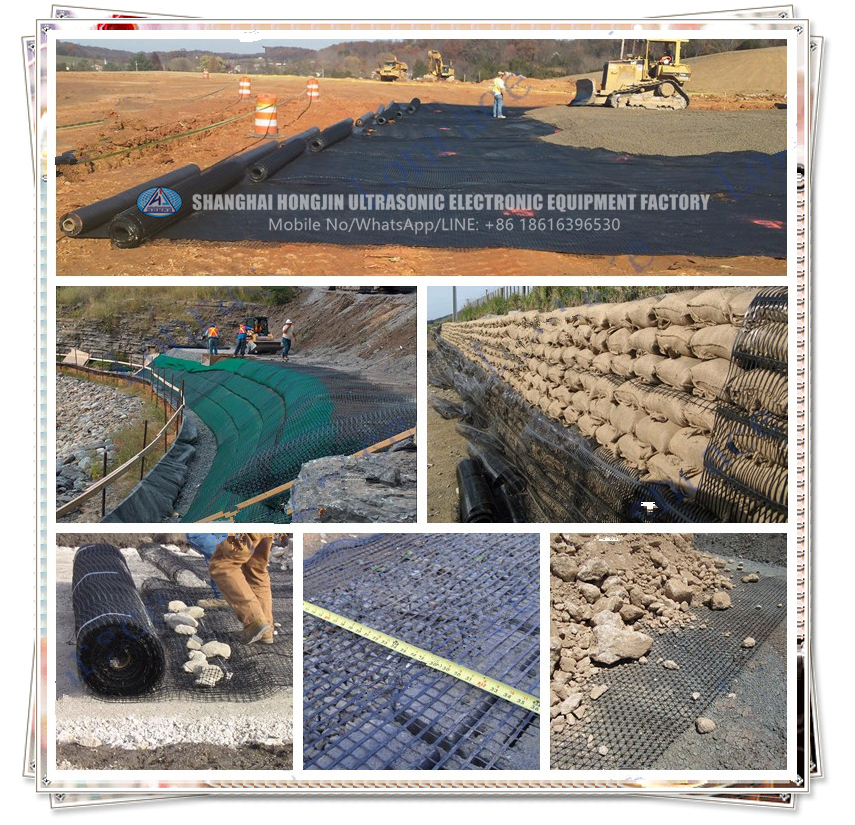

Product Effects:

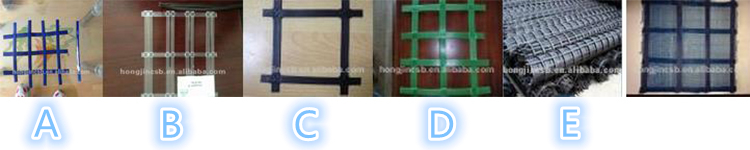

Kindly remind:
Model A: Fibreglass geogrid
Model B: PET geogrid
Model C: Steel-plastic geogrid
Model D: PP geogrid
Model E: PVC -steel plastic geogrid
Model F: Satety net
