Ophthalmic Non Mydriatic Retinal Camera with FFA Mode

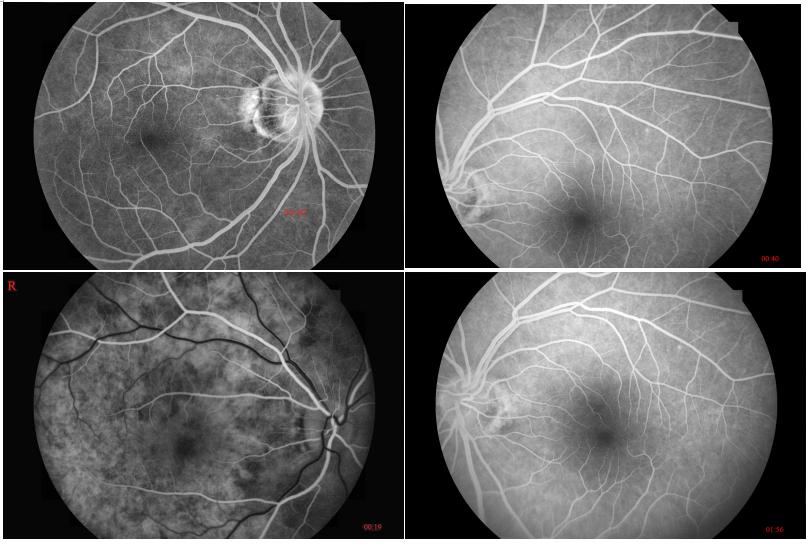

Available with color, red free, fundus fluorescein angiography images

Model: VC-507

Features:
1. Superior optical lens adopted the aspherical and multilayer coating technology;
2. 18 Megapixels sensor offered clear and detailed images;
3. Auto Focus, Auto Shoot and Auto small pupil detection;
4. Simple operation and user friendly;
5. both mydriatic, non mydriatic imaging modes;
6. High quality fluorescein Angiography even under magnify;
7. Low flash intensity and quiet shutter sound;
8. Professional software helped image post-processing and database management.



Technical Specifications:
Types of photography: Color, FA, Red Free, Cobalt(digital)
Retinal observation: LCD monitor
Angle of view: 50 Max
Minimum pupil size: Mydriatic: 4mm or more
Non-Mydriatic: 3.3 mm or more
Mounted digital camera: DSLR
Sensor: 18.0 Megapixels
Patient's diopter compensation: 20D

Adjustment
Working distance: 42mm
Working distance adjustment: Working distance dots on retina
Fixation Target: LED Green
Range of Base Movement: 80mm front and back, 100mm side to side, 30mm Vertical
Panning Range: 30 right to left
Tilting Range: 15 up, 10 down

Power Supply
Input Voltage: AC 220V/110V
Input Frequency: 50/60 Hz

Delivery Package
Dimension: 690*490*870mm
Net Weight: 31kgs
Gross Weight: 45kgs
