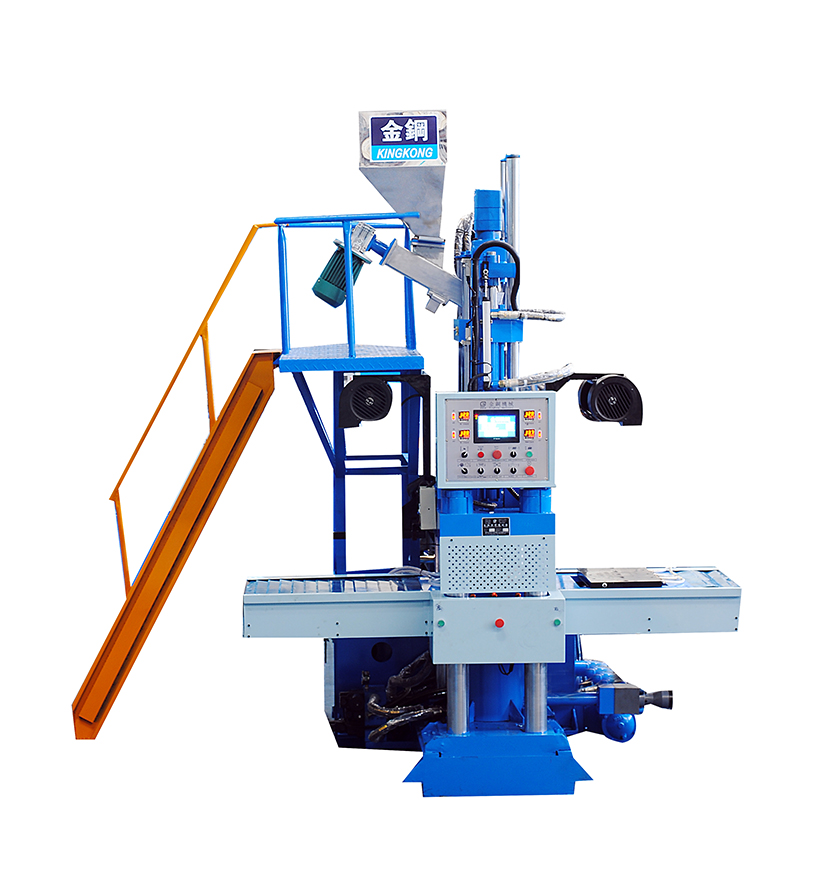

Vertical Strap/upper injection molding machine, 2 stations vertical sole injection molding machine







this is a Sinlge color 2 stations injection molding machine for PVC,TPR,TR Sole / strap production. with Automatic Mold opening device to help you to save man power and improve your production efficiency!





Feature:

• Mold stations: 2 PCS;
• Suitable input raw material: PVC,TPR,TR or TPU;
• Injection screw diameter: 40-55mm for your option;
• Injection volume: 500 grams dpends on the screw diameter;
• Mold water cooling system available depends on the product you want to produce;
• Main spare part brand are from TaiWan or Japan brand;
• Servomotor for your option to help you salve eletricity consumption;
• Mold clamping force can be customized as your request, maximum 120 Tons clamping to ensure output product quality.







Machine specification:



	Model	Unit	JG-L21-70T
Injection System	Injection screw	Mm(￠)	￠45
	Injection pressure	Kgf/cm2	1137
	Injection valume	Cm2/grams	300 (Maximum)
	Screw injection distance	Mm	140
	Screw Rotation speed	RPM	0-180
	Injection nozzle Pressure	Tons	3.5
	Nozzle injection distance	Mm	250
	Temperature control	Zone	4
	Clamping force	Tons	90
	Available Mould size	Mm	400x400
	Minimum Available mold thinness	Mm	50
	Maximum Mold height	Mm	200
Hydraulic System	Maximum pressure	Kgf/cm2	140
	Oil pump Capacity	Cc/rev	53
	Motor	Kw	11(15hp)
	Heating power	Kw	5.6
	Total loading power	Kw	16.5
	Machine size	M	1.7x1.3x2.8





• Machine delivery time:

Within 20 days after confirm deposit;





• Delivery term:

as per request: Exwork, FOB, CIF for your option;
