Product Main

Quick Details

Application: Industrial
Rated Voltage: 3.3V
Grounding: to SD
Type: IC Test Socket
Brand Name: HMILU
Place of Origin: China (Mainland)
Model Number: eMMC153/169 pogo pin test socket
Pin Pitch: 0.5mm
Apply to eMMC thickness: 0.8mm to 1.5mm

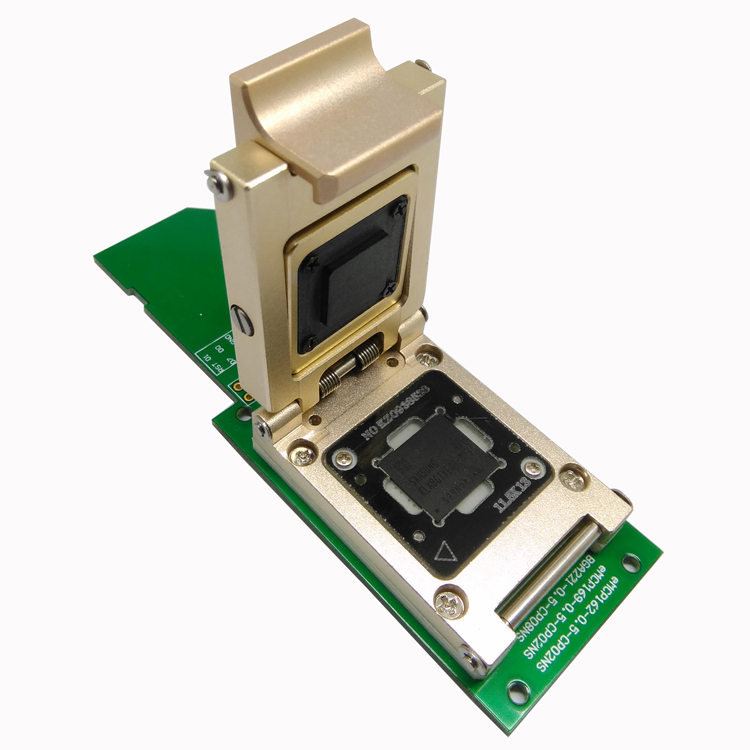

Structure: Clamshell

Specifications

EMMC153 BGA169 alloy SD interface smart digital device GPS device flash memory data recovery burn-in test programming code

(Long probe life!!!)

Product introduction

Product use:EMMC169/153, test block, the IC chip test, read and write

Test method

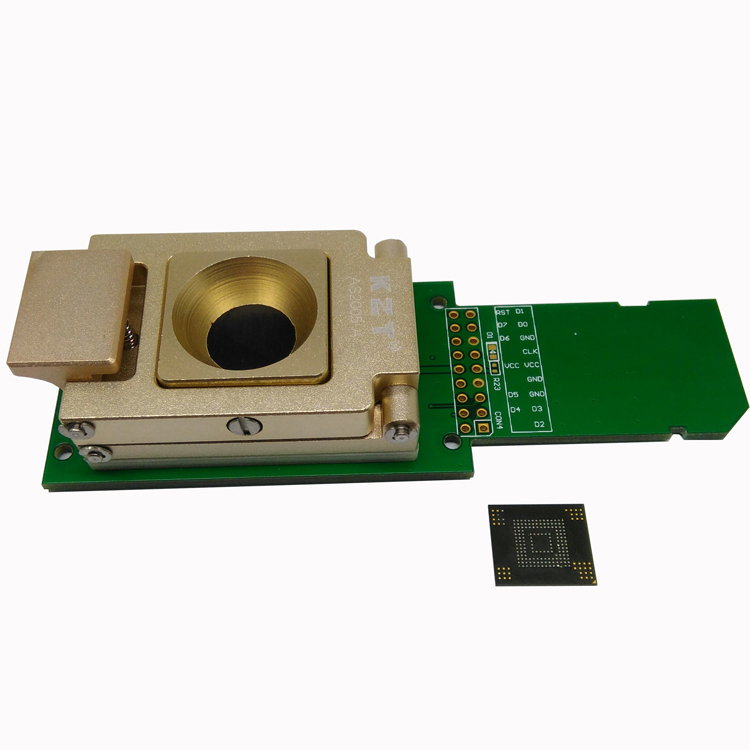

1. Select and IC match the limit frame, the IC according to the direction of the flat into the SOCKET

2.According to the direction of inserted into the free SD interface, connect the computer programmer or the corresponding test, burning



Applicable package: EMMC169/153Pin spacing 0.5mm

Test stand:EMMC169/153-0.5

Characteristics:

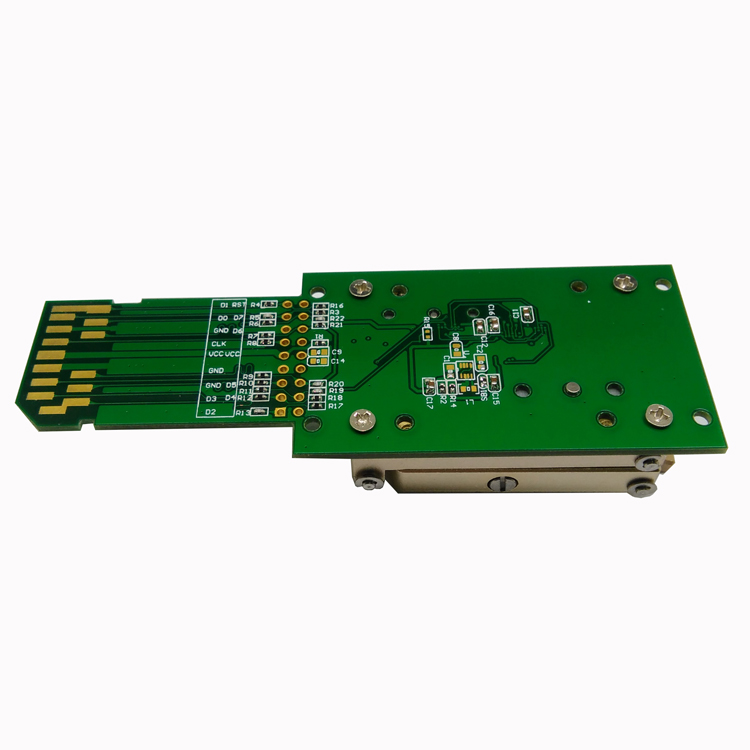

1, using the standard SD interface mode, by reading card device and a computer connection or through a programmer SD interface connected to the test or burn, etc. the corresponding operation

2, compatible with the ball without the ball test, IC limit frame using a mold, can be selected according to IC different size limit frame for replacement, to achieve different sizes IC can pass

3, support hot plug, supported by the SD interface or through the pin connection and PIN connection board corresponding test

4, the structure of the injection molding, positioning precision, take and put IC convenient, higher efficiency

Specification size

Model: EMMC169/153-0.5

Pin spacing (mm):0.5

Pin number: 30

Chip size: 12*16mm 12*18mm 14*18mm 11.5*13mm
