| Type: | Filling Machine |
|---|---|
| Brand Name: | Dongtai |
| Packaging Material: | Plastic,Wood |
| Packaging Type: | Bags |
| Application: | Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE,ISO |
| Weight: | 540kg |
| Dimension(L*W*H): | 1320*950*1360mm |
| Model Number: | DT-4230 |
| Place of Origin: | China (Mainland) |
| Power: | 2.2kw |
| Voltage: | 220V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
Quick Details
Specifications
Introduction:

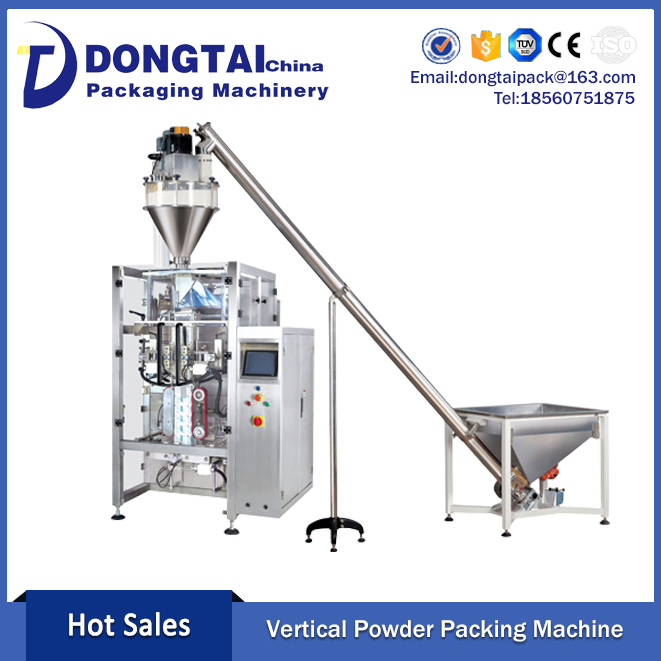

the usage of packaging range: suitable for packing powder, milk powder, soy flour, wheat flour, and all other powder.
Technical points:
1. English and Chinese screen display, operation is simple.
2. PLC computer system, stable function, adjust any parameters no need to stop machine.
3. It can stock ten dispose, simple to change variety.
4. Sever motor drawing film, position accurately.
5. Temperature independent control system, precision get to ±1℃.
6. Horizontal & vertical sealing temperature control, suitable for various of mix film, PE film packing material.
7. Packing type diversification, pillow sealing, standing type,punching etc.
8. Bag–making, sealing, packing, print date in one operation.
9. Work circumstance quiet, low noise.
Specification
Type DBIV-4230
Bag length 80-300mm(L)
Bag width 50-200mm(W)
Max width of roll film 420mm
Packing speed 5-60bags/min
Measuring range 150-1200ml
Air consumption 0.65mpa
Gas consumption 0.3m3/min
Power voltage 220V
Power 2.2KW
Dimension (L)1320mm×(W)950mm×(H)1360mm
Deadweight of machine 540Kg
