| Certification: | CE |
|---|---|
| Brand Name: | YIZHOULASER |
| Condition: | New |
| Applicable Material: | fabric,leather,non-metal materials |
| Graphic Format Supported: | plt,ai,bmp,hpgl.dxf |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1year |
| Weight: | 1200KGS |
| Dimension(L*W*H): | 2.2*3.15*1.3m |
| Power(W): | 10KW |
| Voltage: | 380V/50/60HZ |
| Model Number: | Y1625 |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 50Sets/Month |
| Automatic Grade: | Automatic |
| Application: | all kinds of ono-metal materials |
Quick Details
Specifications

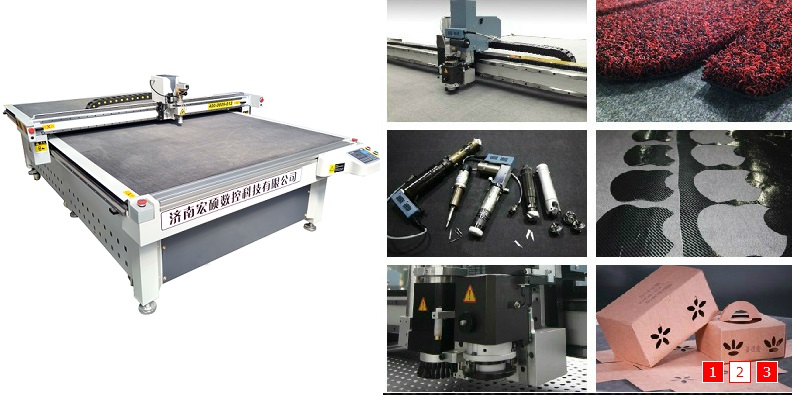

Vibrating Knife Cutting Machine
Oscillating Knife Cutting Machine Soft Materials Cutting Solutions
MACHINE DETAILS
Oscillating Knife Cutting Machine Soft Materials Cutting Solutions
Apparel and Fashion|Luggage and Handbag|Sofa&Furniture|Interior Decorations
Applicable for shoes making industry, apparel and fashion cloth industry,automotive interior industry, luggage industry,package industry,decoration industry,electronic industry,composite materials industry etc
APPLICATION MATERIALSApplicable for fabric,knitting vamps, non-woven, leather, rexine, cotton, felt, silk, lace, polyester, fleece, softshell,jeans,alcantara,neoprene, Corrugated board, cardboard, white board, gray board, sticker, PVC film, foam board, artificial leather, leather, gasket, sponge, Prepreg, fabric, acrylic, honeycomb board, fiberboard, epoxy resin board, organic glass, car mat, fiber, composite material and other soft materials, etc
PARAMETERSModel |
YZ1625F |
Working size |
1600*2500mm |
Price |
FOB QINGDAO |
Max.Cutting thickness |
30mm |
Characteristic |
Computer operation,data transmission fast |
Cutting speed |
0-1200mm/s |
Motor and driver |
FUJI digital servo motor and driver |
Oscillating Knife frenquency |
18000 rotate/min |
Drawing pen type |
Gel pen, mark pen, ball pen, silver pen |
Knife property |
8 different types of cutting property, half cutting, complete cutting settings |
Material fixing method |
Intelligent divisional vacuum absorption |
Machine resolution |
0.025mm |
Software resolution |
0.025mm |
Transmission interface |
RJ45 Ethernet port |
Gearing |
PMI Linear guide and gear rack |
Memory |
8MB |
Software program |
HP-GL and GP-GL drive language |
HMI |
Resistive touch screen |
Voltage/ Frequency |
AC220V±22V\50±1Hz |
Air pump voltage |
AC380V±38V\50±1Hz or 220V optional |
Air pump power |
380V 9KW or 220V 2.2KW*4KW |
Packing size |
2.2*3.15*1.3m |
Weight |
1500KGS |
Package |
Standard wooden case for export |
