Gender: | male/female |
---|---|
Application: | PCB |
Type: | Adapter |
Brand Name: | Eshine,JAE,JST Molex,AMP,TE,Civilux,Tyco,Digikey |
Color: | Black,White,transparent,natural |
Model Number: | ES1005 |
Place of Origin: | China (Mainland) |
Place of Origin: | China (Mainland) |
Brand Name: | Eshine,JST |
Model Number: | JST |
Pitch: | 1.0mm |
Color: | Natural white |
Rows: | single,dual |
Contact: | SMD,DIP |
Quick Details
Specifications

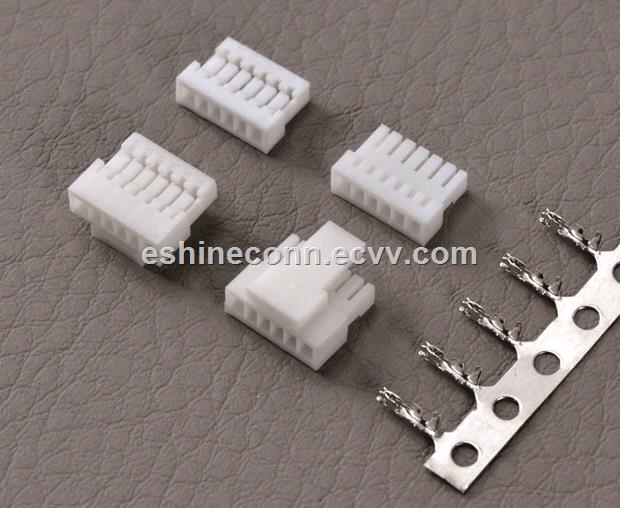

JST NSH 1.0mm Pitch Wire to Board Crimp Style Connectors with Secure Lock for Medical Equipment
Name |
JST NSH 1.0mm connector |
Application |
Printed Circuit boards, wire to boards |
Connector |
NSH with lock connector |
Circuits/poles/pins |
2~20 |
Pitch |
1.0mm,0.039 Inch |
Certificate |
ROHS, UL,HF |
Wire to board crimp style,
with secure locking device,
Disconnectable type
They can be equal JST, Molex, Digikey,CVILUX,JAE, JWT ect famous parts.
Specifications:
Housing,receptacle,socket |
Equivalent of JST NSHR-(02~15)V-S |
Contact |
SSHL-003T-P0.2 Tin plated, Reel package |
Shrouded Header/wafer |
Top entry, Side entry |
Number of Rows |
Single row |
Current rating |
1.0A AC,DC |
Voltage rating |
50V,AC,DC |
Wire range |
AWG32-28 |
Application:
Medical equipment,Notebook PC, Televisions, Robotics, PCB assemblies, Computers, LCD, Digital Camera, PAD, LED lamp, Scanner, BT alarm button, taximeter, Fingerprint Machine, power source for electronic communication, Business machine, Telecommunications, Home appliances, Cell phone, Security systems, Car, ATM Machines, Inkjet, MFP/LBP, Projector, RAILWAYPRODS, etc. Industrial.
