| Dimensions: | no |
|---|---|
| Technique: | no |
| Surface Treatment: | no |
| Application: | produce fiberglass pipe |
| Brand Name: | ZS |
Quick Details
Specifications

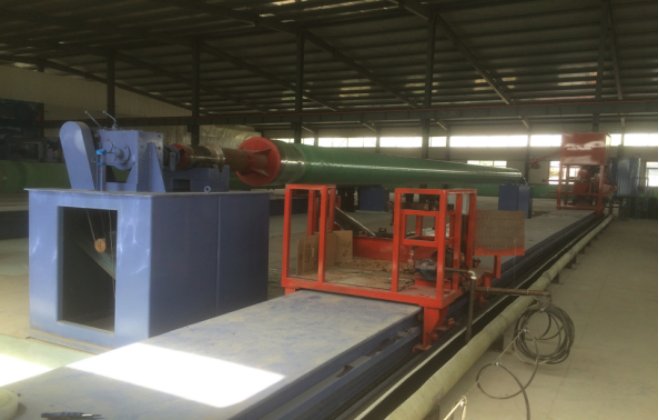

FRP pipe winding machine,grp pipe filament winding machine,CNC winding machine,pipe making machine
FRP pipe winding machine sepcification:
1.Computer control
2.Easy control.
3.Factory directly supply
4.Pipe winding diameter customized
FRP winding machine Performance feature
Feature: the great advantages are simple control on producing techniques, better working atmosphere, stable pipe quality, adjustable pipe length, easier to change specifications, more convenient operation, etc.
|
FWJS-1500 |
FWJS-2600 |
FWJS-3000 | |||
Pipe diameter(mm) |
DN300-DN1500 |
DN300-DN2600 |
DN300-DN3000 | |||
Production length(mm) |
≤12300 |
≤12300 |
≤12300 | |||
Winding angle range |
45°-90° |
45°-90° |
45°-90° | |||
the way of adding sand |
both dry and wet |
both dry and wet |
both dry and wet | |||
Max thickness of adding sand a time(mm) |
≤20 |
≤20 |
≤20 | |||
Rotating speed of main shaft(r/min) |
≤85 |
≤85 |
≤85 | |||
Max speed of pulling yarn(m/min) |
≤120 |
≤120 |
≤120 | |||
Production capacity(kg/h) |
1800 |
2300 |
3200 | |||
Total installed capacity(KW) |
110 |
120 |
120 | |||
Areas covered by production line(length×width)m |
54x24 |
60x24 |
60x24 |
