| Application: | Laser Engraving |
|---|---|
| Certification: | CE,FDA |
| Brand Name: | Founder Laser |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 80*50*25cm |
| Model Number: | FD-K40 |
| Place of Origin: | China (Mainland) |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Engraving Speed: | 500mm/s |
| Engraving Area: | 300*200mm |
| Laser Type: | CO2 |
| type: | mini laser engraving machine |
| laser power: | 40W |
| up-down table: | 50mm |
| supply voltage: | 110V 60HZ/220V 50HZ |
| working table: | aluminum plate |
| cutting thickness: | 1-10mm(based on different materials) |
| data transfer interface: | USB |
| control configuration: | mini DSP |
| water protection and alarm: | support |
Quick Details
Specifications
Specifications
Type |
Mini laser engraving machine |
Model |
FL-K40 |
Laser Power |
40W |
up and down table |
with(7 cm) |
Supply Voltage |
110/220V±10%,50/60Hz |
Working Size |
200x300mm |
Working table |
Aluminum plate |
Cutting thickness |
0-10mm(based on different kinds of material) |
Data transfer Interface |
USB |
Control configuration |
MINI DSP |
Max engraving speed |
500mm/s |
Max cutting speed |
100mm/s |
System environment |
WINDOWS XP/VISTA/7/8 |
Offline working |
Support |
256 color separation output |
Support |
360 degree slope engraving |
Support |
Cooling way |
Water cooling |
Water protecting sensor and alarm |
Yes |
Operating temperature |
5℃-35℃ |
Applicable materials |
Rubber,silicone,acrylic,wood,plastic,leather,coated metal,etc. |
Net/Packaging weight |
35 kg/50 kg |
Package |
Wood case |
Machine/Packing dimension |
810x510x260mm/880x580x420mm |
Warranty |
One year |
Spare parts |
Water pump,air pump,exhaust fan,smoke pipe,software CD,cables,wrench,user manual and accessory bag |
Machine color |
Optional |

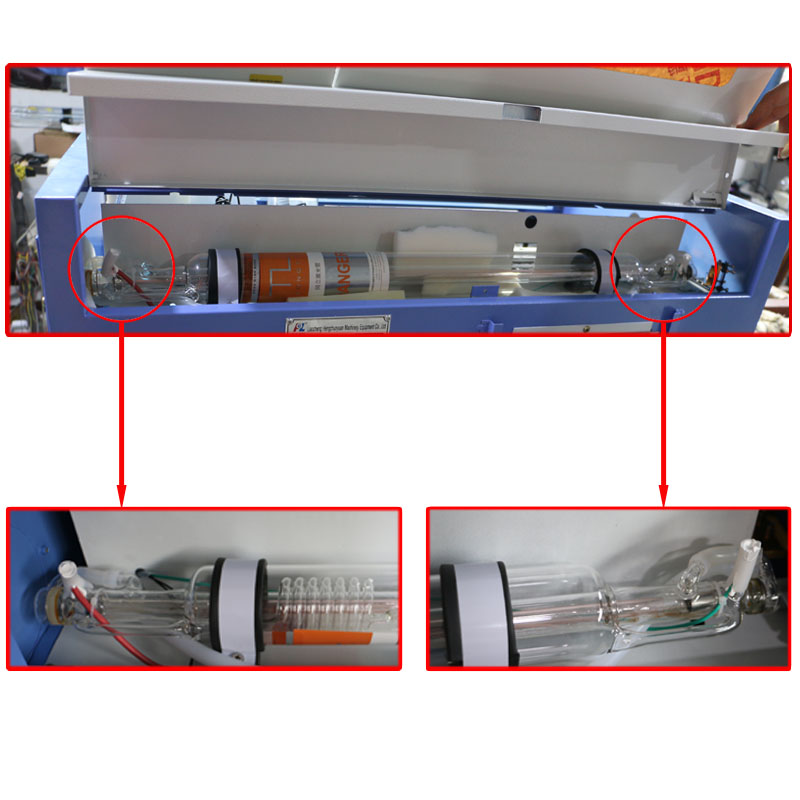

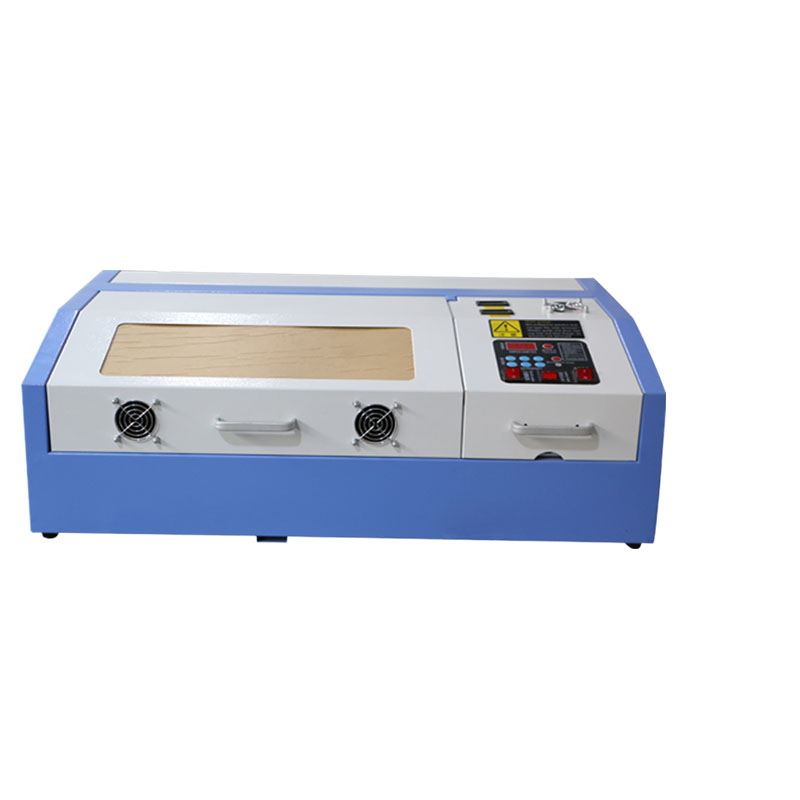

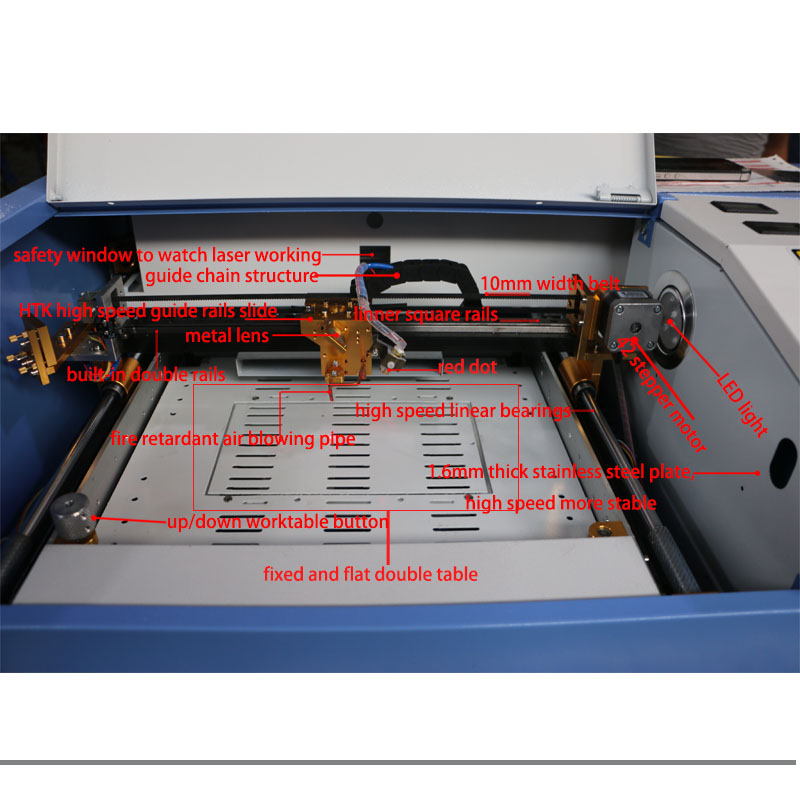

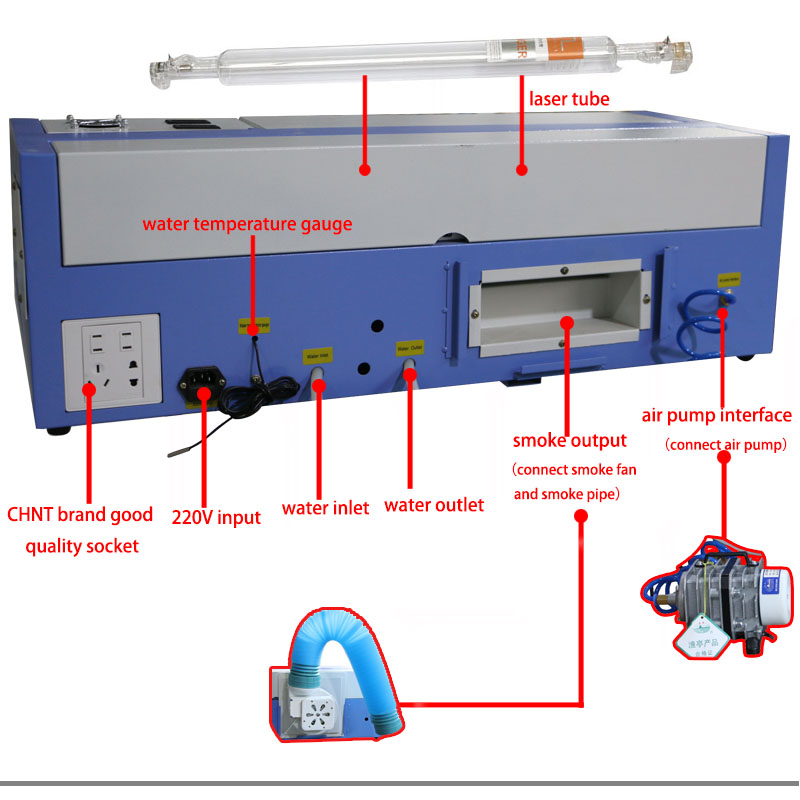

Machine images
Samples
