| Gender: | Female |
|---|---|
| Application: | Automotive |
| Type: | Adapter |
| Brand Name: | Eshine,JST,AMP,Civilux,HR |
| Color: | White |
| Model Number: | ES6350 |
| Place of Origin: | China (Mainland) |
| Pitch: | 6.35mm |
| Poles: | 1-24 |
| Gender: | male and female |
| Pin finish: | Tin plated |
Quick Details
Specifications

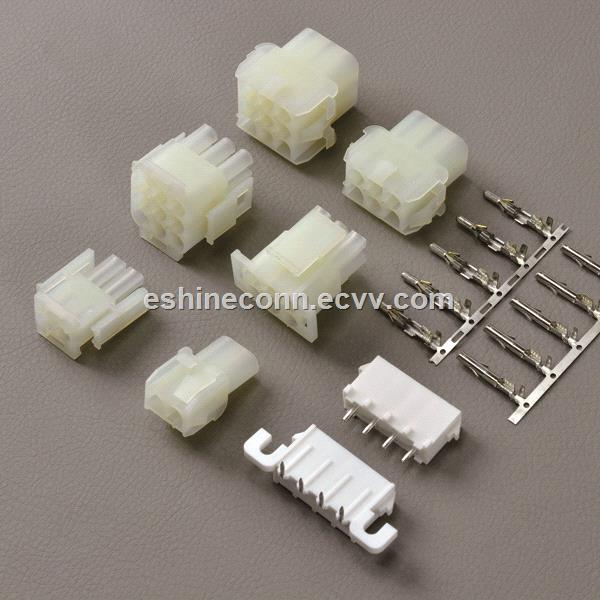

Car Connector Wire to wire crimp type, can be equal JST,6.35mm pitch Rohs,HF
Name |
TE JST 6.35 male and female connector |
Application |
Power, Wire-to-Wire, PCB |
Connector |
Tyco JST YL Receptacle and plug |
Circuits/poles/pins |
1~24 |
Pitch |
6.35mm |
Certificate |
ROHS, UL,HF |
-the Retainer features added protection against non-insertion of disconnection.
-with Lances lock, panel lock, inner lock, retainer prevents accidental disconnection
-Housine Lance
- Inner-housing lock
- Panel lock construction
They can be replacing JST, Molex, Yeonho, Civilux, JAE, AMP, TYCO, Hirose, Samtech ect famous parts.
Specifications:
Housing |
Replacementof JST YL male plug 1x2;1-480698,1x3p:1-480700,1x5p 350809-1,Receptacle Socket 2p:AMP 1-480699-0,TE 1-0480705-0,Tyco 1-0480704-0 |
Crimp terminal |
Pin contact 350218-1,926883-1,350536 tin plated |
Pitch Centerline |
6.35mm |
Circuits/poles/pins |
1~24 |
Number of Rows |
Single,dual,three |
Current rating |
3A AC,DC |
Voltage rating |
250V,AC,DC |
Wire range |
AWG18~22 |
Application:
Automotive: Car, Alarm systems, car audio
Medical: Front panel displays, Patient monitor, measuring equipment, surgical systems, Dental equipment Data/communications: Disk drives and Networking field Etc.
Industrial: LED light,Robotics, process controls
If you can't find the part number here, please contact us or send your
Drawing or part number.
Eshine can also refer you to a number of excellent harness assembly Suppliers for your more specialized needs. Just advise info below or send your Diagram.
Type connector:
Wire Specs: AWG
UL Style:
Other end:
Assembly connector
Completer strip/Tin plate:
Semi Strip/Tin plate:
OEM orders are welcomed!
