Quick Details

Brand Name: SAFE HI-TEC
Properties: security x-ray machine
Size: 500*300mm
Thickness: 20mm
Power Supply: 220V, 50HZ
Place of Origin: China (Mainland)
Model Number: SA5030A
Material: PCB,STEEL
Dimension: 131*84*138cm
Type: fixed with wheel
size: 500*300mm
Tunnel size: 500*300mm
conveyor max load: 100kgs
conveyor height: 663mm
Resolution: <0.101mm Metal Wire
Penetration: 8-10mm steel
x-ray generator: 80kv

Specifications

Monoenergy x-ray inspection machine for parcel baggage,shoes,toy metal detector

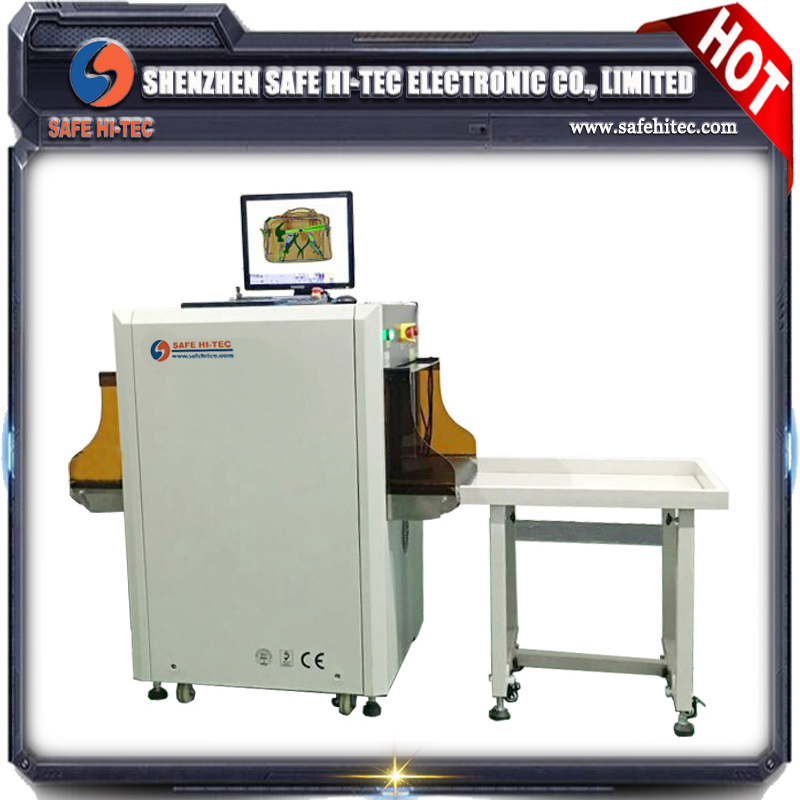

Baggage XRay Detector Machine Supplier for Metal Detecting SA5030A
Main Advantages:

  Economic cost for x-ray security scanner
 One key turn on and easy for installation
 Several pseudo color scanning image type
 Standard penetration in 10mm steel


Technical details:

  Tunnel Size: 500(W)*300(H)mm
  Conveyor Speed: 0.22m/s
  Conveyor Max Load: 100kg
  Dose per Inspection: <2.9 Gy/h
  Resolution: <0.101mm Metal Wire
  Penetration: 8-10mm Steel
  Film Safety: Guarantee ISO1600 Film
  X-ray Leakage: <0.2 Gy/h (at a distance of 5cm from external housing)
  X-ray Generator of parcel scanners:
  Generate direct: Upward
  Generate angle: 80 degree
  Anode Voltage: 80Kv
  Anode power: 0.4 to 0.5mA
  Cooling / Duty Cycle: Oil Cooling /100%
  Image System of x-ray security detector:
  X-ray Sensor: L-Shaped Photodiode Array (monoenergetic), 12bit Deep
  Monitor: High Resolution Color, LCD Accord, 17 inch
  Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
  Image Grey Level: 4096
  Image Max Resolution: 1024 * 1280 pixel
  Image Processing: 24bit for processing real time
  Image storage: Storage 60000 pictures in real time
  Zoom: 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
  Installation Data of x-ray scanner machine:
  Operation temperature/Humidity: 0-45o C/20%-95%(non-condensing)
  Storage Temperature/Humidity: -20o C-60o C/20%-95%(non-condensing)
  Operation Power: 220VAC( 10%)50 3Hz
  Power Consumption: 1.0 KW (max), 0.3KW(working)
  Noise: <65dB

Our Factory:

  Loacated in Shenzhen, professional in producing security system for more than 10 years.
 Specialized in producing x-ray screening system, walk through metal detector, handheld metal detector, under vehicle surveillance system, handheld metal detector
 and liquid scanner, explosive trace detector, explosive disposal device.Etc



Certificates:

  ISO 1900, ISO 1400, OHSAS 1800,  CE, US FDA.Etc
