Product Main

Quick Details

Brand Name: SAFE HI-TEC
weight: 15KGS
SIZE: 86*65*50CM
Model Number: HD600
Place of Origin: China (Mainland)

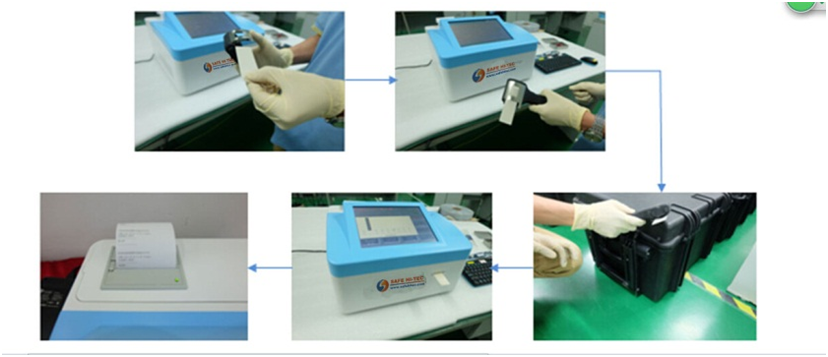

Sampling way: swabbing surface
detecting objects: cloths,bag,wearing on body
alarming way: sounds and lights
result reading: screen and can print it out
mode switch: explosive or narcotis trace detector


1. Highlight Advantages of explosive trace detection:
Benchtop Explosive Trace Detector HD600
*High sensitivity: Can detect at least 100 Nanogram black powder, including fireworks and civil homemade explosives
*High speed Indentify
*VUV lamp soft ionization technique, non-radioactive
*Advanced migration tube design ensures high resolution;
*Automatic cleaning system can prevent inject pollution.
*Renewable gas purification system
*Database open to user, can add new type explosive
*10 inch TFT color touch screen
*Built-in printer to print test result at any time.
*Dipstick can be reused
*Support network control and transfer
*Unlimited Storage, USB port to output data.

2. Data Sheet of explosive detector:

*SourceVacuum Ultra Violet ionization source.
*Explosives indentifyA variety of military, civilian, and homemade explosives: Black Powder, AN, TNT, DNT, Tetry, PETN, Gun Power, NG, RDX, fireworks, C4 etc.
*Sampling dipstick tracking trace particles
*Databasesopen to user, can add new type explosive
*AlarmSound / light
*SensitivityMix: Nanogram explosives, even pictogram sulfur
*Identify speed< 8 seconds
*Warm-up time< 20 minutes
*False alarm rate≤ 1%
*Display10 inch TFT color touch screen
*Consumption< 300W
*PowerAC220V 50Hz
*Operating temperature-10° C ~ 55° C
*Size380 mm(W)× 400 mm(L)× 180 mm(H)
*Net weight<15KG

3. Application of explosive detector:

*Airport, Train Station, Coach Station, etc.
*Defence Security
*Public Safety
Benchtop Explosive Trace Detector HD600
