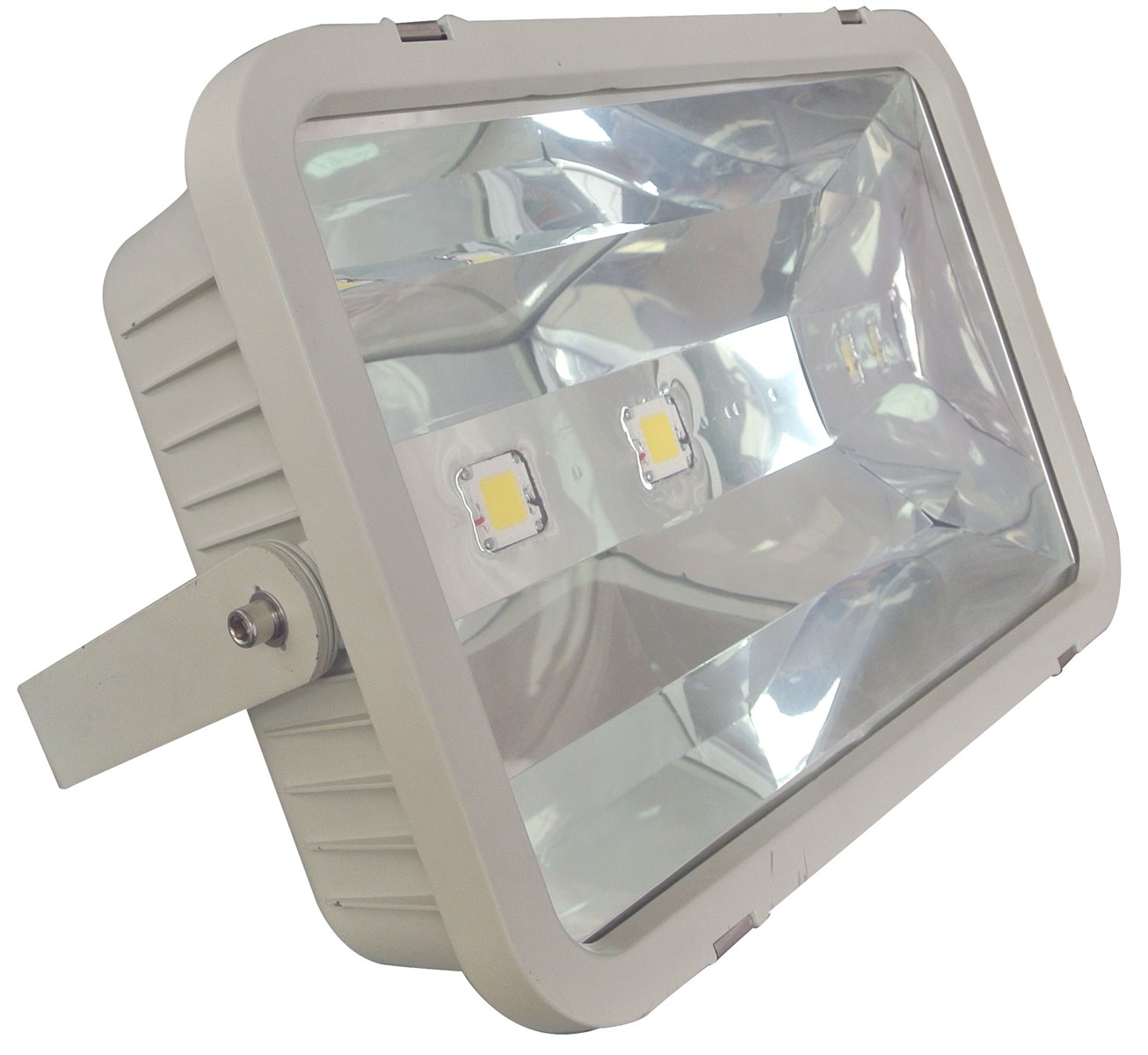

| Item Type: | Spotlights |
|---|---|
| Light Source: | LED |
| Certification: | CCC,CE,EMC,ETL,LVD,RoHS |
| Working Lifetime(Hour): | 70000 |
| Lamp Power(W): | 160 |
| Input Voltage(V): | 90~305 |
| LED Light Source: | led light |
| Model Number: | QC-FL117-B-I |
| Brand Name: | QICEHN |
| Place of Origin: | China (Mainland) |
| Base Type: | E27 |
| Lamp Body Material: | Aluminum Alloy |
| Working Temperature(℃): | |
| Color Temperature(CCT): | Pure White |
| CRI (Ra>): | 75 |
| Lamp Luminous Efficiency(lm/w): | 140 |
| Lamp Luminous Flux(lm): | 22400 |
| Warranty(Years): | 5 |
Quick Details
Specifications
Protection grade: IP65
AntiCorrosion grade: WF2
Insulation grade: I
Power factor: 0.96
Voltage range: AC85~260V/50Hz
External size (mm): L520*W350*H260
Scopes of application:
It is applicable for tunnels, corridors, civil air defence projects, workshops, large warehouses, petrol stations, stadiums, metallurgical industries and all kinds of factories, construction sites etc.
Features:
Adopting high-purity die-casting aluminum material, with the thickness of the shell reaChing 3mm;
It is a suspended structure between the shade and the electrical box with air flow, good heat dissipation;
Adopting high-strength silicone rubber sealing ring and pure copper nickel plating waterproof connector, fully sealed and can be washed by spaying water directly without cutting off the power;
Reflector adopts 99.95% high purity aluminum sheet, with light efficiency reaching 89%. Light source is ETI/ceramic FCOB LED, with light efficiency reaching 126lm/W.
Adopting high transparency toughened glass, with light transmittance 30% higher than normal ones. Anti-glare toughened glass is optional;A variety of installation methods can be used, ceiling mount, upright pole, wall type etc.Equipping with dedicated holder for tunnel installation, the light angle can be adjusted within 20 degreeAccording to the needs;
