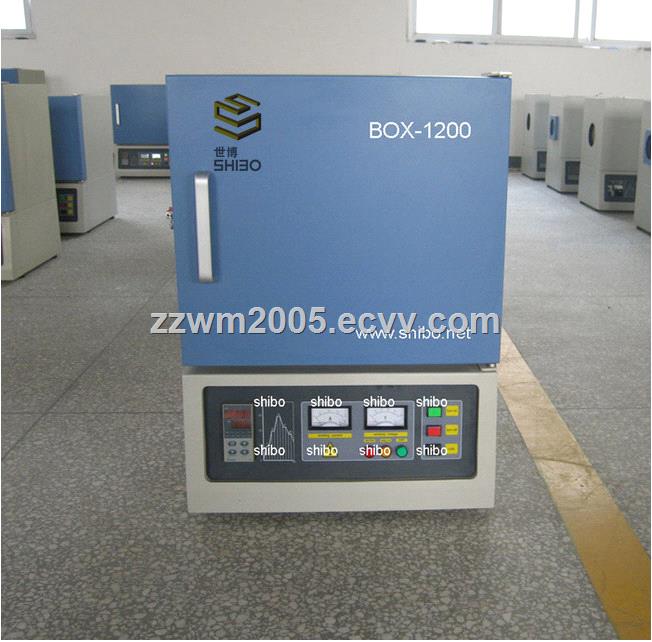

BOX-1200 lab furnace uses imported resistance wires as heating element, adopting 50segments programme to control the temperature. the chamber is used polycrystalline alumina fiber. Double shell structure with air cooling system ensuring the furnace rise and cool quickly;

Main features:

1. the furnace uses high quality polycrystalline alumina fiber as chamber material, saving energy, small volume, fast temperature rising and cooling.

2. Three sides or more sides of high quality heating resistance wire OCr27Al7Mo2 to keep the temperature uniform, and maximum temperature up to 1200C

3. Side open door, when the door is open, the power cut off automatically;

4. over-temperature alarm and power failure, leakage protection, safe and easy operation.

5. CE certified



Standard chamber size:

100x100x100mm

150x150x160mm

150x150x200mm

200x200x200mm

200x200x300mm

200x200x250mm

300x300x300mm

300x300x400mm

Customized size is available..

Technical parameters:

Heating elements: high quality OCr27Al7Mo2 resistance wire

Working temperature: 1100C

Max.Temperature: 1200C

Temperature control: intelligent auto-control with 708P temperature controller, 50segments         programme

Temperature accuracy: +/-1C

Thermocouple: K or S type

Voltage: AC220V(or customized AC380V), 50/60Hz



Main application:

Dental, university, science research institution, mining industry to do powder sintering, quality inspection.
