| Type: | Cat 6 |
|---|---|
| Brand Name: | htfuture |
| Application: | c++ |
| Color: | white |
| Model Number: | ht45512 |
| Place of Origin: | China (Mainland) |
| color: | white |
| power: | 220v |
Quick Details
Specifications
Features
L Wide input power range
L Output power tunable
L Low NF
L RS-232/SNMP network interface
L Low INF
L Remote monitor
L Dual power supply

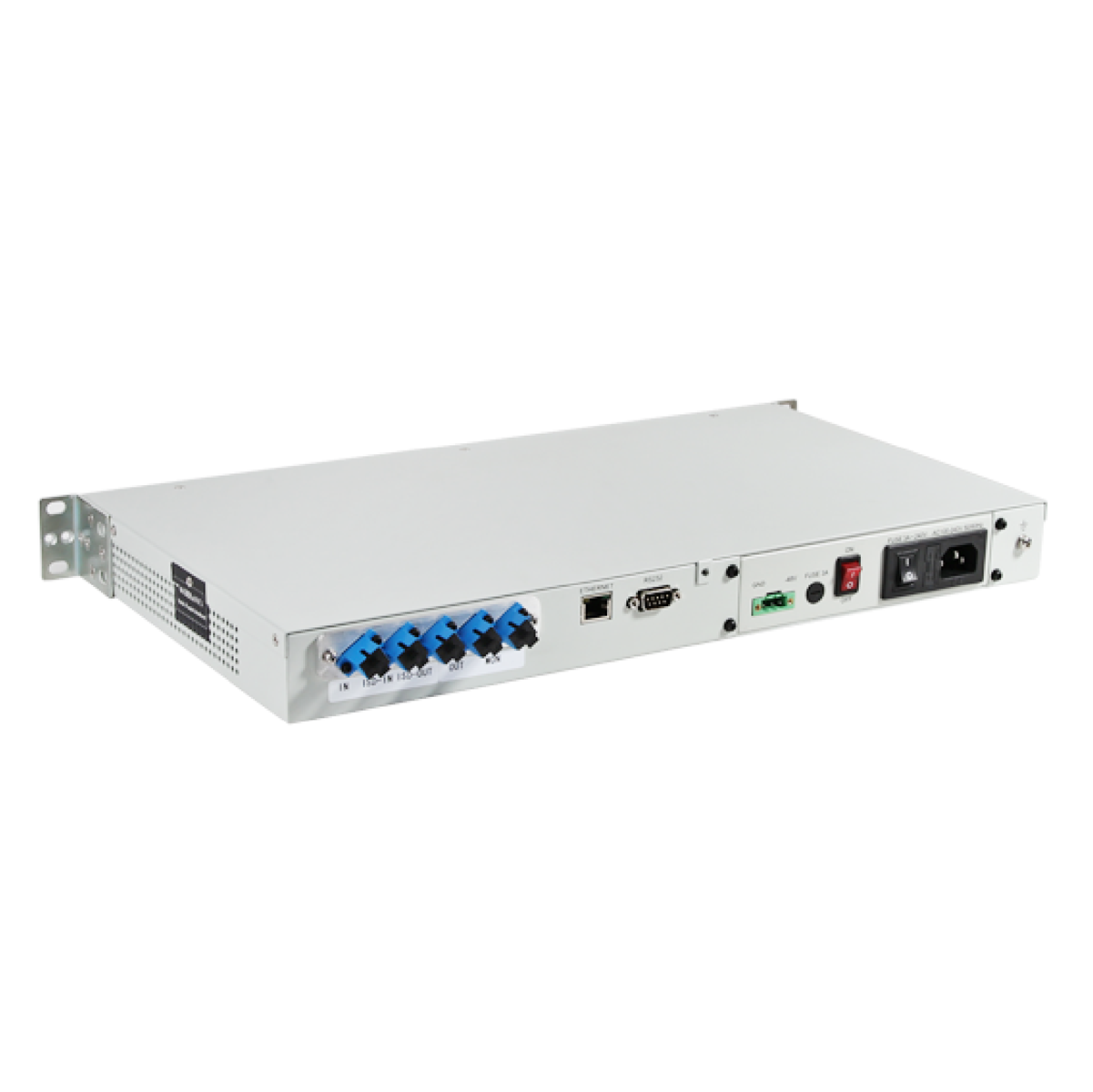

Booster Amplifier
Parameter |
Min |
Typ |
Max |
Unit | |
Operating Wavelength |
1530 |
1550 |
1565 |
nm | |
Input Power |
2.5G or below |
-6 |
4 |
dBm | |
10G |
-10 |
4 | |||
Output Power |
19 |
dBm | |||
Output Tunable Range |
6 |
dB | |||
Noise Figure |
5 |
dB | |||
Input/Output Isolation |
30 |
dB | |||
Input/Output Return Loss |
45 |
dB | |||
Pre-Amplifier(with OTF or Fixed Filter)
Parameter |
Min |
Typ |
Max |
Unit | |
Operating Wavelength |
Tunable filter |
1530 |
1560 |
nm | |
Fixed filter |
1550.12 |
||||
Input Power(Affected by the rate) |
-47 |
-15 |
dBm | ||
Output Power |
-7 |
0 |
dBm | ||
Output Tunable Range |
6 |
dB | |||
Noise Figure |
4.5 |
dB | |||
Input/Output Isolation |
30 |
dB | |||
Input/Output Return Loss |
45 |
dB | |||
