| Brand Name: | Success Engine |
|---|---|
| Lubrication Style: | Oil-free |
| Configuration: | Stationary |
| Type: | Screw |
| Condition: | New |
| After-sales Service Provided: | Overseas third-party support available |
| Warranty: | 1 year |
| Certification: | CE,ASME,ISO,UL |
| Weight: | 580 |
| Dimension(L*W*H): | 1060*800*1020mm |
| Voltage: | 380V/3P/50Hz(Voltage can be customized) |
| Model Number: | ZW7A |
| Place of Origin: | China (Mainland) |
| Power Source: | AC Power |
Quick Details
Specifications
"SUCCESS ENGINE" Water Lubricant Oil-Free Screw Air Compressor
ZW series oil free air compressor is widely used in electric power, aerospace, chemical, textile, electronics, medicine, water, food, bottle cap, laboratory and other high-end industries and special technical requirements of the field. The main structure of stainless steel by single screw compressor, lubricating medium with water meets the drinking water standards,and with high performance stainless steel components, the entire compression system does not have any lubricating oil composition, thus, the output of compressed air is absolutely pure without oil!
1. Oil-Free Screw Air Compressor Technical Data
2. Oil-Free Screw Air Compressor Core Components
Oil-Free Screw Air Compressor Factory
Oil-Free Screw Air Compressor Certificate
ZW series oil free air compressor is widely used in electric power, aerospace, chemical, textile, electronics, medicine, water, food, bottle cap, laboratory and other high-end industries and special technical requirements of the field. The main structure of stainless steel by single screw compressor, lubricating medium with water meets the drinking water standards,and with high performance stainless steel components, the entire compression system does not have any lubricating oil composition, thus, the output of compressed air is absolutely pure without oil!
1. Oil-Free Screw Air Compressor Technical Data
Model |
ZW7A-7/10 |
Note |
Free air delivery (M3/min) |
1.2/0.9 |
|
Max Working pressure (bar) |
7/10 |
|
Power (kW) |
7.5 |
10HP |
Cooling method |
Air Cooling |
|
Voltage (V/P/Hz) |
380V/3P/50Hz |
Voltage can be customized |
Protection Degree |
TEFC, IP55 |
|
Motor Efficiency |
95% |
|
Service Factor(Motor) |
SF=1.15 |
|
Drive Method |
Coupling |
|
Control System |
PLC |
|
WaterSOfteningEquipment |
Yes |
|
Discharge Temperature |
Ambient temp+8～10℃ |
|
Compressed air control method |
Automatic(0-100%) |
|
Noise level dB(A) |
66 |
|
Connection (mm) |
Rp 3/4 |
|
Dimensions (L×W×H) mm |
1060x800x1020 |
|
Weight (Kg) |
540 |
|
(FAD is measured in accordance with ISO 1217) | ||

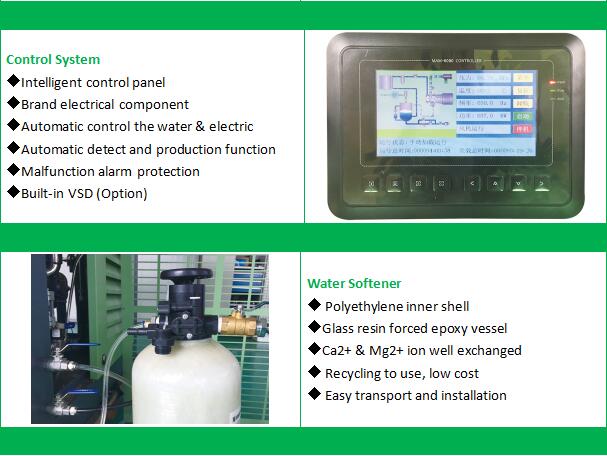

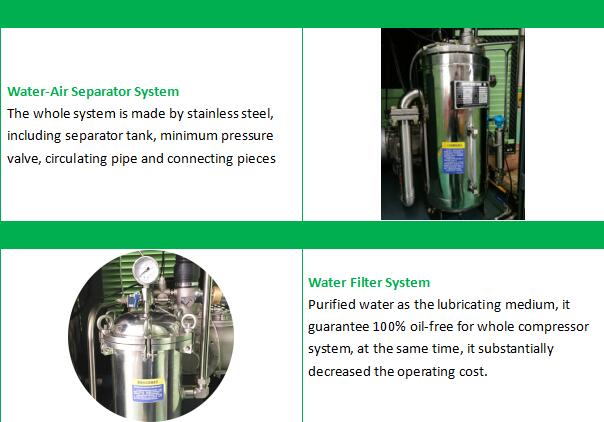

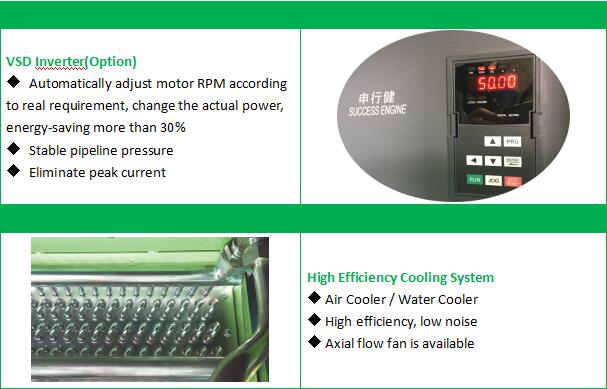

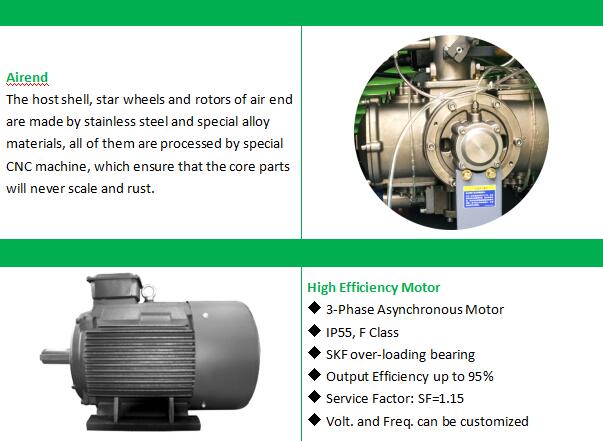

2. Oil-Free Screw Air Compressor Core Components
Oil-Free Screw Air Compressor Factory
Oil-Free Screw Air Compressor Certificate
