| Brand Name: | SUCCESS ENGINE |
|---|---|
| Lubrication Style: | Lubricated |
| Configuration: | Stationary |
| Type: | Screw |
| Condition: | New |
| After-sales Service Provided: | Overseas third-party support available |
| Warranty: | 1year |
| Certification: | ISO,CE,ASME,UL |
| Weight: | 220-250kg |
| Dimension(L*W*H): | 1460x620x1426mm |
| Voltage: | 380V/3P/50Hz(Voltage can be customized) |
| Model Number: | SEC4A-SEC11A |
| Place of Origin: | China (Mainland) |
| Power Source: | AC Power |
Quick Details
Specifications

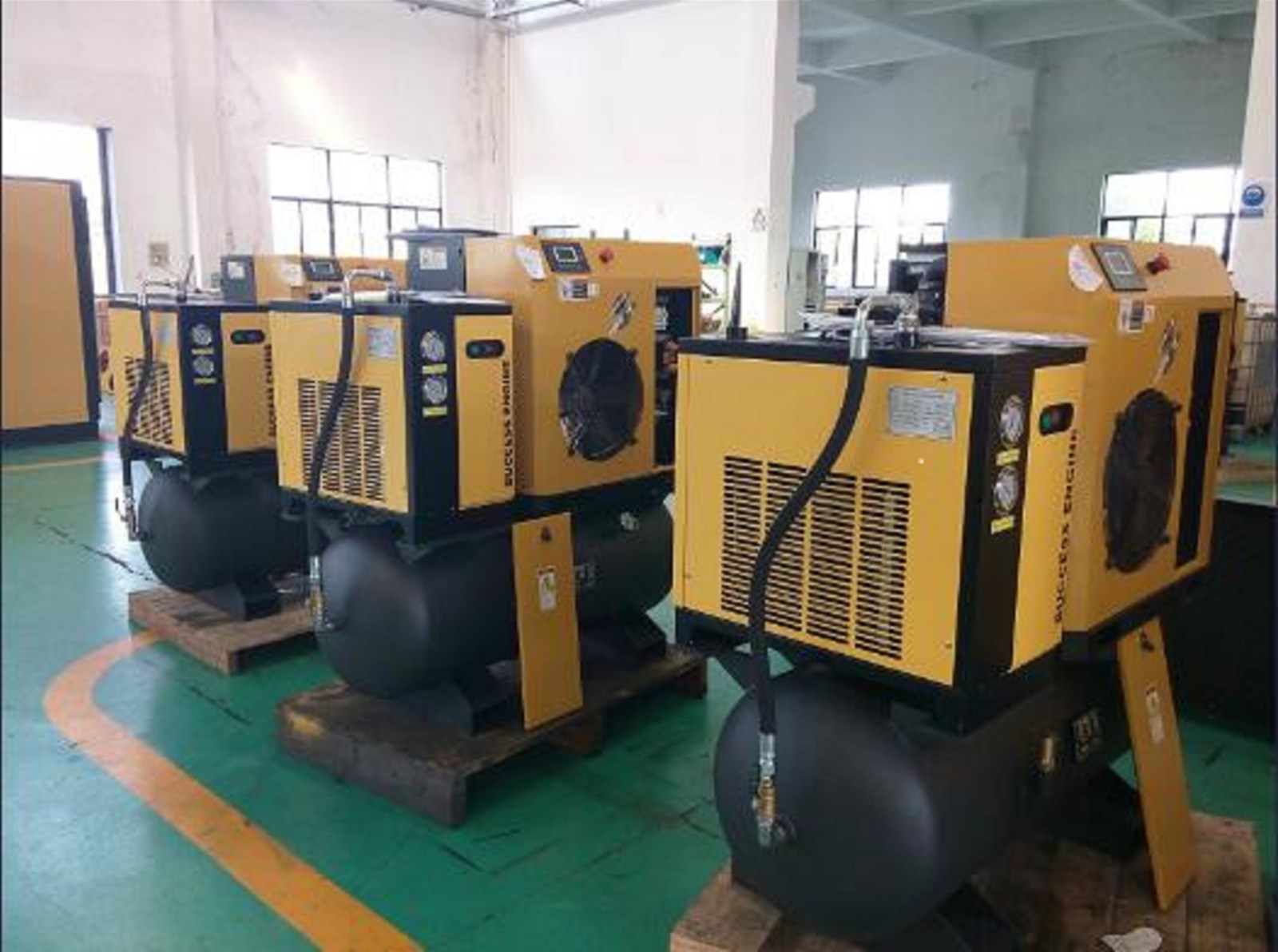

Integrated Packaged Screw Air Compressors
Description
to simplify purchase and installation,we have launched the tank mounted screw compressors with dryer based on the design principles of high reliability,high efficiency,and easy operation.the combination of compressor,dryer and air storage tank provides this product with compact structure,low noise,easy operation,and high reliability.Only a power supply and a connecting line are needed for installation.Then,clean and stable compressor air is obtained.
as an ideal replacement for traditional piston compressor,our packaged screw compressor is suitable for used in the laboratory,spray booth,carpentry workshop,small metal processing workshop,and the small machine processing workshop.It is also applied in the vehicle maintenance field.
Technical Parameters
Service & Quality Guarantee
1. Consultation: Professional team for pre-sale consultation and the team comprises product engineer, sales engineer, installation and after service engineer, these engineers will give professional solution to your requirement.
2. Planning and Design: We provide the best design plan according the applications, air consumption, pressure, ambient working condition, compressor station space,etc.
3. Usually, we give one-year guarantee, during the time, we will provide free replacement parts by TNT, DHL or FedEx in shortest time, and the warranty period can be extended after negotiation. the accessories and service will be supplied in the next 15 years.
Package
Standard Exported Carton or Plywood box
Description
to simplify purchase and installation,we have launched the tank mounted screw compressors with dryer based on the design principles of high reliability,high efficiency,and easy operation.the combination of compressor,dryer and air storage tank provides this product with compact structure,low noise,easy operation,and high reliability.Only a power supply and a connecting line are needed for installation.Then,clean and stable compressor air is obtained.
as an ideal replacement for traditional piston compressor,our packaged screw compressor is suitable for used in the laboratory,spray booth,carpentry workshop,small metal processing workshop,and the small machine processing workshop.It is also applied in the vehicle maintenance field.
Technical Parameters
| Screw Air Compressor | ||||
| Model | SEC4A-7/8/10/13/T | SEC5A-7/8/10/13/T | SEC7A-7/8/10/13/T | SEC11A-7/8/10/13/T |
| Free air delivery(m3/min) | 0.5/0.5/0.4/0.25 | 0.8/0.8/0.63/0.5 | 1.15/1.15/1.0/0.79 | 1.80/1.80/1.50/1.20 |
| Max Working Pressure (bar) | 7/8/10/13 | 7/8/10/13 | 7/8/10/13 | 7/8/10/13 |
| Power Kw(HP) | 4(5.5) | 5.5(7.5) | 7.5(10) | 11(15) |
| Refrigeration Air Dryer | ||||
| Model | DA-08 | DA-08 | DA-14 | DA-18 |
| Capacity (m3/min) | 0.8 | 0.8 | 1.4 | 1.8 |
| Working Pressure (bar) | 7-10 | 7-10 | 7-10 | 7-10 |
| Dew Point Temp. (oC) | 2-10 | 2-10 | 2-10 | 2-10 |
| Air Receiver Tank | ||||
| Capacity (L) | 250 | 250 | 250 | 250 |
| Working Pressure (bar) | 15 | 15 | 15 | 15 |
Service & Quality Guarantee
1. Consultation: Professional team for pre-sale consultation and the team comprises product engineer, sales engineer, installation and after service engineer, these engineers will give professional solution to your requirement.
2. Planning and Design: We provide the best design plan according the applications, air consumption, pressure, ambient working condition, compressor station space,etc.
3. Usually, we give one-year guarantee, during the time, we will provide free replacement parts by TNT, DHL or FedEx in shortest time, and the warranty period can be extended after negotiation. the accessories and service will be supplied in the next 15 years.
Package
Standard Exported Carton or Plywood box
