| Brand Name: | SUCCESS ENGINE |
|---|---|
| Lubrication Style: | Lubricated |
| Configuration: | Stationary |
| Type: | Screw |
| Condition: | New |
| After-sales Service Provided: | Overseas third-party support available |
| Warranty: | 1year |
| Certification: | ISO,CE,ASME,UL |
| Weight: | 1960kg |
| Dimension(L*W*H): | 2000*1200*1585 |
| Voltage: | 380V/3P/50Hz(Can be customized ) |
| Model Number: | SEVSD75A |
| Place of Origin: | China (Mainland) |
| Power Source: | AC Power |
| Pressure: | 8/10/13bar |
| Air Flow: | 2.2-13.0m3 |
Quick Details
Specifications

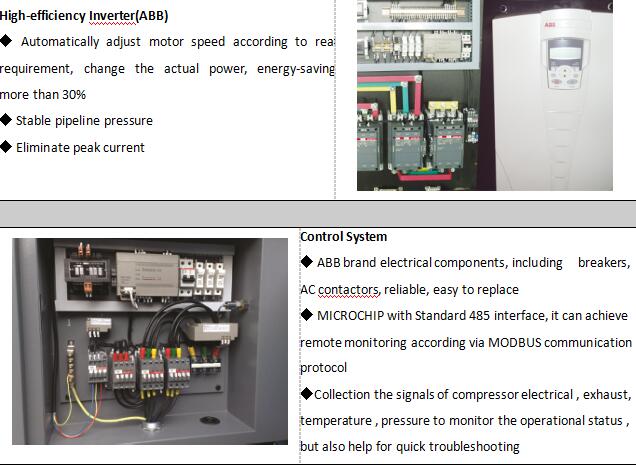

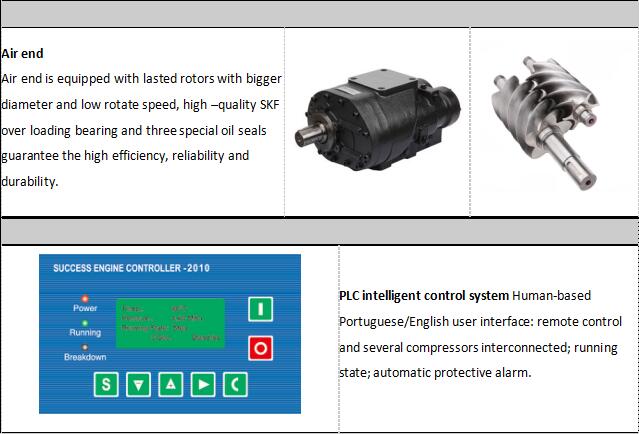

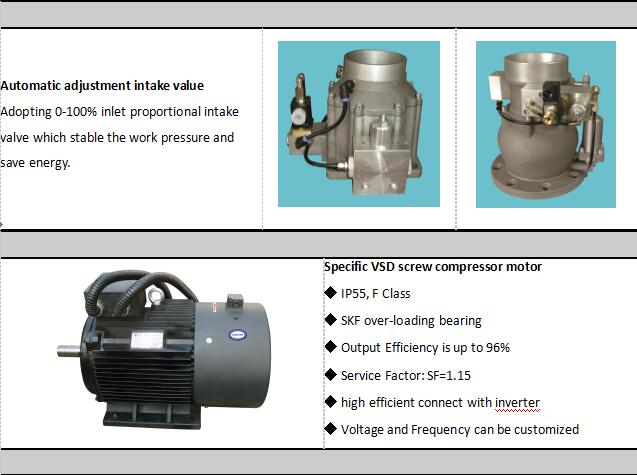

Our variable speed air compressor is equipped with a high performance airend, variable frequency
Motor, and advanced variable frequency drive system. Air production is adjusted by changing the motor speed. When air demand reduces, the energy consumed by the motor also reduces.
Variable frequency starting is adopted. the starting current is small and no impact is caused to the grid, which greatly extends the service life of the equipment. Also, stable air pressure is provided while energy consumption is reduces. In addition, our variable speed air compressors feature low rotation speed and low noise. They are widely used in the pneumatic tool, instrumentation, packaging machine, textile machinery, beer making, electric printing, mining, aeronautics and astronautics, as well as other industries.
Motor, and advanced variable frequency drive system. Air production is adjusted by changing the motor speed. When air demand reduces, the energy consumed by the motor also reduces.
Variable frequency starting is adopted. the starting current is small and no impact is caused to the grid, which greatly extends the service life of the equipment. Also, stable air pressure is provided while energy consumption is reduces. In addition, our variable speed air compressors feature low rotation speed and low noise. They are widely used in the pneumatic tool, instrumentation, packaging machine, textile machinery, beer making, electric printing, mining, aeronautics and astronautics, as well as other industries.
| Model | SEVSD75A-8/10/13 |
| Free air delivery (m3/min) | 2.2-13.0 |
| Max working pressure (bar) | 8/10/13 |
| Power kW(HP) | 75(100) |
| Noise level dB(A) | 75 |
| Cooling method | Air cooling |
| Oil content (ppm) | 1~3 |
| Motor Efficiency | 95% |
| Protection degree | IP55, F |
| Drive method | Coupling |
| Start Mode | Inverter |
| Compressed air control method | Automatic(0-100%) |
| Discharge Temperature | Ambient temp+8~10oC |
| Connection (mm) | Rp 2 |
| Dimensions (L×W×H) mm | 2000X1200X1585 |
| Weight (Kg) | 1960 |
