| Hard Drive Interface: | SATA |
|---|---|
| Graphics Card Type: | Integrated |
| Memory Type: | DDR3 |
| Chipset Manufacturer: | Intel |
| Products Status: | Stock |
| Place of Origin: | China (Mainland) |
| Model Number: | H81 V1.01 |
| Brand Name: | Winnfox |
| FSB / HT: | 1066/1333/1600MHz |
| Form Factor: | ATX |
| Socket Type: | |
| Application: | Desktop |
| Memory: | OEM |
Quick Details
Specifications
Product Description
H81 V1.01 computer MAINBOARD motherboard SUPPORT Inteli3/i5/i7 CPU 2 DDR3
1. Support LGA 1150 Intel i3/i5/i7 series CPU/Pentium/Celeron series CPU
2. Support 2 DDR3 1066/1333/1600MHz memory
3. Support RTL8105E 10/100 mbps
4. HD_AUDIO sound card built in,support ALC662 6 sound channel output
5. Front panel audio output function,1 PCI Expres16
6. 1 HDMI port, 10 USB2.0 port/3.0 port( 4 expansion), 4x SATA, 1xVGA,
| CPU | Supports Intel i3/i5/i7 series CPU |
| Supports 1333/1066/1600/MHz FSB | |
| Chipset | Northbridge: Intel H81 |
| Memory | Supports 2 DDR3 1066/1333/1600MHZ memory |
| 1 VGA port | |
| Audio | Realtek ALC662 6 Channel Audio Codec |
| LAN | Realtek 8105E 10/100M LAN Controller |
| Expansion Slots | 1x PCI Express X16 slot |
| I/O Connectors | 1x ATX connector |
| 4x SATA 3Gb/s connector | |
| 10x USB 2.0/3.0 connector | |
| 1HDMI port | |
| 1x PS/2 port | |
| 1x VGA port | |
| 1x RJ-45 port | |
| 1x audio jacks | |
| Form Factor | 210 x 170mm |

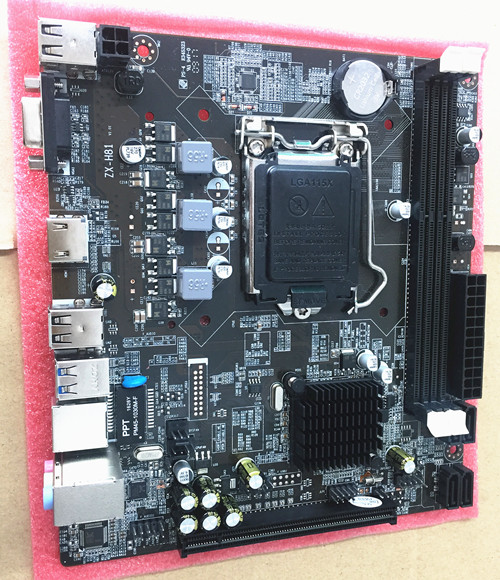

H81 DDR3 motherboard appearance
Packaging & Shipping
1. Standing Bulk Packing: 20 pcs/carton
Carton Size: 51 x 49 x 26.8 (cm)
2. Accept retail box packing
3. Accessories: 1 CD Driver, 1 SATA Cable (according to exact model), 1 Manual, 1 I/O Panel.
Company Information
Production Department
Motherboard-- 8 assembly lines
Professional SMT Group
Computer -- 4 assembly lines
Packing -- 2 lines for motherboard, 2 lines for computer
QC Department:
IQC, OQC, Spot-check etc.
(We equipped with different test equipments that can support all product's parts doing incoming inspection. All finished product after strict out-going inspection also.)
Material Purchasing Department:
We choose brand and powerful materials suppliers to keep our finished product's quality.
like Intel,Foxconn...
after-sale Service:
with richful experience maintainers and complete maintenance equipment to make sure the high-quality after-sale service
