Feature:





Technical details

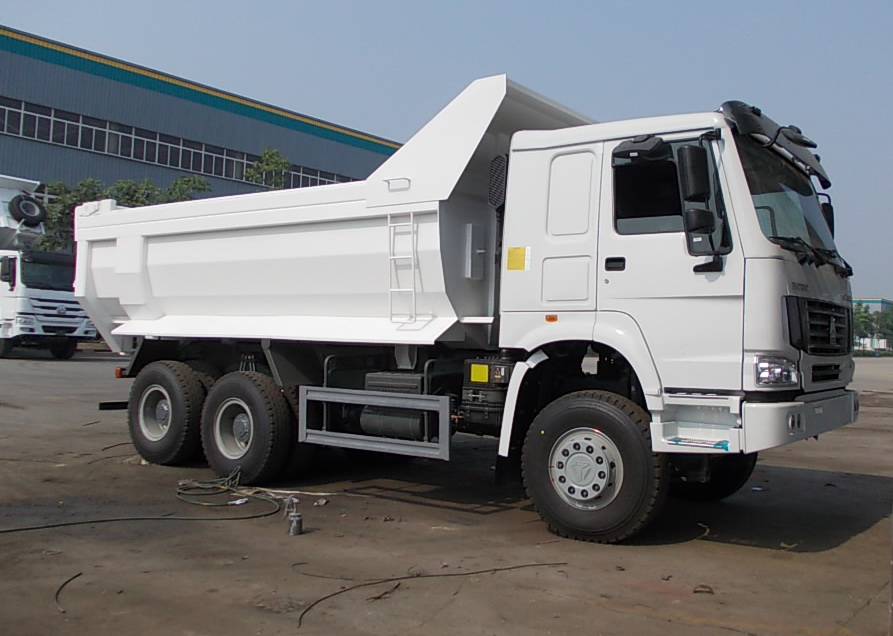

HOWO-7 TIPPER TRUCK
Maker: SINOTRUK
Model: ZZ3257N3247B
Driving type: 6x4
Made year: 2017 brand new
Cab: HW70 standard cabin without sleeper, double seats, with air conditioner, with high steel metal bumper, without air seat (optional)
Engine: WD615.69, 336HP, 247Kw at 2200 rpm, Euro II emission standard, with displacement of 9.726L, 4 stroke, direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling, Maximum torque of 1160Nm at 1100~1600 rpm
Transmission: HW19710 (10 forwards and 2 reverses, manual)
Front axle: HF9 (9000Kg)(drum brake)
Rear axle: HC16 (2X16000Kg) (i=5.73) (drum brake)
Suspension: reinforced leaf springs, 10/12 pcs
Tires: 12R22.5, tubeless, 13 pcs, Triangle Brand
Fuel tank: 300L
Steering: ZF8098 power steering, hydraulic steering with power assistance, ratio: 22.2-26.2
without ABS
with top warning beam
with fire extinguisher
with front and rear beam protector
with hijack and spanner tools
Dumping Body: 5400*2300*1400mm, 17.39cbm
Thickness of bottom plate 8mm, thickness of side walls 6mm,with rigid pattern, with rear gates
Reinforced T-type middle lifting mechanism
Overall Measurements: 7934*2496*3386mm
Gross Vehicle Weight: 25000kg
Color: White
