| Pixels: | 4.81mm |
|---|---|
| Display Function: | Animation |
| Tube Chip Color: | Full Color |
| Usage: | indoor/outdoor |
| Brand Name: | lhjloong |
| Pixel Configuration: | 1R,1G,1B |
| Pixel Density: | 43264dots/Sqm |
| Scanning Mode: | 1/13scan |
Quick Details
Specifications
| Product Model | P4.81 |
| Pixel Pitch | 4.81mm |
| Pixel Configuration | 1R1G1B |
| LED Encapsulation | SMD2121 |
| Pixel Density | 43243dots/m2 |
| Brightness | ≥1400CD/m2 |
| Color Temperature | 6500-9500K |
| Drive Mode | 1/13scan |
| Cabinet Size | 500*1000*69mm |
| Cabinet Resolution | 208*104pixel |
| Cabinet Weight | 11.5kg |
| Max Power Consumption | ≤630w/m2 |
| Average Power Consumption | ≤315w/m2 |
| Best Viewing Angle | H:140o V:120o |
| Refresh Rate | ≥1000Hz |
| Grey Scale | 14-16bit |
| Best Viewing Distance | 2-14m |
| Protection Level | FrontIP65,RearIP54 |
| Cabinet Material | Die casting Aluminum |
| Operating Voltage | 110V-220V(47-63Hz),200V-240V(47-63Hz) |
| Working Humidity | 10%-90% |
| Working Temperature | -20°c-+50°c |

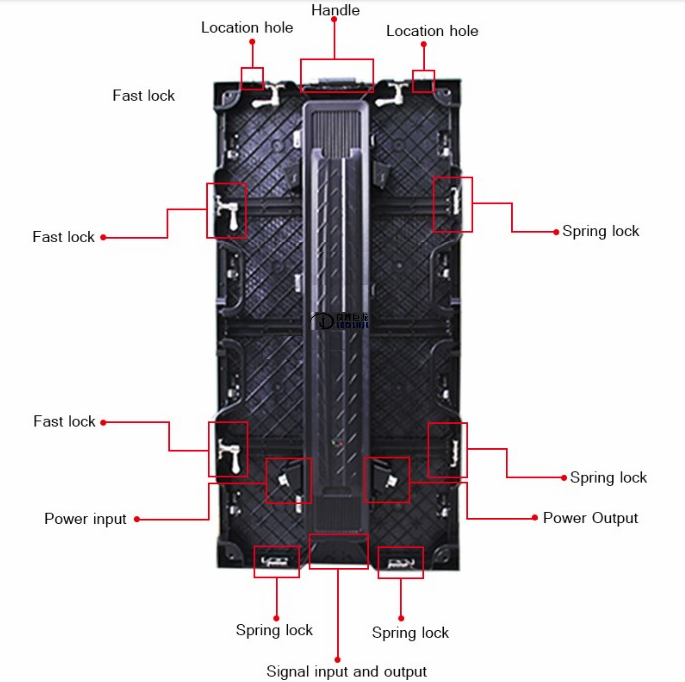

2.Toolless and fast installation
3.Biger side cabinet size:500*1000*69mm,higher cost performance
4.2 cabinets versions:straight and curved(Inner10o,Outter15o)
5.Single cabinet can be removed from big screen regardless its position.
6.Die-casting aluminum cabinet material, strong press
7. Various options for irregular-shaped screen design
8.Packaging
Selling Units: Single item
Single package size: 52X102X9 cm
Single gross weight: 19.0 KG
Package Type: best price indoor p4.81 rental LED display screen,flight case or wooden case
