| Rated Voltage: | 100VDC, 250VDC, 400VDC, 630VDC |
|---|---|
| Capacitance: | 0.01UF-10UF |
| Application: | General Purpose |

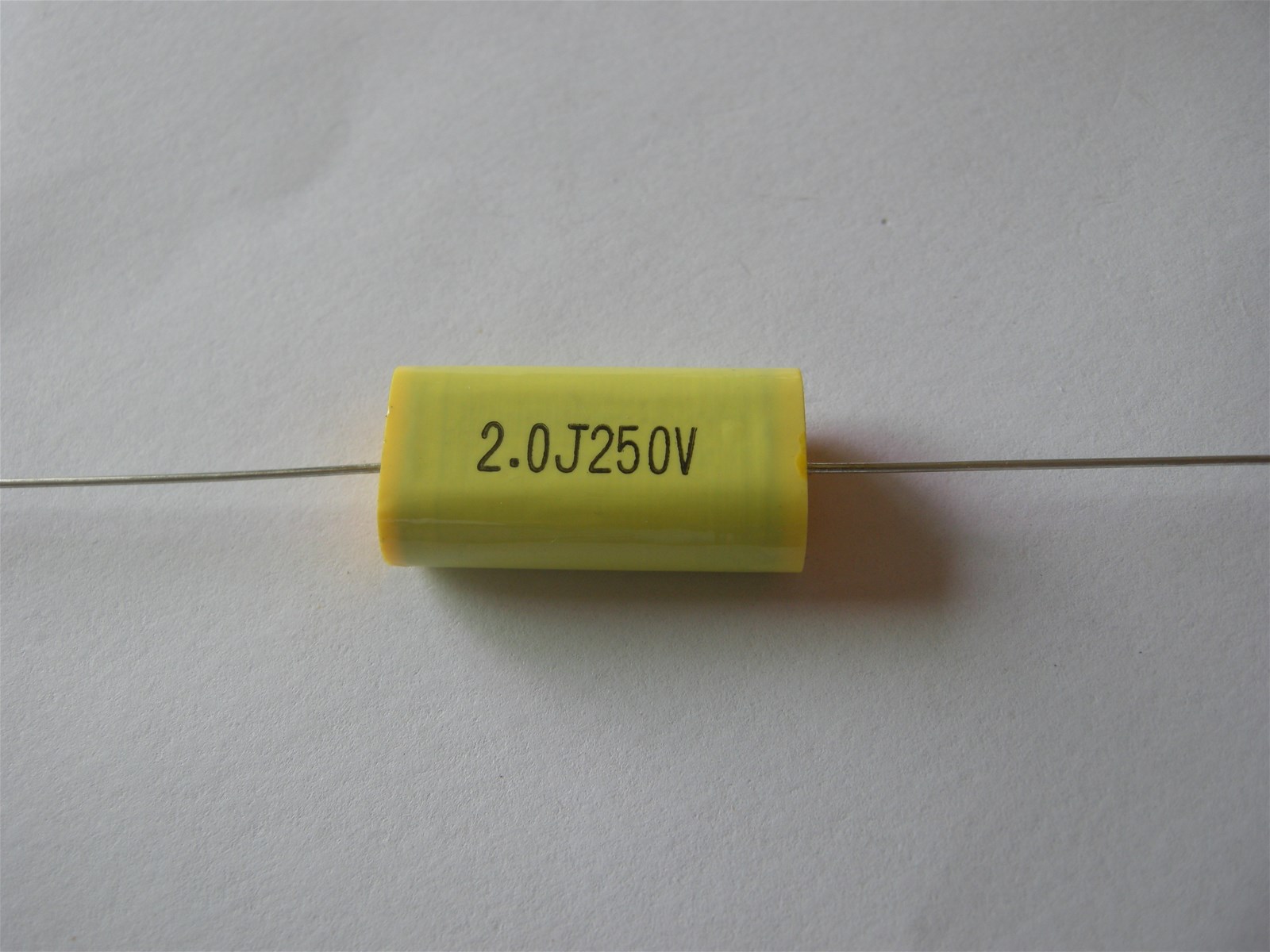

| Type: | Polyester Film Capacitor |
| Brand Name: | GJS |
| Operating Temperature: | -25-75 |
| Package Type: | Through Hole |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| Reference Standard | GB/T 7332(IEC60384-2) | ||||
| Climatic category | 40/105/21(AC:25/70/21) | ||||
| Rated temperature | 85(AC:70) | ||||
| operating temperature range | -40-10585-105:derating factor 1.5% perfor R.V(D.C) | ||||
| rated voltage | 100VDC, 250VDC, 400VDC, 630VDC, 630VDC,160Vac, 250Vac | ||||
| capacitance range | 0.0047-10uf | ||||
| Capacitance tolerance | 5%(J),10%(K) | ||||
| Voltage proof | 1.6*R.V(DC),2S(between terminals) | ||||
| Dissapation factor | 1%(1KHZ at 20-25) | ||||
| Insulation resistance | 15000M,Cr0.33uf | ||||
| 5000s,Cr0.33uf at 100VDC, 60S, 20-25 | |||||
| maximum pulse rise Time(dV/dT): | Ur(v) | DV/Dt(V/uS) | |||
| P=10 | P=15 | P=22.5 | P=27.5 | ||
| 63 | 6 | 3 | 2 | 1 | |
| 100 | 9 | 5 | 3 | 2 | |
| 250 | 20 | 12 | 8 | 5 | |
| 400 | 30 | 20 | 10 | 7 | |
| 630 | 40 | 25 | 12 | 10 | |
