| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 YEAR |
| Certification: | CE |
| Brand Name: | NICE CUT |
| Condition: | New |
| Weight: | 200kg |
| Dimension(L*W*H): | 1300*2500mm |
| Power(W): | 1.5KW |
| Voltage: | 380V 50/60HZ |
| Model Number: | NC-1325 |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
Quick Details
Specifications

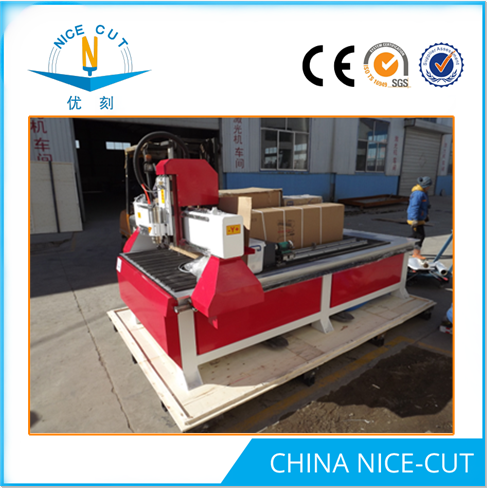

3.0-9.0KW NC-w 1325 vacuum table Wood working cutting/engraving machine price
CNC Router information for you:
NO. |
Discription |
Parameter |
1 |
X,Y,Z Working Area |
1300*2500*200mm |
2 |
Table Size |
1560*3150mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
5 |
Lathe Structure |
Cast Aluminum |
6 |
X, Y Structure |
Shaft Linear Bearings and Ball Screw |
7 |
Z Structure |
Ball Screw |
8 |
Max.Consume power |
3.0Kw |
9 |
Max.Speed |
0-6000mm/min |
10 |
Max.Working Speed |
0-3000mm/min |
11 |
Spindle Power Motor |
3.0Kw Chinese (3.0Kw HSD spindle) |
12 |
Spindle Speed |
0-18000RPM |
13 |
Working Mode |
Stepper |
14 |
Working Voltage |
AC220V/50/60Hz |
15 |
Command |
G code, *uoo, *mmg, *plt |
16 |
Operating System |
DSP System |
17 |
Interface |
USB |
18 |
Flash Memory |
128M |
19 |
Collet |
ER18 |
20 |
X,Y Working Delicacy |
<0.01mm |
21 |
Software |
Type3 software, Wentai software, Artcam software |
22 |
Running circumstance |
Temperature: 0~45 Relative humidity: 30%~75% |
23 |
Packing Size |
1680X3150X1850mm |
24 |
Net Weight |
1000kgs |
25 |
Gross Weight |
1260kgs |
All parameters above subject to change without prior notice | ||
Welcome to contact us for more details
