| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 yeare |
| Certification: | new |
| Brand Name: | NICE CUT |
| Condition: | New |
| Weight: | 600kg |
| Dimension(L*W*H): | 600*900mm |
| Power(W): | 1.5kw spindle |
| Voltage: | 220V 50/60HZ |
| Model Number: | NC-6090 |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| working area: | 600*900mm |
| type: | cnc router 600 x 900 |
| control system: | pc control |
| control softwar: | artcam |
| cooling method: | water cooling |
| accuracy: | <0.03mm |
| supplier: | factory direct sale |
Quick Details
Specifications
NC-B6090 mini CNC for metal NC-6090 CNC carving machinery
1.CNC router 600*900mm
2.1.5kw water cooling spindle
3.PVC +T-slot table
4.PC/DSP controllor
5.Customer made
6.CE Certificate
CNC Router information for you:
NO. |
Discription |
Parameter |
1 |
X,Y,Z Working Area |
600x900x120mm |
2 |
Table Size |
720X1135mm |
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
4 |
X,Y,Z repositioning Positioning Accuracy |
±0.05mm |
5 |
Lathe Structure |
Cast Aluminum |
6 |
X, Y Structure |
Shaft Linear Bearings and Ball Screw |
7 |
Z Structure |
Ball Screw |
8 |
Max.Consume power |
3.0Kw |
9 |
Max.Speed |
0-6000mm/min |
10 |
Max.Working Speed |
0-3000mm/min |
11 |
Spindle Power Motor |
1.5Kw Chinese (1.5Kw HSD spindle) |
12 |
Spindle Speed |
0-18000RPM |
13 |
Working Mode |
Stepper |
14 |
Working Voltage |
AC220V/50/60Hz |
15 |
Command |
G code, *uoo, *mmg, *plt |
16 |
Operating System |
DSP System |
17 |
Interface |
USB |
18 |
Flash Memory |
128M |
19 |
Collet |
ER18 |
20 |
X,Y Working Delicacy |
<0.01mm |
21 |
Software |
Type3 software, Wentai software, Artcam software |
22 |
Running circumstance |
Temperature: 0~45 Relative humidity: 30%~75% |
23 |
Packing Size |
1710X1200X1495mm |
24 |
Net Weight |
190KG |
25 |
Gross Weight |
252KG |
All parameters above subject to change without prior notice | ||

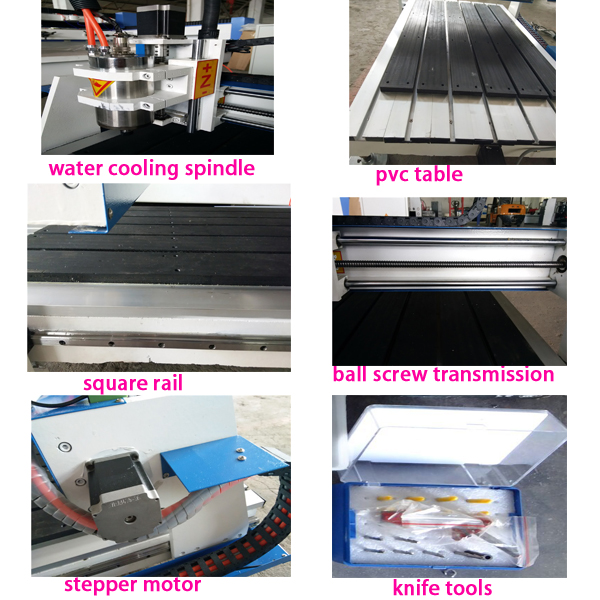

Important parts show:
Samples show:
after sales service
Welcome to contact us for more details
