Product Main

Quick Details

Usage: Drop Tester
Power: Electronic
Brand Name: OTS JUNYUAN
Warranty: 12 Months
weight: 80kg
Model Number: JY-1097C
Place of Origin: China (Mainland)

Specifications

Applications

this machine appliesfor  testing products small package drop damage condition, and evaluate the shock resistance performance under transportation conditions


Test Method

Specimen automatically lifting to pre-setting height, then free drop and shock on the drop plate


Accessories

 1.Regulating Valve: control air pressure amount;

 2.Screw tightening : Fixture moving and fix.

 3.Fixture: use for clamp specimen


Features

1 this machine availablefor package face, corner, edge free drop testing.

2 with height digital display instrument and tracing height with encoder, so can measure the precision drop height.

3 the drop height tolerance within2%or10mm;

4 Adopt pneumatic structure, fix the specimen with special fixture (range Adjustable), push the drop button,  pneumatic cylinder open, specimen Free dropping. the drop height controllable, and with height steel Ruler   which makes drop height available.


Technical Parameters

 Drop Height

300~1500mm(Controllable, steel ruler,Min. Indication value:1mm)

 Testing Method

Face, edge, corner dropping

 Test Loading

0~5kg

 Specimen Max. Dimension

W200 x D200 x H200mm

Drop floor material

A3Steel plate(Acrylic plate, marble plate, wooden plate optional )

Drop floor dimension

W600 x D700 x H10mm(Solid plate)

Machine weight

about250kg

Machine dimension

W700 X D900 X H1800mm

Machine Power

0.75KW

Drop method

Pneumatic dropping

Lifting method

Motor lifting

Power Source

220V50Hz

Safety Device

with500MM height rail

Air Source

<1mpa

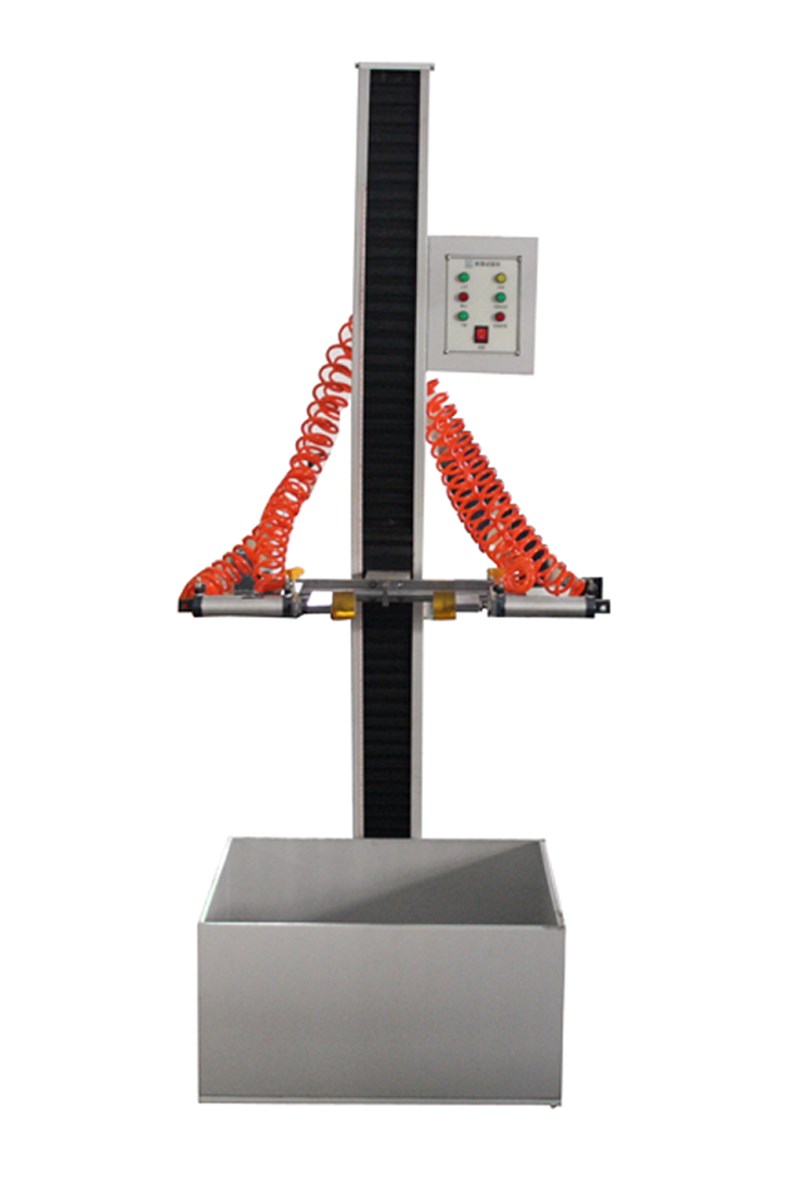

Drop Impact Testing Machine

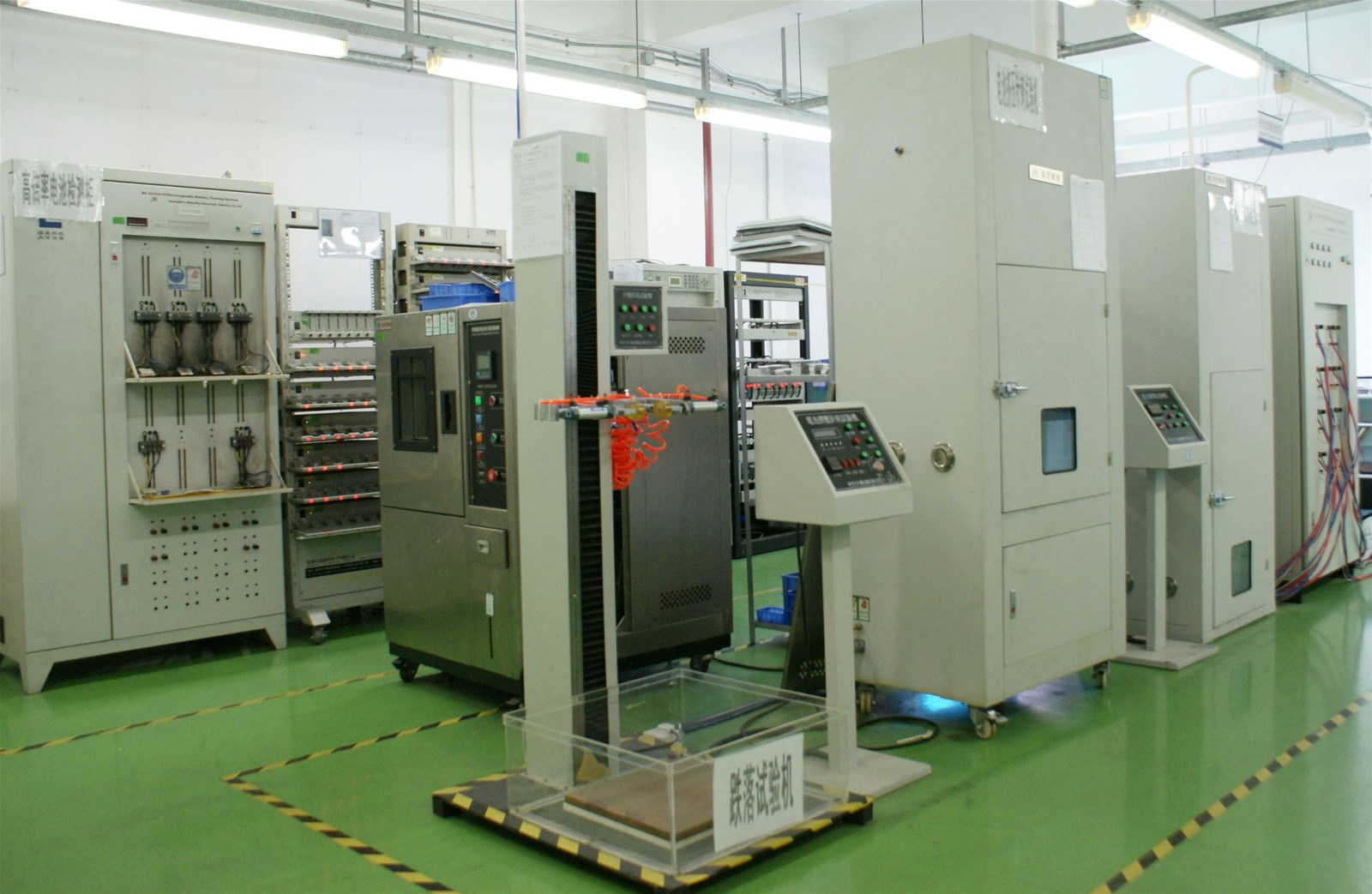

Drop Impact Testing Machine
If you have new requirements, please contact theTechnical Section,Senior engineer to provide you with the most authoritative product testing scheme
Drop Impact Testing Machine
