Quick Details
| Brand Name:
|
DEMAISI
|
| material:
|
Copper
|
| color:
|
Golden
|
| Size:
|
All size
|
| application:
|
Engine
|
| Type:
|
Flat Gasket
|
| Specification:
|
poly bags
|
| Spring Washer Type:
|
Standard
|
Specifications

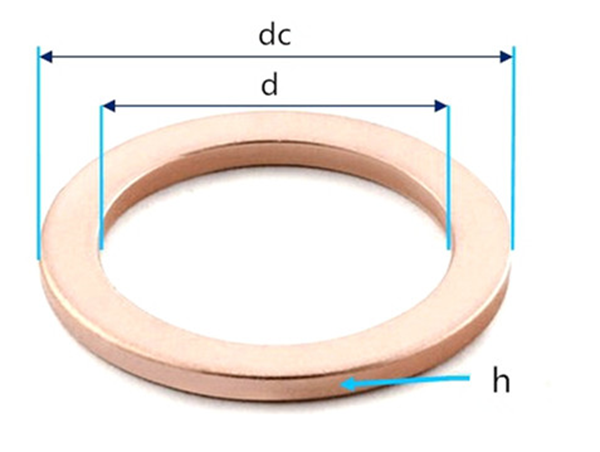

Select the same size inner diameter of washer according to the bolt size
| NO. |
GB97 |
Size:d*DC*h |
Unit:mm |
| Nominal diameter |
d |
DC |
h |
| Nominal |
Tolerance |
Nominal |
Tolerance |
| 1 |
1 |
1.1 |
0.12 |
3 |
-0.25 |
0.3 |
| 2 |
1.2 |
1.3 |
3.2 |
-0.3 |
| 3 |
1.4 |
1.5 |
3.5 |
| 4 |
1.6 |
1.7 |
4 |
| 5 |
2 |
2.2 |
5 |
| 6 |
2.5 |
2.7 |
6.5 |
-0.36 |
0.5 |
| 7 |
3 |
3.2 |
0.16 |
7 |
| 8 |
4 |
4.2 |
9 |
0.8 |
| 9 |
5 |
5.3 |
10 |
| 10 |
6 |
6.4 |
0.20 |
12.5 |
-0.43 |
1.5 |
| 11 |
8 |
8.4 |
17 |
| 12 |
10 |
10.5 |
0.24 |
21 |
-0.52 |
2 |
| 13 |
12 |
13 |
24 |
| 14 |
14 |
15 |
28 |
| 15 |
16 |
17 |
30 |
3 |
| 16 |
18 |
19 |
0.28 |
34 |
-0.62 |
| 17 |
20 |
21 |
37 |
| 18 |
22 |
23 |
39 |
| 19 |
24 |
25 |
44 |
4 |
| 20 |
27 |
28 |
50 |
| 21 |
30 |
31 |
0.34 |
56 |
-0.74 |
| 22 |
36 |
37 |
66 |
5 |
| 23 |
42 |
43 |
78 |
7 |
| 24 |
48 |
50 |
92 |
-0.87 |
8 |
