Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ce
Brand Name: senchuang machine
Condition: New
Dimension(L*W*H): 5000x1400x1500
Model Number: sj-120
Place of Origin: China (Mainland)

Specifications

Specifications

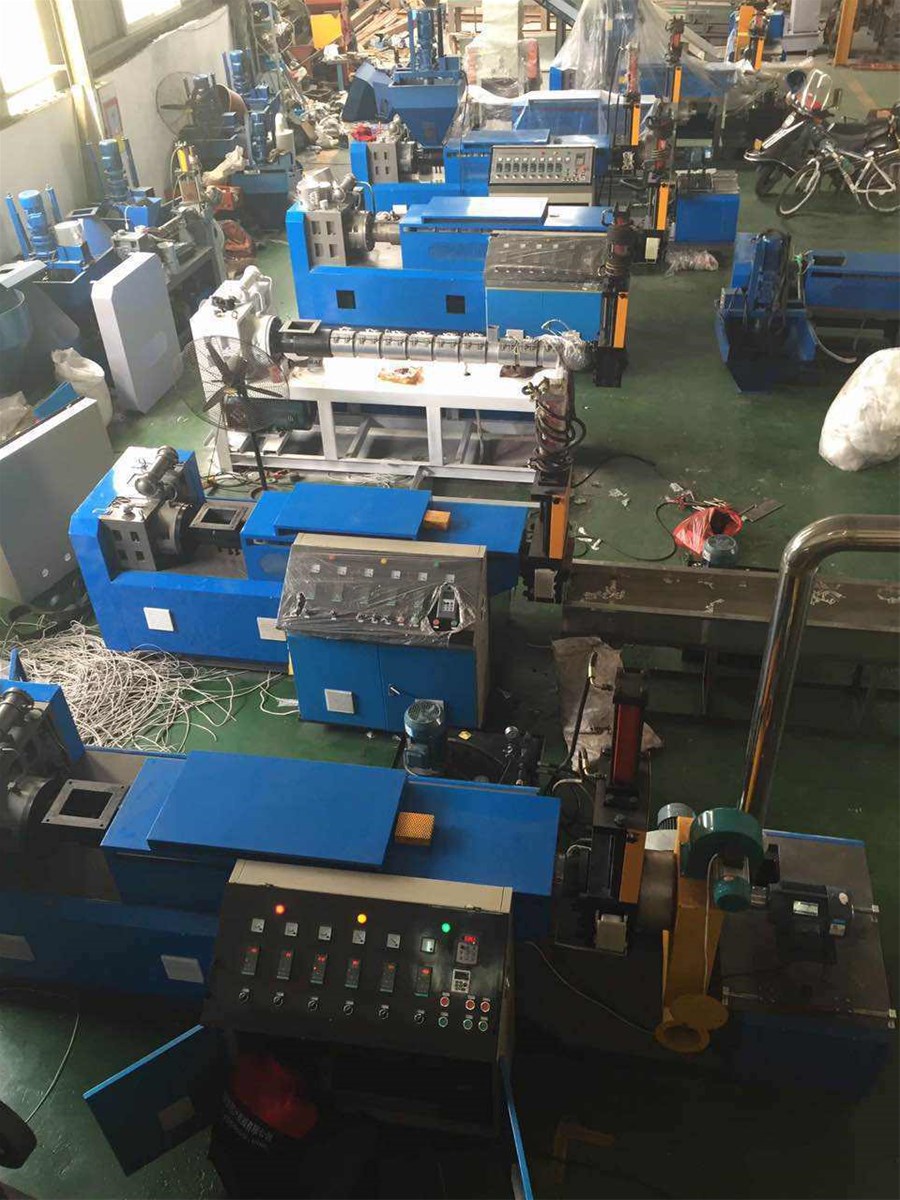

PEPP Waste Plastic Recycling MachinePEPP Waste Plastic Recycling Machine

this recycling machine is equipped with force feeding,hydraulic filter changer,hard tooth gearbox,38CRMOALA.

SJ-C90, 100, 110, 120Waste Plastics Recycling Machine is used for recycling of the used and waste plastic materials. It equipped with automatic constant temperature, clectric changing filter nets. It also can pelletize the croushing material after fitting with a loader. the cutting machine adopts speed regulating motor. Which can cut the matcrial according to the feeding speed of the extruder. with such features as high output, low noise, stable performance and easy operation. It is a more ideal waste plastic film regenerative. Pelletizer.

Model SJ-90 SJ-100 SJ-110 SJ-120
Diameter of ScrewStem 85mm 95mm 105mm 110mm
Major Diameter Ratio of Screw Stem 20:1-22:1(L/D) 20:1-22:1(L/D) 20:1-22:1(L/D) 20:1-22:1(L/D)
Rationl Speed of Screw 10-110rpm 10-110rpm 10-110rpm 10-110rpm
Main Motor Power 22kw 30kw 30kw 37kw
Output 60kg/h 90kg/h 110kg/h 130kg/h
Machine Weight 2t 2.1t 2.2t 2.5t
Overail Dimensions(LxWxH) 5800 x 1500 x 1100 5900 x 1300 x 1200 6000 x 1350 x 1300 6200 x 1400 x 1350
