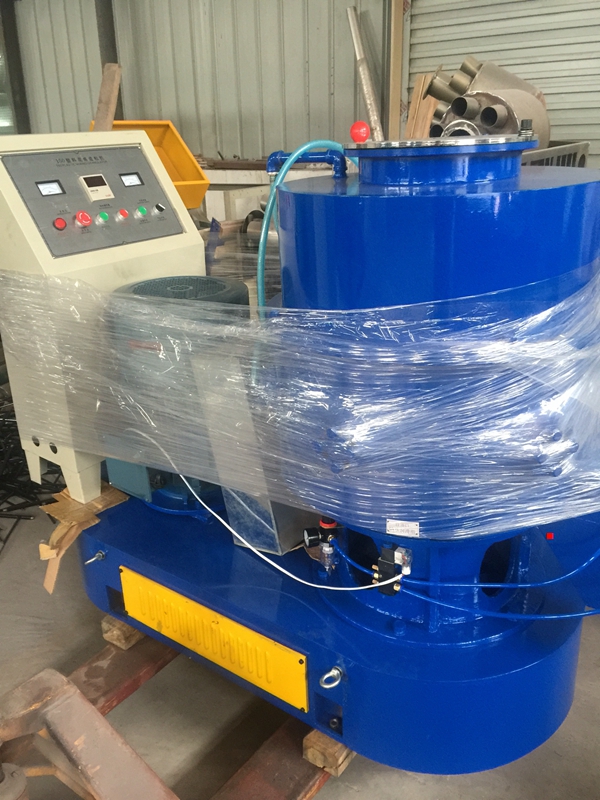

Plastic Waste Film Recycling Machine





Main Functions

    1. Recycle the waste materials and leftover bits and pieces of various flexible plastic films, bags, filament, ribbons, pieces, and pipes such as polyvinyl chloride, polyethylene of higher density, and linear polyethylene of lower density, and put them into reproduction.

    2. Recycle and reproduce the grinding and granulating of degrading plastic films and angle materials.

    3. Grind chemical fiber waste materials, and process the waste filament that has been put into reproductions.

    4. the machine is applied in many respects. It can be substitute for blending machine or dryer.



Main Features

    A: Milling, mixture and staining can be processed all in one

    B: the machine takes up little area of land

    C: It is characterized by simple structure and ease of operation

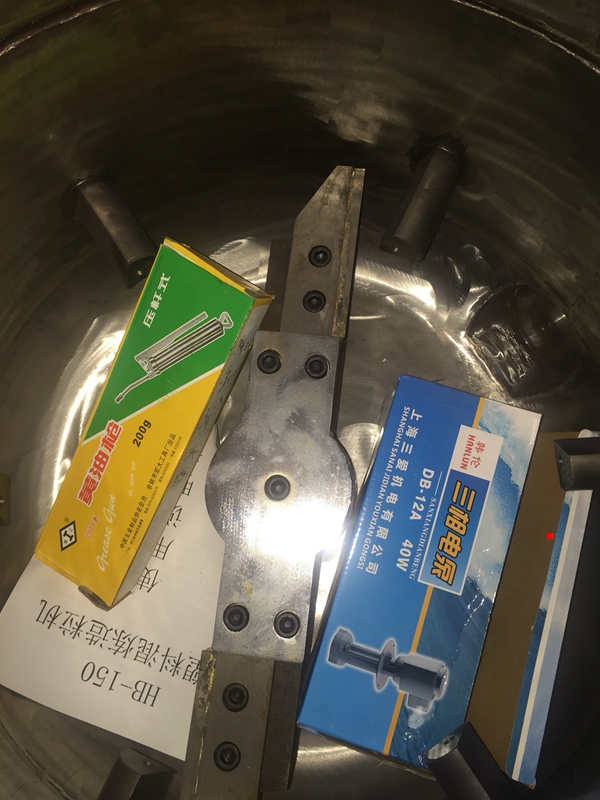

    D: the interstitial of the blade can be adjusted with convenience of replacing.

    E: It is characterized by high efficient in production and low consumption(1 ton of daily production,and 200 degrees of electricity consumption ).

    F: Granulate at lower temperature, do not damage molecular structure of materials basically, and do not damage physical performance.



Main Technical Variables

Drum Volume	150L
Output(kg/h)	60-80
Main Motor Power(KW)	18.5
Watering Power(KW)	0.125
Heating Power(KW)	1.5
Main screw rotating speed	660r/min
Overall Dimensions(L×W×H)(mm)	1500×700×1400
Weight(T)	0.1
