| Rated Voltage: | 100vdc, 250vdc, 400vdc, 630vdc |
|---|---|
| Capacitance: | 0.0047uf-10uf |
| Application: | Automotive |

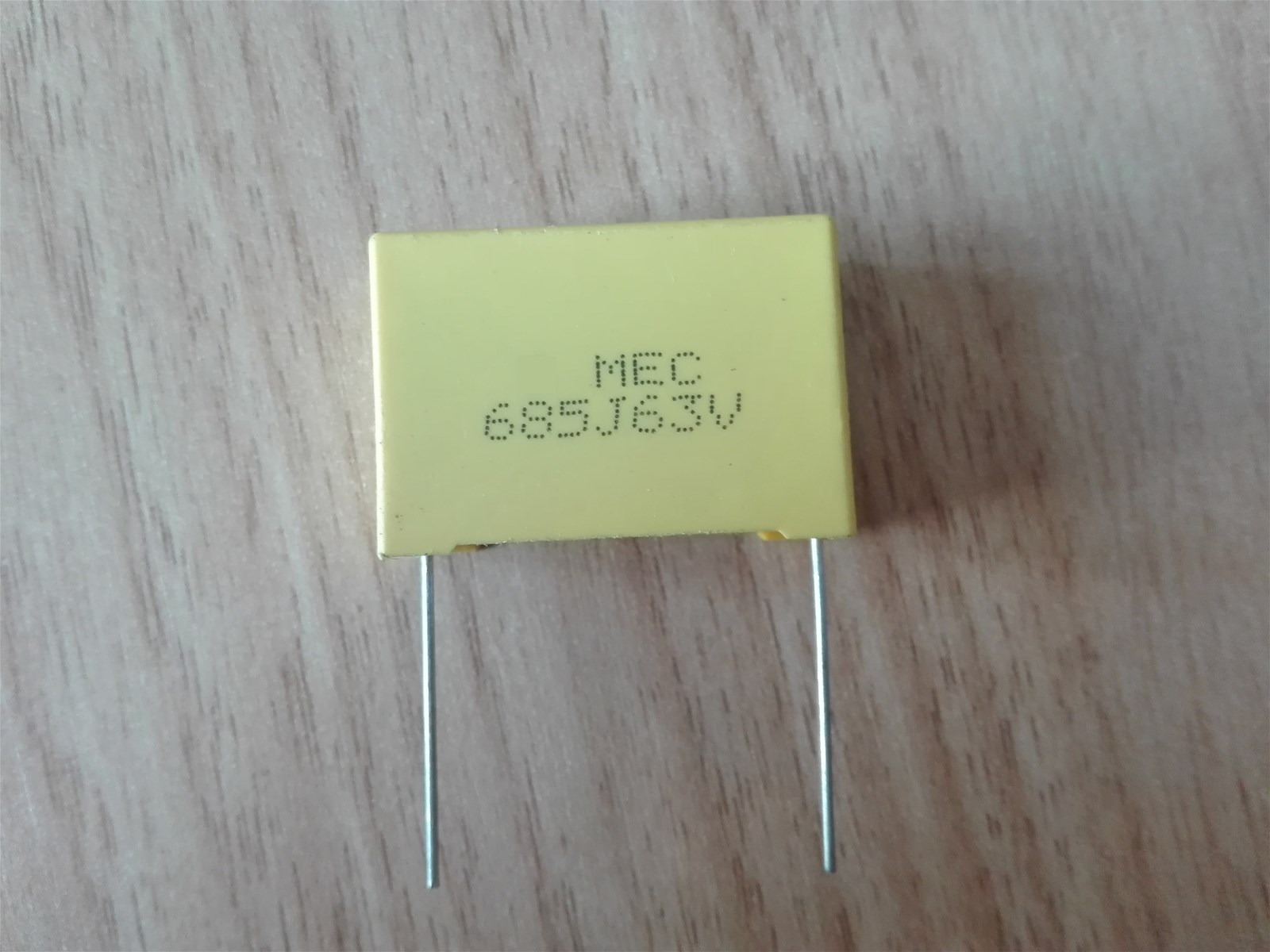

| Type: | Polyester Film Capacitor |
| Brand Name: | gjs |
| Operating Temperature: | -40-105 |
| Package Type: | Through Hole |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| Reference Standard | GB/T 7332(IEC60384-2) | ||||
| Climatic category | 40/105/21 | ||||
| Rated temperature | 85℃ | ||||
| Operating temperature range | -40℃-105℃85-105℃:derating factor 1.5% per℃for R.V(D.C) | ||||
| Rated voltage | 63VDC, 100VDC, 250VDC, 400VDC, 630VDC | ||||
| Capacitance range | 0.0047-10uf | ||||
| Capacitance tolerance | ±5%(J),±10%(K) | ||||
| Voltage proof | 1.6*R.V(DC),2S(between terminals) | ||||
| Dissapation factor | ≤1%(1KHZ at 20-25℃) | ||||
| Insulation resistance | ≥15000MΩ,Cr≤0.33uf | ||||
| ≥5000s,Cr﹥0.33uf at 100VDC, 60S, 20-25℃ | |||||
| Maximum pulse rise Time(dV/dT): | Ur(v) | DV/Dt(V/uS) | |||
| P=10 | P=15 | P=22.5 | P=27.5 | ||
| 63 | 6 | 3 | 2 | 1 | |
| 100 | 9 | 5 | 3 | 2 | |
| 250 | 20 | 12 | 8 | 5 | |
| 400 | 30 | 20 | 10 | 7 | |
| 630 | 40 | 25 | 12 | 10 | |
