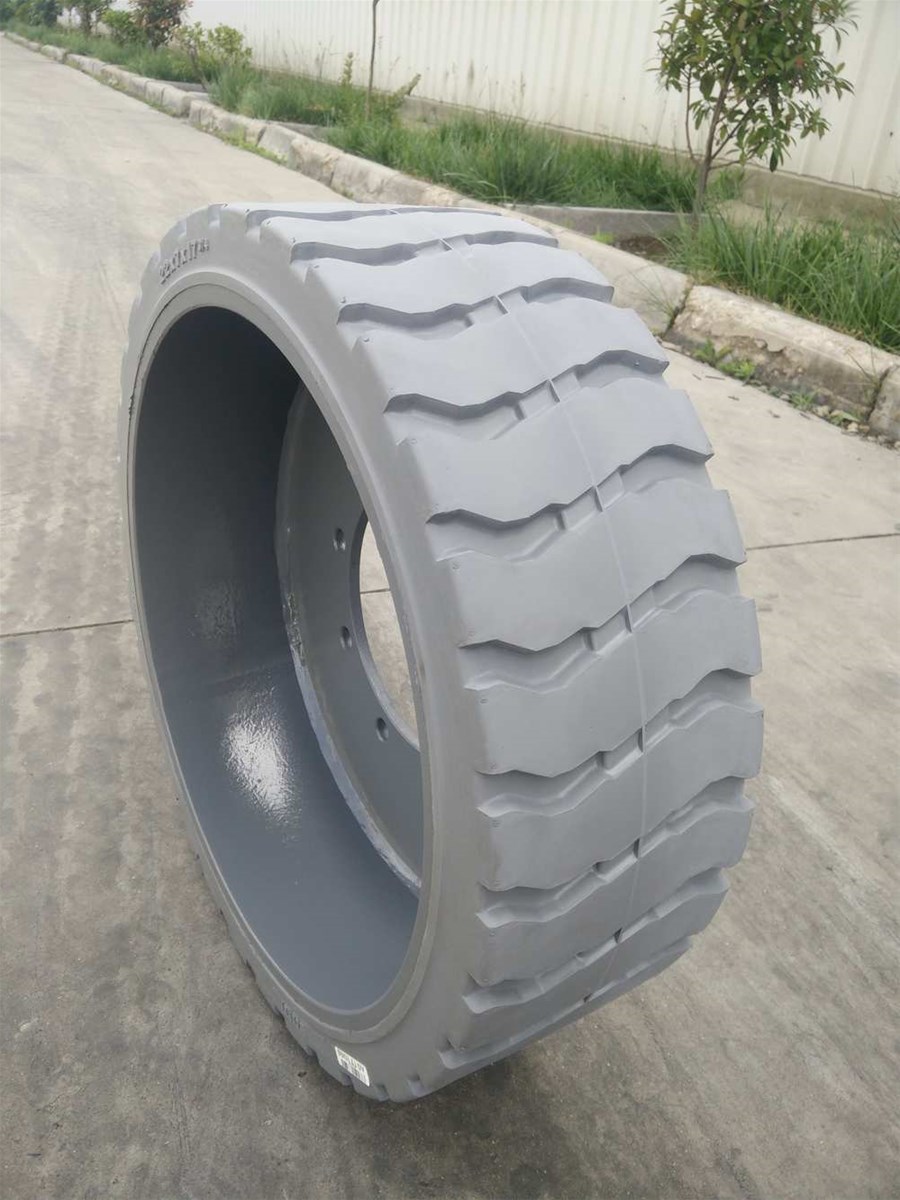

Non-marking Genie 94908 94909 Scissor Lift Tires 22x7x17 3/4

Specification of Solid Tires for Scissor Lifts



No.	SIZE/RIM	Pattern No.	Outside Diameter (mm)	Section Width (mm)	Net Weight (Kg)
			±5mm	±5mm	WonRay
1	FB10*3(grey cast iron)	R706	254	74	7.5
2	FB10*4 (with RIM)	R706	256	101.6	5.9
3	12*4 (with brake)	R707	310	100	7.9
4	12*4 (W/O brake)	R707	310	100	7.4
5	FB 12*4.5(grey iron)(-2same this)	R707	310	115	15.3
6	FB 12*4.5(ductile iron)	R707	310	115	15.3
7	FB 14*4 1/2	R713	358	114	14.3
8	FB 15*5(grey iron)	R712	384	127	22.3
9	FB 15*5(ductile iron)	R712	384	127	22.3
10	FB 15*5-2(grey iron)	R712	384	127	21.1
11	16*5*12(with brake)	R706	406	125	15.8
12	16*5*12(W/O brake)	R706	406	125	14.6
13	FB22*7*17 3/4	R714	559	176	50
14	FB 406*125(JLG16*5*12)	R706	406	125	17.7
15	FB406*127	R713	406	127	21.3
16	FB 323*100	R713	323	100	9.4



Company information:

. Is a comprehensive enterprise engaged in researching, producing and Selling industrial tires with high performance at low costs. Our annual Production capacity is 300,000 pieces, among which 40% products are Exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we Can provide excellent and complete after-sales services for all Customers.
All our products meet the standards TRA in the USA, ETRTO in Europe and JATMA in Japan.



Products and factory photo show



 after Sales:



1, All our solid tires are in line with GB/T10824-2008



2, If needed, we can supply the correct rims and press the rims into the tires



3, We will advise the speed limit and load capacity after sales



4, If any problem, please contact with us, we will reply in short time.



5, If quality problem, please take photos, we will be responsible for this.



6, for the need of developing new product, please offer us detailed technical requirement or mould drawing.



Attention:

We Have rims with different installing bolt holes. When ordering these Tires with rims, please let us know how many bolt holes your current Rims have!

for additional information please call us or leave message
