| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | NIUPAI |
| Production Capacity: | 1000sets/month |
| Type: | Water Jet Loom |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | ISO9001:2008 |
| Model Number: | NPW408A |
| Place of Origin: | China (Mainland) |
| Application: | loom shedding |
| Reed Space: | 1700mm~3600mm |
| Max. RPM: | 900rpm (4/1 weave, 1900mm) |
| Weft Picks: | 10 picks |
| Pitch: | 14mm |
| Max. Lifting Units: | 10 pcs |
| Heddle: | 280mm |
| Shedding Amount: | 54mm~110mm |
Quick Details
Specifications
the application of top-mounted Positive cam shedding device NPW400B to water-jet loom is pioneered by us in Textile industry. the device, with 13 patents and annual productivity of more Than 10,000, is sold well among more than 20 countries and regions because of Its unique reliable leveling mode and high cost-effectiveness. It's used as Ancillary equipment by quite a lot of water-jet loom manufacturers and it can Completely replace plain shedding device.

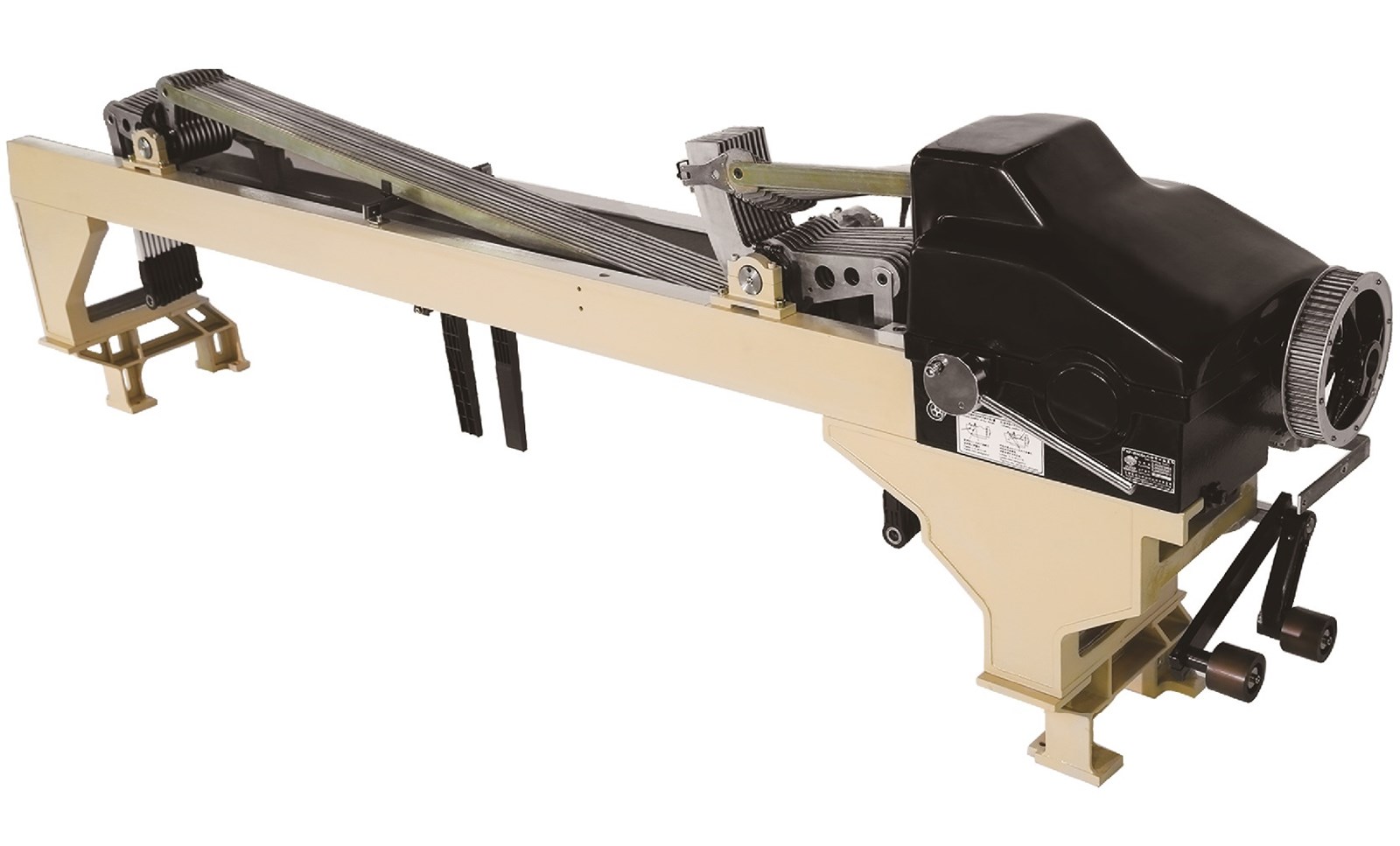

NPW408A, whose frame box adopts integral Structure, is top-mounted high-speed positive cam shedding device. with the Property of strong rigidity, high manufacturing precision, excellent conjugacy, It can meet the needs of high speed and heavy duty loom. More than 10 thousand Sets are used by Jiangsu Hengli Group and Taiwan Hualon Group respectively. It's the first choice ofTsudakomaand Toyota as Complementary product of their looms.
