| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | NIUPAI |
| Production Capacity: | 200 sets/month |
| Type: | Air Jet Loom |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | ISO9001:2008 |
| Model Number: | NP4610 |
| Place of Origin: | China (Mainland) |
| Application: | loom shedding |
| Reed Space: | 1900mm~3600mm |
| Max. RPM: | 700rpm (4/1 weave, 1900 mm) |
| Pitch: | 12mm |
| Shedding units: | 10 pcs |
| Heddle: | 330mm |
| Shedding amount: | 55mm~115mm |
| Weft Picks: | 6 picks |
Quick Details
Specifications

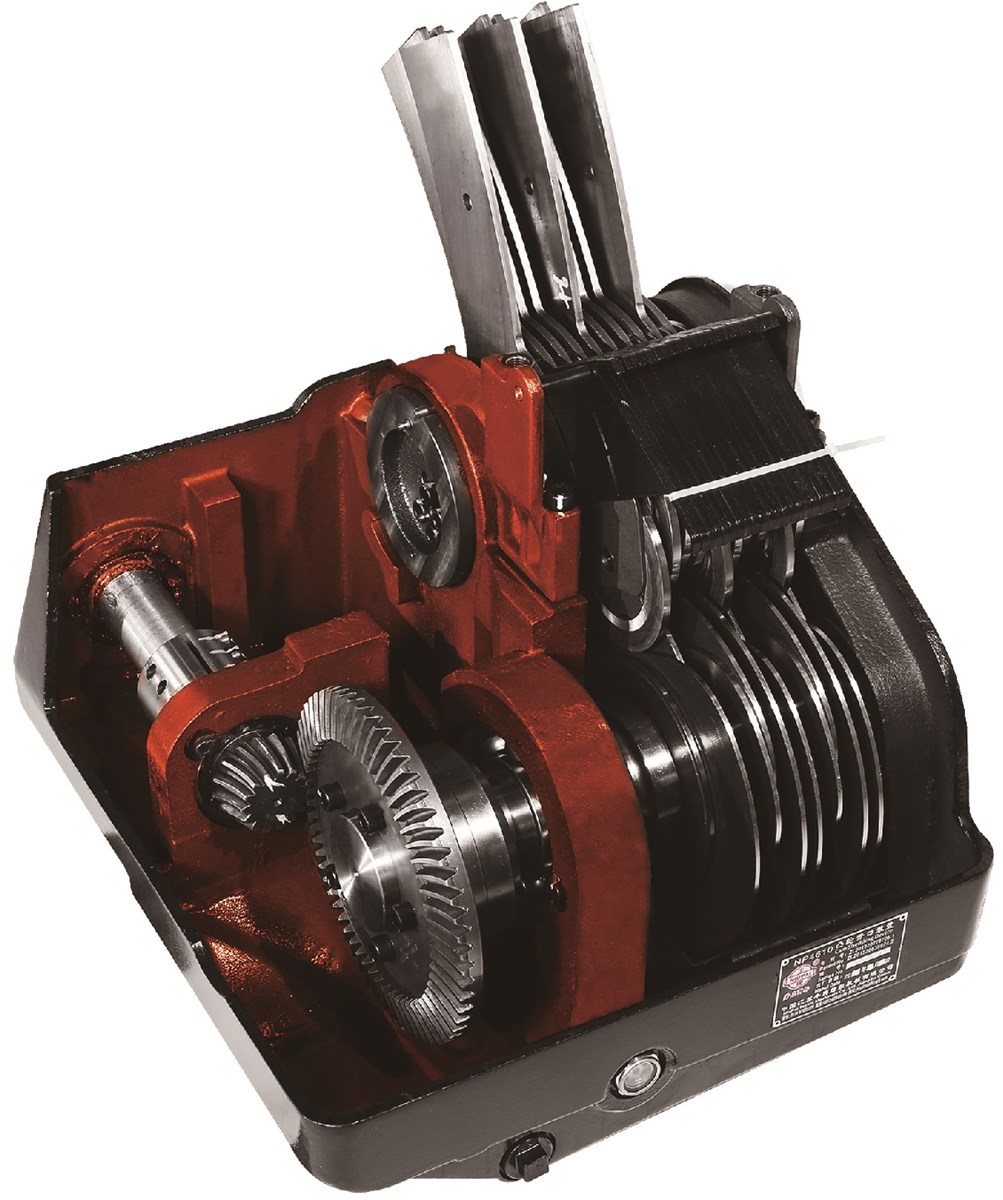

NP4610 is low-positioned Positive cam shedding device that matches wide and fast speed air-jet looms. Multiple cams of different stoppage angles can be selected to weave plain, Twist, satin and other unbalanced fabrics within 6 weft picks, and the opening Is clear. The device is suitable for wide and high speed air-jet looms because of its strong rigidity, heavy duty and smooth transmission. The speed ratio can Be adjusted simply by replacing timing pulley, which is fast and convenient With low cost.
