| Pressure: | Low Pressure |
|---|---|
| Standard or Nonstandard: | Standard |
| Power: | Electric |
| Structure: | Single-stage Pump |
| Brand Name: | NaiPu |
| Application: | Sewage |
| Fuel: | Diesel |
| Usage: | Water |
| Theory: | Centrifugal Pump |
| Model Number: | 14/12G-G |
| Place of Origin: | China (Mainland) |
| Name: | Sand Gravel Pump |
| Flow: | 1400-2200m3/h |
| Head: | 15-60m |
| Material: | High Chrome Alloy A05 |
| Suction size: | 14 inch |
| Discharge Size: | 12 inch |
| aplication: | sand river sand suction |
| Drive: | Power or Diseel |
| connect: | V belt or gear box |
Quick Details
Specifications
Product |
12 inch / 14/12 G-G sand pump |
Dia. Inlet/Outlet |
14/12 inch |
Capacity |
576-3024 m3/h |
Head |
8-70 m |
Allowable Max. Power |
600 kW |
Speed |
300-700 r/min |
NPSH |
2-8 m |
Max Solid Passing |
241mm |
Weight: |
5400kg |
12 inch sand gravel pump Feature:
Naipu NP-G Series dredge and gravel slurry pumps are designed to handle very large particles for gravel and dredging operations. Naipu dredge and gravel slurry pumps are designed for the continuous handling of the most difficult higher abrasive slurries, containing solids too large to be pumped by a standard slurry pump.
They are suitable for delivering slurries in Mining, explosive-sludge in metal melting, dredging in dredger and course of rivers and other fields.
1. Construction of this pump is of single casing connected by means of clamp bands and wide wet passage.
2. the wet-parts are made of Ni-hard and high chromium abrasion-resistance alloys.
3.the discharge direction of pump can be oriented in any direction of 360°.
4. this type of pump possesses the advantages of easy installation and operation, good performance of NPSH and Abrasion-resistance
Typical Application:
Slag Granulation
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Sugar Beet
Materials of Construction
VOLUTE |
IMPELLERS |
BASE |
EXPELLER |
EXPELLER RING |
SHAFT SLEEVE |
SEALS | |
Standard |
High Chrome Alloy |
High Chrome Alloy |
Cast Iron |
Chrome Alloy |
Chrome Alloy |
SG Iron |
Natural Rubber |
Options |
SG Iron |
SG Iron |
Mild Steel |
SG Iron |
SG Iron |
EN56C |
Nordel |

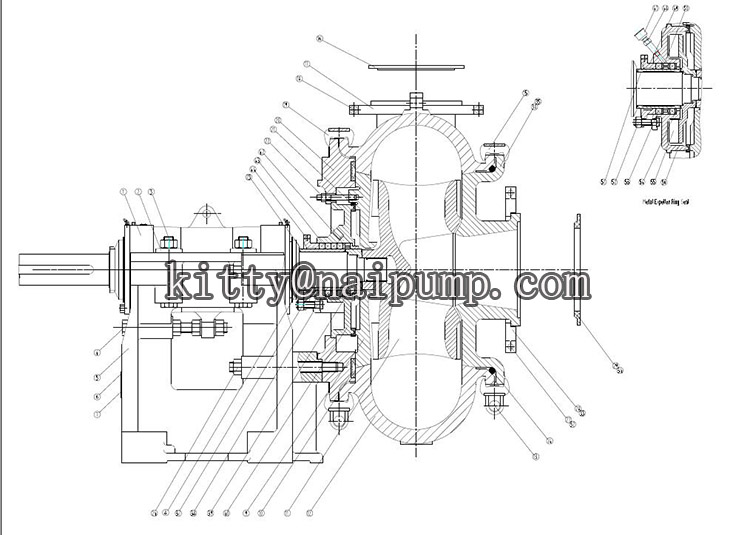

12 inch (14/12G-G ) Sand Gravel Pump Assembly Drawing

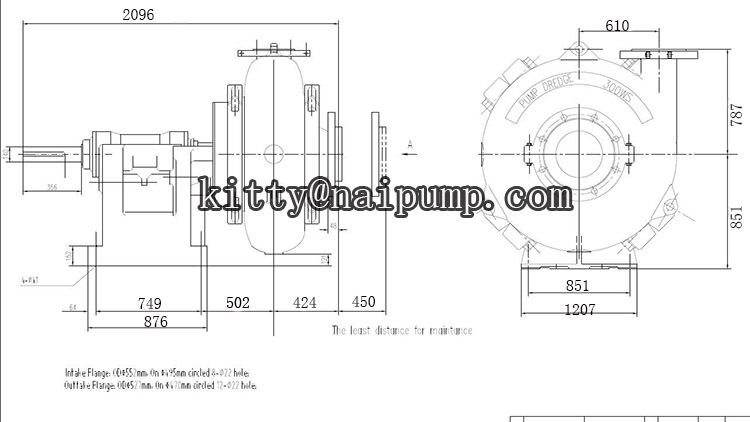

12 inch (14/12G-G ) Sand Gravel Pump Dimension Drawing
12 inch (14/12G-G ) Sand Gravel Pump Picture
