| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | tongda |
| Automatic: | Yes |
| Blow Moulding Type: | Stretch Blow Moulding |
| Condition: | New |
Quick Details
Specifications
Features:

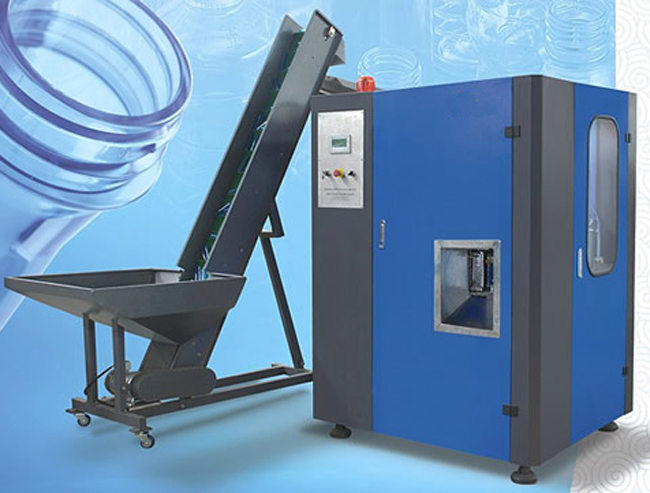

FG-A1 Fullautomatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle,mineral water bottle, pesticide bottle,oil bottle,cosmetics bottle ect.
*Reasonable design, full automaticlly control, save power and labor.
*Adopting high quality components.
*Feeding system carries the preforms by robot arms automatically.
*Infrared oven adopts the quartz lamp to heat the PET tube.
*Full automatic process with low investment,high efficiency, quick and safe for operating,easy for maintenance.
Main Parameter:
Model |
ITEM |
FG-A1(2L) |
FG-A1(5L) |
Productivity |
Depend on bottle design |
800-1200 PCS/H |
500-800PCS/H |
Product type |
Volume |
0.1-2L |
2-5L |
Body diameter |
≤100mm |
≤175mm | |
Height |
≤330mm |
≤330mm | |
Neck diameter |
≤30mm |
≤45mm | |
Mould |
Cavity |
1 |
1 |
Mold thickness |
240mm |
260mm | |
Mold size |
300*240*380 |
300*260*380 | |
Main machine power |
Electrical source power |
380V/220V 50/60HZ 3Phase |
380V/220V 50/60HZ 3Phase |
Power |
25kw |
25kw | |
Really use power |
7kw |
10kw | |
Air system |
HP air compressor |
1.6m3/min 3.0Mpa |
1.6m3/min 3.0Mpa? |
LP air compressor |
/ |
1.0m3/min 1.0Mpa | |
Air Tank |
/ |
0.6m3/min 3.0Mpa | |
Air dryer |
1.0m3/min 3.0Mpa |
2.0m3/min 3.0Mpa | |
Cooling water |
Water Chiller |
3HP |
3HP |
Machine |
Size(L*W*H) |
1500*1200*1800mm |
2000*1200*1800mm |
Weight |
1500kg |
1800kg | |
Preform unscrambler |
Size(L*W*H) |
2000*950*2480mm |
2000*950*2480mm |
Weight |
250kg |
250kg |
