Hot sale LAUNCH TLT440W ever eternal one post car lift parking

Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.
    Driven by hydraulic cylinder and steel cable synchronization
    makes stable lifting and lowering.
    Full-range mechanical safety protection by using the safety
    latches, manual lowering operation.
    Full-range mechanical safety lock system.
    Cylinder travel limit device effectively protects cylinder and
    extends its lifespan.
    Cable rupture safety system,effectively protects vehicle from
    overturn.
    Electric controlled lifting and lowering, safe and easy
    operation.
    Mechanical safety device for rope rupture.
    Four connected steel cables force synchronized movement of
    the lift, effectively prevent vehicles from sloping.
    Distance between two platforms is adjustable for vehicles
    with different wheel track.


Introduction:

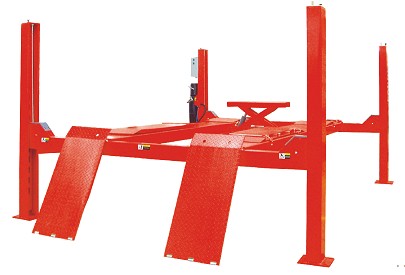

 Wheel Alignment 4 Post Lift (Rated Capacity: 4 Ton) is used for lifting of various small and medium-sized vehicles with total weight below 4.0t in garage and workshop.

Feature:

 1.Designed based on the international standard, meeting the demand of the garage and workshop.
2.Driven by hydraulic cylinder in stable lifting and lowering.
3.Offering full-range mechanical safety protection by using the safety latches.
4.Connected by four steel cables; forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles.
5.Equipped with rolling jack, turntable and sideslip, suitable for wheel alignment.
6.Adjustable distance between runways to accommodate different wheel track.

Specification:
    Rated load: 4000kg
    Lifting height: 1900mm
    Initial height: 170mm
    Lifting time: ≤60s
    Lowering time: ≥20s≤40s
    Max. Drive-on width: 3045mm
    Platform length: 4240mm
    Platform width: 500mm
    Overall width:3445mm
    Overall height: 2172mm
    Motor power: 2. 2kw
    Motor voltage: 3 phase/380v or Single phase/220V
    Working noise: ≤75dB(A)
    Working oil pressure: 16MPa
    Working air pressure: 0.5-0.7MPa



for more information,please do contact me for catalog.
