Brand Name: | HIROSE,HRS,MOLEX,CIVILUX,JST,TE,ES |
---|---|
Material: | LCP,Metal |
Color: | Beige,White,natural |
Pitch: | 1.25mm |
Type: | wire to board |
Model Number: | ES1257 |
Place of Origin: | China (Mainland) |
Pitch: | 1.25mm |
Mounting: | SMT/DIP |
Row: | 1 |
Pins/circuit/poles: | 2~30 |
Quick Details
Specifications

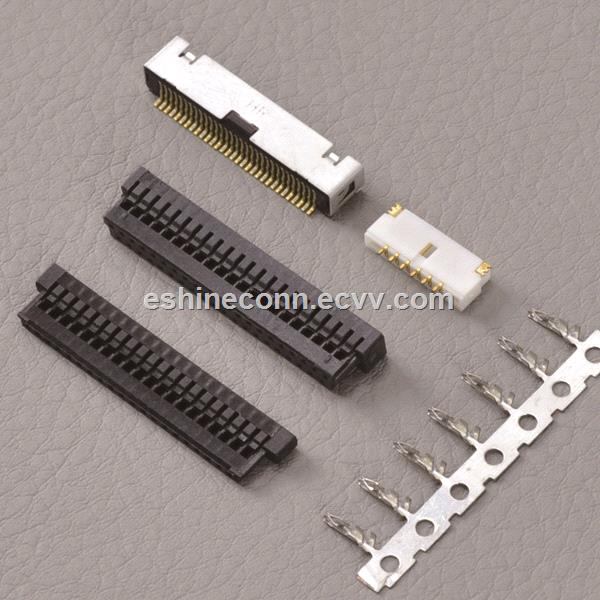

Alternate JAE FI-S wire to board connector housing socket contact header for Pos machine lvds cable
Name |
JAE FI-S wire to board connector |
Application |
LVDS cable, board to wire |
Connector |
Socket, contact, pin header |
Circuits/poles/pins |
2~30 |
Terminal Pitch |
1.25mm |
Certificate |
ROHS, UL,HF |
? Flex Connector available
? Socket Housing available with or without a shield
? Dependable pin-type double contacts
(post and box)
? Pin Header available on embossed tape for
Automatic SMT mounting
? Friction lock housing enables secure connections
They can be equal JAE(Japan Aviation Electronics), HRS, Molex, Digi-Key, TE AMP, TYCO JST, Yeonho, Civilux, Samtech ect famous parts.
Socket Housing |
FI-S***S (Cable side plug, Discrete wire unshielded) |
Socket contact |
FI-C3-A1-15000 , Tin-lead plated |
Pin Header/wafer |
FI-S***P-HFE (Board side receptacle) |
Pitch Centerline |
1.25mm |
Circuits/poles/pins |
2-30 |
Number of Rows |
Single |
Current rating |
1A AC,DC |
Voltage rating |
100V,AC,DC |
Wire range |
AWG30~36 |
Application:
They are used in Pos machine, notebook PCs, mobile phones, VCR's, and other consumer
Applications, where reduced space Is a requirement etc.
If you can't find the part number Here, please contact us or send your drawing or part number.
Along with digitalization trends, Cases where LVDS (Low Voltage Differential Signaling)
Is used for internal wiring in Consumer products such as TVs are increasing. Eshine has developed a connector that combines both electrical considerations for LVDS
Transmission and mechanical Considerations for TV interiors.
OEM orders are welcomed!
