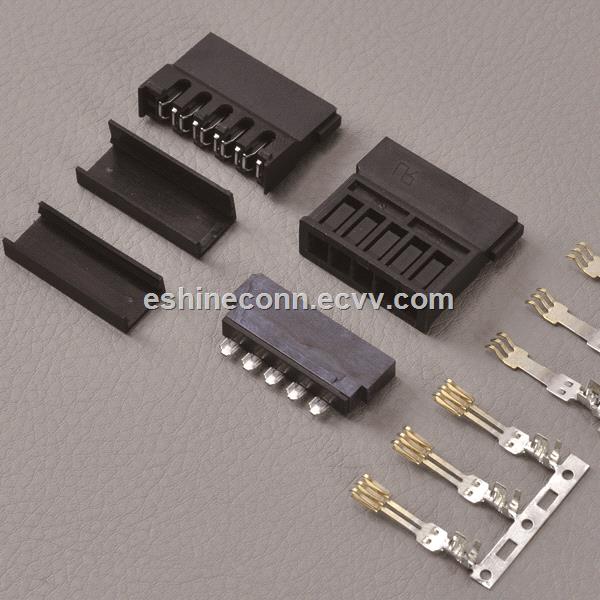

15Pins 5P 67582 Serial ATA SATA Power cable receptacle to HD TV home theatre computer





Name	Molex Serial ATA connector	Application	Signal,Power  Wire–to-Board
Connector	Receptacle,	Circuits/poles/pins	15
Pitch	1.27mm	Certificate	ROHS, UL,HF



1) Guide pocket for plug and guide post for receptacle allows blind-mating

2) Offer speed advantage, greater possibilities and flexibility



They can alternate Molex, Digi-Key, TE AMP, TYCO JST, JAE,, Hirose, Yeonho, Civilux ect famous parts.





Crimp Housing	Alternative 67582-0000 Molex Receptacle Housing, SD-67581-002,PS-67490-002
Crimp terminal	67581-0000 Serial ATA Crimp Terminal, phosphor bronze, gold plating mating ,SD-67581-001
Pitch Centerline	1.27mm
Circuits/poles/pins	15
Number of Rows	Single
Current rating	1A AC,DC
Voltage rating	100V,AC,DC
Wire range	AWG28~32



Usage range:

Automotive Navigation, solid sate Drive, set-top box, digital audio, brown goods, optical drives, HDTV home Theatre, 3D video

Mobile Computing

 - Notebook PC,Computer

 - Sub-Notebook PC

 - Media PC

 - Multimedia Peripherals



Enterprise Computing

 - MID range Servers

 - Network Storage

 - Raid Storage

 - Backplane

 - Internet Services

Desktop Computing

 - Hard Disk Drive

 - Motherboard

 - Power Supply

 - adapters

 - Controller Boards

 - Data Protection

 - Workstation

If you can't find the part number Here, please contact us or send your drawing or part number.



Eshine can also refer you to various of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs:   AWG

UL Style:

Other end:

Assembly connector

Completer strip/Tin plate:

Semi Strip/Tin plate:



OEM orders are welcomed!
