| Brand Name: | jsig |
|---|---|
| Face Capacity: | 500 |
| Fingerprint Capacity: | 2000 |
| Display: | 4.5 inch |
| Communication: | TCP/IP, USB host |
| Model Number: | iface302 |
Quick Details
Specifications

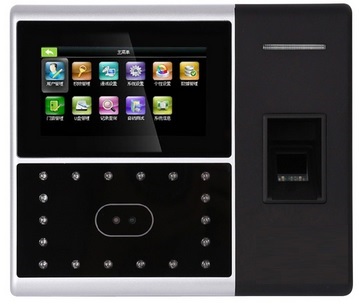

IF302 multi-biometric identification and terminal adopts latest ZEM600 platform with Face 7.0 algorithm and large capacity memory. It integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
CPU |
Multi-Bio CPU 630 MHz |
Memory |
256M Flash, 64M SDRAM |
Hardware Platform |
ZEM600 Multi-Medium Development Platform |
Fingerprint Sensor |
Crystal sensor |
Camera |
High Resolution Infrared Camera |
Display |
4.3'' TFT touch screen |
Face capacity |
500 |
Fingerprint capacity |
2000 |
ID Card capacity |
10,000 (optional) |
Logs capacity |
100,000 |
Algorithm Version |
Face 7.0 & Finger 10.0 |
2000mAh backup battery |
Optional |
Communication |
TCP/IP,RS232/485 |
USB-HOST |
Two USB-Host |
Wireless Wi-Fi |
Optional |
Time attendance Standard functions |
ID Card(402 Optional), Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
Access control interfaces for |
3rd party electric lock, door sensor, exit button |
Wiegand Signal |
Output |
Optional functions |
Serial printer, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS |
Power supply |
12V3A |
Verification Speed |
≤2 sec |
Operating temp |
0℃- 45 ℃ |
Operating Humidity |
20%-80% |
Dimension |
193.6*165*111 mm (Length*Width*Thickness) |
Net Weight |
1.75 kg |
