| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | BLKMA |
| voltage: | 220/380v |
| weight: | 3.5 ton |
| Condition: | new |
| Model Number: | ADL-3-1300 |
| Place of Origin: | China (Mainland) |
| color: | optional |
| OEM: | available |
Quick Details
Specifications

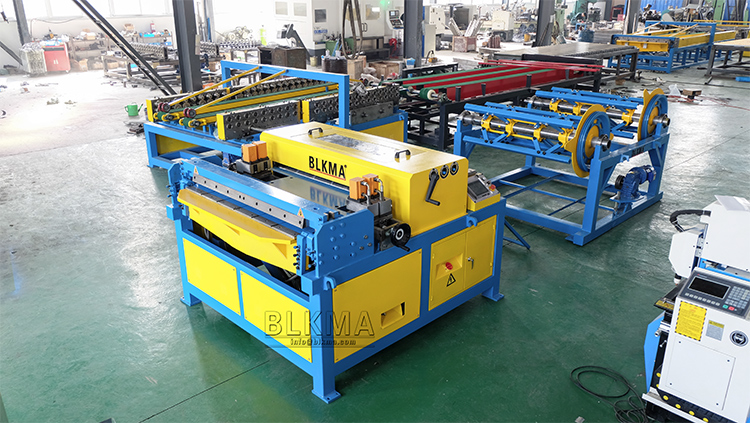

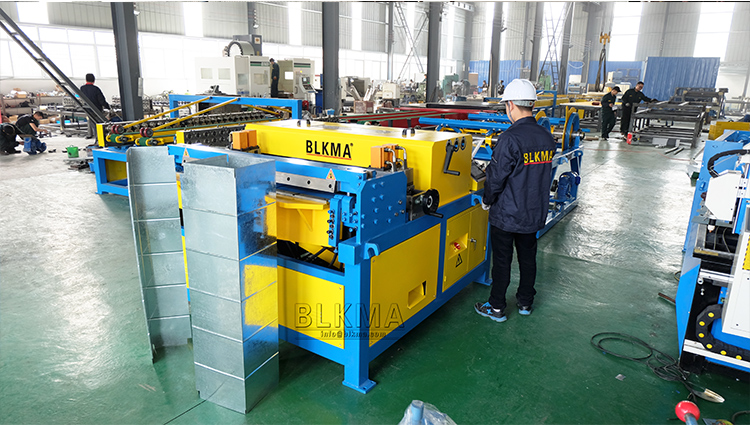

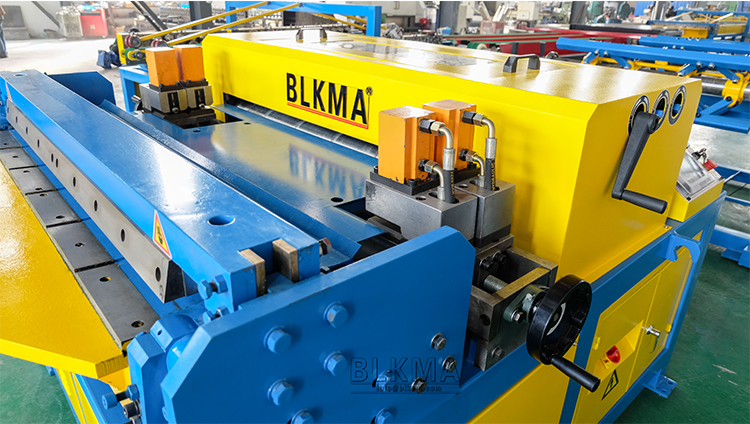

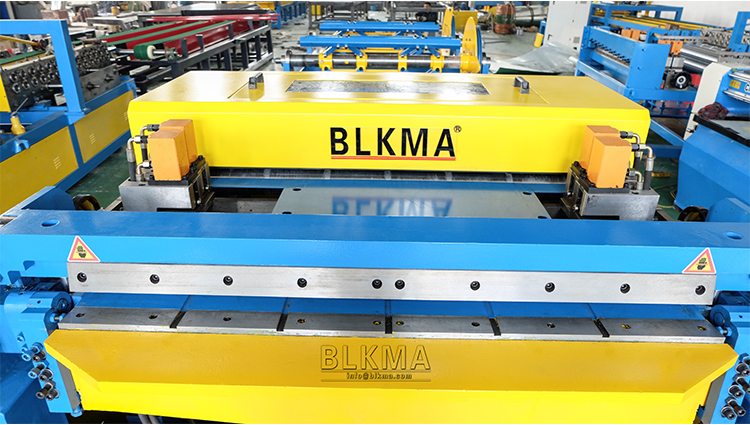

BLKMA auto rectangular HVAC air duct manufacturing machines / duct production line 3
Duct production line 3 has leveling, beading, notching, shearing and folding functions.
Duct production line 3 has leveling, beading, notching, shearing and folding functions.
Performance Features:
1.Aluminum alloy suspension arm makes the machine easy to operate.
2.the build-in control cabinet reduces wiring as a whole structure and makes it easy to move.
3.the imported configuration is very stable and comfortable to use.
Function:
Duct production line 3 can drive blanking for duct. Meantime,it's very suitable for diversified production like TDF/angle steel/inserted flange forming; the angle steel flange and inserted flange can be bent into square-shaped pipe automatically.
Main import Configuration:
|
1. Japan Mitsubishi CNC system+Schneider electrical system |
| 2. Beijing Huade or Taiwan hydraulic system |
| 3. Japan Omron encoder |
Basic Configuration:

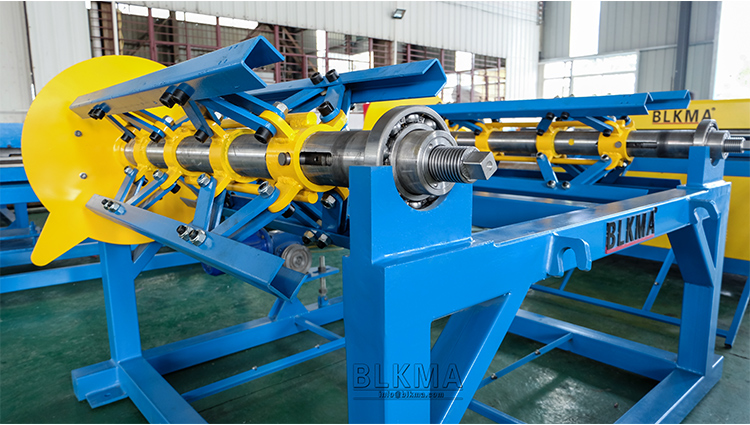

| 1. One electric coil cradle(two material trays) |
| 2. One set leveling and beading equipment |
| 3. Hydraulic angle-shearing machine with four sets of die |
|
4. Hydraulic sheet-shearing machine,hydraulic bending machine,hydraulic press machine |
| 5. One set of CNC computer control system and production software |
Main Technical Parameters:
| Model |
Sheet Thickness (mm) |
Max width (mm) |
Max Working speed (m/min) |
Max Weight of sending coil (T) |
Dimension L*W*H (mm) |
Power (kw) |
Weight (T) |
||
| ADL-3-1300 | 0.5-1.2 | 1300 | 15 | 7 | 7000 | 1950 | 1600 | 7 | 3.5 |
| ADL-3-1500 | 0.5-1.2 | 1500 | 15 | 7 | 7000 | 2150 | 1600 | 8.5 | 4 |
Products Show:
