| Special Features: | with audio |
|---|---|
| Technology: | Pinhole |
| Sensor: | CCD |
| Type: | Analog Camera |
| Brand Name: | Miyeaeye |
| Style: | Mini Camera |
| Model Number: | AV-M134CHP4 |
| Place of Origin: | China (Mainland) |
| Sensor: | 1/3'' Sony CCD |
| Resolution: | 480TVL |
| Lens: | 3.7mm pinhole lens |
| Camera size: | 34x34mm |
| Audio: | yes |
Quick Details
Specifications

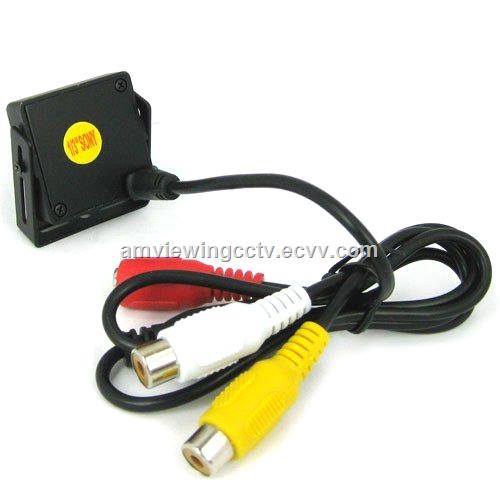

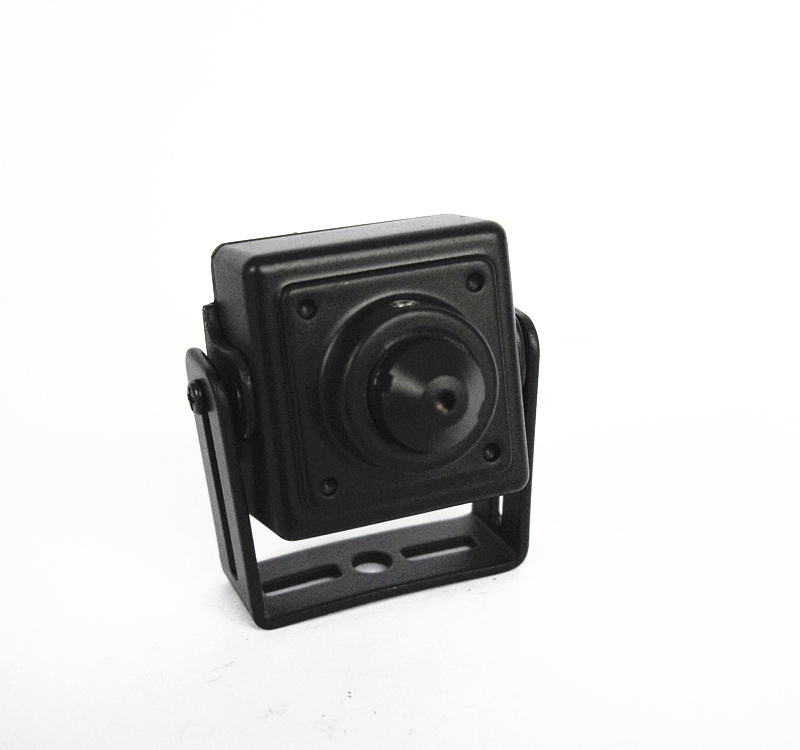

480tvl Pinhole Mini CCTV Camera with Aduio
Pinhole Mini CCD Camera Feature:
Model: AV-M134CHP4
1/3" SONY CCD;
Pinhole Mini CCD Camera Feature:
Model: AV-M134CHP4
1/3" SONY CCD;
480 TV Lines, 0.01Lux;
Size: 34*34mm ; (25*25mm/30*30mm/34*34mm/40*40mm available; )
Metal Casing;
Metal Casing;
? 420TVL, 480TVL, 600TVL, 650TVL, 700TVL available; 650TVL, 700TVL with/without OSD Menu Control are in option;
Detailed Specifications Of The Parameters
|
Model
|
AV-M134CHP4 (3.7mm super cone pinhole lens)
|
|
Image Device
|
1/3" Sony super HAD CCD
|
|
Horizontal Resolution
|
480TVL
|
|
Minimum Illumination
|
0.5Lux
|
|
Effective Pixels
|
PAL: 752(H)x582(V); NTSC: 768(H)x494(V)
|
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
S/N Ratio
|
More Than 48dB(AGC off)
|
|
Electronic Shutter
|
PAL: 1/50~1/100,000 Sec; NTSC: 1/60~1/100,000 Sec, auto
|
|
Gamma Characteristic
|
0.45
|
|
White Balance
|
Auto
|
|
Lens Option
|
pinhole lens, board lens, wide angle lens, vari-focal lens available
|
|
BLC
|
Auto
|
|
AGC
|
Auto
|
|
Sync System
|
Internal Synchronization
|
|
Video output
|
1Vp-p 75 Oms , Negative
|
|
Power Consumption
|
12V± 10%DC, 50mA
|
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
|
Housing
|
Black
|
|
Dimension
|
34x34mm
|
|
Weight
|
30g
|
|
Supplied Accessories
|
User manual, cable, screw, bracket
|
