Main function:

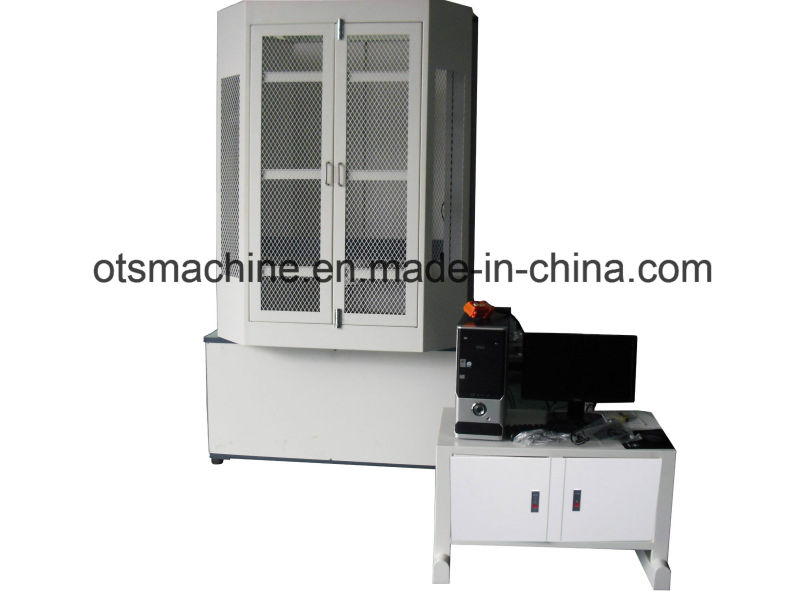

Chair Base Tester is used for the vertical pressure testing, destructive Testing and fatigue testing of the office chair Ipomoea base ( Star Base ), repeated pressure loading in setting force and test cycle as the Fatigue test. All holding pressure time and cycle number of tests can Be adjusted.

Product description:
this machine is used for office chair Ipomoea compressive vertical pressure Test, this machine can also be used as a fatigue test, in the set value, the testing period, repeated loading pressure as the fatigue test. the Size of the pressure, the holding time and the number of cycle tests can Be adjusted.

Detailed:

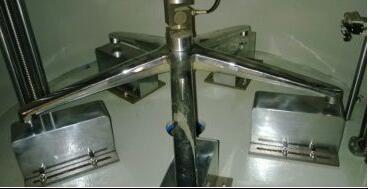

the test machine used to test the support office chairs Ipomoea compressive Strength, by pressure on the vertical test Ipomoea Ipomoea pressure Situation.
Applying force chair casters fixed on the turntable at a Predetermined time and frequency on Ipomoea, Ipomoea check Anti-corruption capacity.
the machine uses high-precision sensors Inductive power to the computer and parse out the resistance value Directly displayed on the screen.

Computer operation:
with "Windows" work platform, all parameters set by dialog, easy to operate;
Software language all in English;
Edit the test reports by yourself, all test parameters in main interface; Can choose time and elongation, elongation and force and others curve
with variety unit, metric system can switch;
with automatic back and calibration function; with magnification function to reach suitable graph;
Test speed can settable by customer;
with define test method, all test parameters can analysis automatically;
Get the test reports automatic and print out in A4 paper, also with curve or save in Word format.

the main technical parameters:
1) Capacity: 2000kg-5000kg
2) Load accuracy: 1%
3) Unit conversion: Kgf, lb, N
4) Maximum stroke: 1000mm
5) Effective width: 550mm
6) Pressure plate diameter: 700mm
7) displacement analysis: 0.5mm
8) Data sampling frequency: 200times
9) Display: Full computer display
10) Transmission: synchronous inverter motor drive
11) Pressure Speed: 5 ~ 100mm / min can be set
12) Power: AC220V / 50Hz



If you have new requirements, pleaseContacttheTechnical Section,Senior engineer to provide you with the most authoritative product testing scheme

Q1:Is your company a trading one or a factory?
A1:Our Factory produces goods directly. We have  focused on the development  and manufacturing of  physical and environmental testing equipments for 18 years,besides,we have export experience of six years.

Q2:What about the quality of services and products?
A2:Berore shipping and delivering the goods,each product must be tested and tested for 100%.
Products using  training: we would provide a training video of each product in order to show you how to install and operate.
All products meet the standsrds of  ISO, ASTM, AATCC, BS, EN, DIN, JIS, GB and other requirements.

Q3:how long is the delivery time?
A3:Usually about 15 to 25 days.If we have stock, we can arrange the shipment within 3 days.
Kindly note that our producing and delivery time depend on specific item and the number of it.
Except for the special customization.

Q4:Distance transportation, the packaging is strong enough?
A4:Packing: the first layer uses bubble film,and the second layer uses vacuum Film.We take away the air so as to make a vacuum environment after Packing,which can avoid the problem of rust on the rough sea,and the Outer packing using standard wooden cases.

Q5: What is the mode of payment?
A5:Generally we use telegraphic transfer,inculding 50% deposit and 50% before shipment.Other payment methods can be negotiated.


Q6:how warranties and after-sales services?
A6:Our products have 18-month warranty.
Life-long Free technical support, be video throughemail.Besides, we can help you to repair your problem controller, even it's not from our factory Produce.
What you need to do is tosendUs the controller.
Outside the warranty period, professional after-sales service team will provide the perfect technical support, and help customers to solve problems When using our products, deal with guest problems and complaints, and in A professional and timely.
