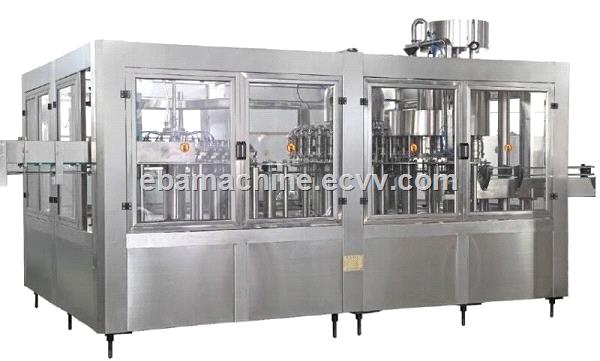

Mineral Water Bottle Filling Machine

1.Brief Introduction:

1. the all machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. the bottle handling technical also make the different bottle changing easily without changing too many accessories.

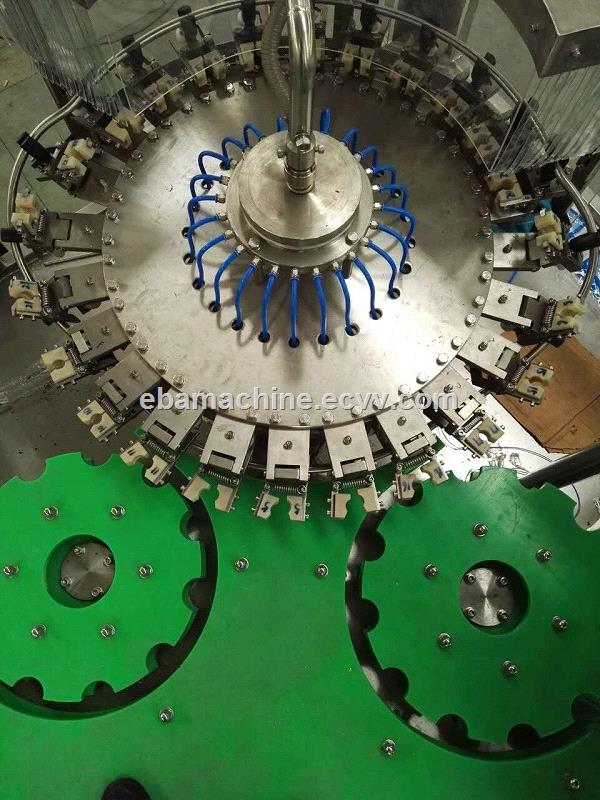

2. this machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.

3. the advanced normal pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.

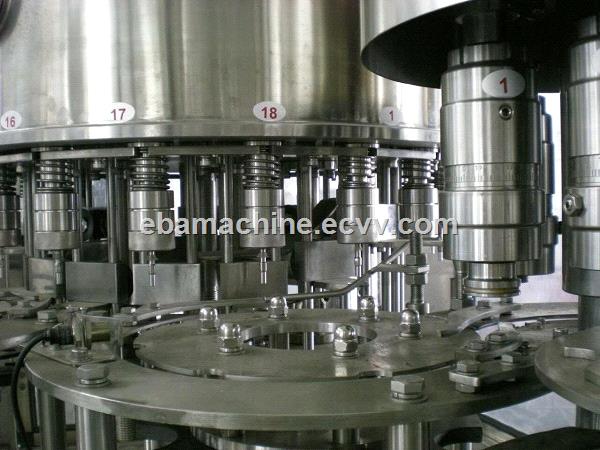

4. this machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. the sealing cap force can be adjusted.

5. Independent electricity box makes sure every electrical appliance works normally.

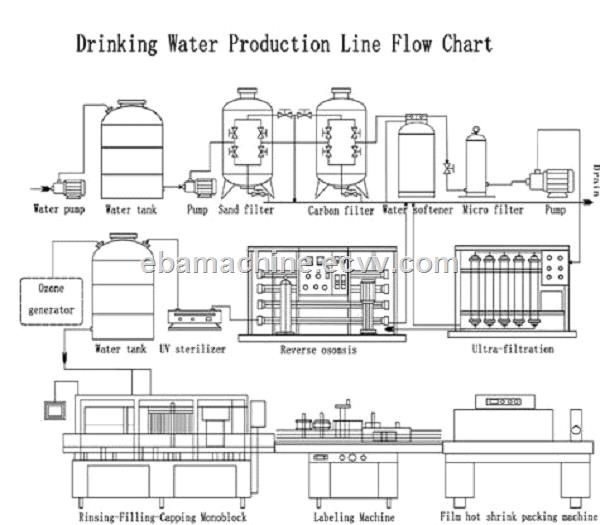

Flow Chart:

A.PET Preforms →Heat preform → Stretch → Blowing → Bottles

B. Stainless steel multistage centrifugal Pump→ Multiple medium filter→ Active carbon filter→Sodium exchange→ Micro filter→ Reverse osmosis→ Ozone generator→ Water tank→ Water Pump

C. Air conveyor→ 3-in-1 Washing Filling Capping Machine→Lamp checker→ Conveyor→ Dryer→Labeling machine→ Ink jet code printer→ Shrink packing machine→ Stock

2.Techincal parameters:

Model	Washing Heads	Filling Heads	Capping Heads	Capacity(500ml)	Main Motor Power
XGF16-12-6	16	12	6	2000-4000BPH	4.0KW
XGF18-18-6	18	18	6	5000-7000BPH	4.2KW
XGF24-24-8	24	24	8	8000-10000BPH	5.2KW
XGF32-32-10	32	32	10	10000-13000BPH	6.2KW
XGF40-40-12	40	40	12	13000-15000BPH	7.5KW
XGF50-50-15	50	50	15	15000-20000BPH	8.5KW
XGF60-60-15	60	60	15	20000-24000BPH	9.5KW
XGF72-72-18	72	72	18	24000-30000BPH	11KW



3.Performance features:
