| Brand Name: | Dellege |
|---|---|
| Custom Order: | Accept |
| Feature: | Barcode |
| Usage: | Price Tags |
| Material: | ABS+PC |
| Model Number: | TE-213 |
| Place of Origin: | China (Mainland) |
| Type: | RFID |
| Application: | Supermarket, Stores,Hospital |
| Multi language: | English, French, Spanish, Russian, French, German, Korean. etc |
| Battery Type: | button battery |
| Screen Material: | E-Paper Display |
| Frequency: | 430MHz-435MHz |
| Battery Life: | 5 Years |
Quick Details
Specifications

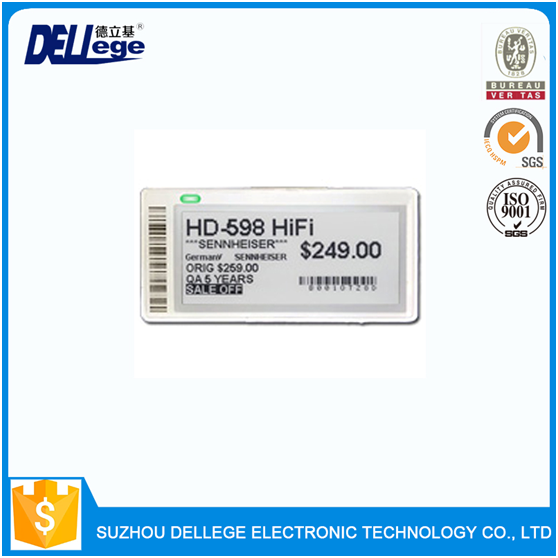

1 using E-INK electronic
Screen, good display effect, power to maintain display
2
Using SubG two-way communication technology, industrial level stable and
Reliable
3
Ultra low power communication scheme, battery life of more than 5 years
4
Provide mold design tools for the price tag Osaka, customers can according to
Their own needs customized price display
5 Operating Temperature: -10 to 60°C or -30°C to 60°C
6 Replaceable battery: Yes (replaceable by customer; batter pack available as a spare part)
Product size |
88mm*43mm*12.5mm |
Product weight |
38g |
Product appearance |
customizable |
Display size |
2.9 inches |
Resolution |
128*296 |
Industrial grade |
IP65 |
Base station | |
Dimensions |
120mm*120mm*30mm |
Weight |
200g |
Operating Temperature Range |
-20 °C to 55°C |
Humidity range |
75% |
Supply Voltage |
DC 5V |
Frequency |
430MHz-435MHz |
Transmit Power |
10dB |
Receiver Sensitivity |
-110dB |
Communication Distance |
20m-50m |
Interface |
TCP / IP connection |
Operating Current |
200 mA |
IP Rating |
IP65 |
Maximum communication distance |
30-50 meters (Line of Sight and open environment) |

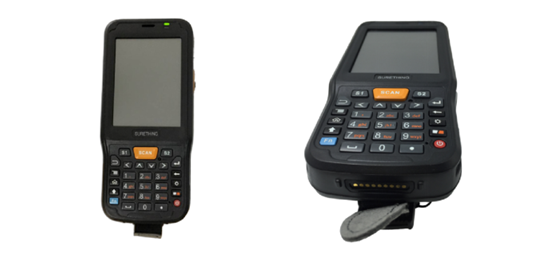

Handheld & AP
the handheld reader is mainly for Quickly binding/unbinding smart tag price to products.the reader
Recognize the barcode of the product; It also recognizes the electronic pricing TagID.
(Online binding and unbinding;Goods Information query;System alarm and diagnosis;Tag information
Paging and tag refresh)
Display (LCD) |
3.2-inch TFT-LCD 320x240 pixels, without touch screen |
Data collection module |
Support built-in one/two dimensional barcode scanning |
Memory |
RAM:1GB ROM:4GB |
Battery |
3.8V 4500mAh Rechargeable lithium battery |
Power consumption |
Working time:> 5h |
Industrial grade |
IP54 Drop impact resistance height 1.5meter |
Temperature |
Operation: -10°C to 50 °C; Storage: -20°C to 70 °C |
Size |
152mm *69mm * 29mm |
Weight |
320g |
Product size |
88mm*43mm*12.5mm |
Product weight |
38g |
Product appearance |
customizable |
Display size |
2.9 inches |
Resolution |
128*296 |
Industrial grade |
IP65 |
