| Machine Type: | Abrator |
|---|---|
| Use: | Burnishing,Container / Bottle Cleaning,Deflashing,Degreasing,Descaling / Stripping,Sterilizing / Disinfecting |
| Certification: | CE |
| Feature: | Critical Cleaning / Residue Free,Non-Ionic,Non-Toxic,Rust / Corrosion Inhibitor,Sudsing / Foaming |
| Brand Name: | JIAHAO |
| Machine Type: | Steel plate sand blasting machine |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Dimension(L*W*H): | 12180*4250*7095MM |
| Power(W): | 90000 |
| Material: | Metal / Coil |
| Industry Used: | Electronic Industry |
| Cleaning Type: | Clean-In-Place (CIP) |
| Cleaning Process: | |
| Fuel: | Electric |
| Model Number: | Q6912 |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| product name: | H Beam Steel Plate Cleaning Shot Blasting Machine |
| Voltage: | 220V/380V/415V or as your requests |
| Length: | 3500-15000mm |
| Wheels*Power: | (4-8)*11/15 kw |
| Cleaning Degree: | Sa2.5 |
| Work Speed: | 1.0-2.4 m/min |
Quick Details
Specifications
Q69 series steel plate shot blasting machine:
All kinds of thickness steel plate shot blasting machine,Steel surface strengthening cleaning equipment
All kinds of thickness steel plate shot blasting machine,Steel surface strengthening cleaning equipment
General Introduce

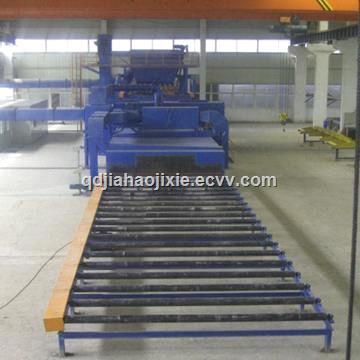

Automatic conveyor sand blasting machine are mainly used for treating long and/or flat components. the components continuously pass through the "pre"chamber, the blasting chamber, and the cleaning chamber on a special roller conveyor.Highly efficient turbines fixed on the machine housing make the Steel Plate Shot Blasting Machine possible to treat the components on all sides.Automatic conveyor sand blasting machine are used to remove scale, rust and paint from long and/or flat components.
Feature
1.this machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different thickness of workpieces.
Technical parameters
Type
Q698
Q6915
Q6920
Q6930
Q6940 Machine Entrance Width
600 mm
1500 mm
2000 mm
3000 mm
5000 mm Machine Entrance Height
550 mm
550 mm
550 mm
800 mm
800 mm Wheels*Power
4*7.5 kw
4*11 kw
4*15 kw
6*15 kw
8*15 kw Upper Edge Roller Conveyor (variable)
1000 mm
1100 mm
950 mm
950 mm
950 mm Work Speed
1-4 m/min
