Type: | Filling Machine |
---|---|
Brand Name: | EBA |
Packaging Material: | Glass,Metal,Plastic |
Packaging Type: | Barrel,Bottles,Cans |
Application: | Beverage,Food |
Condition: | New |
After-sales Service Provided: | Engineers available to service machinery overseas |
Certification: | CE ISO9001 |
Weight: | 2500KG |
Dimension(L*W*H): | 2200*2100*2200MM |
Model Number: | DCGF18-18-6 |
Place of Origin: | China (Mainland) |
Power: | 4KW |
Voltage: | Customized |
Driven Type: | Mechanical |
Automatic Grade: | Automatic |
Quick Details
Specifications

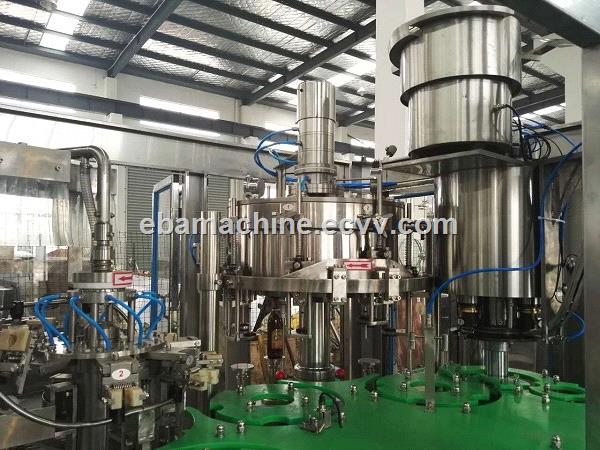

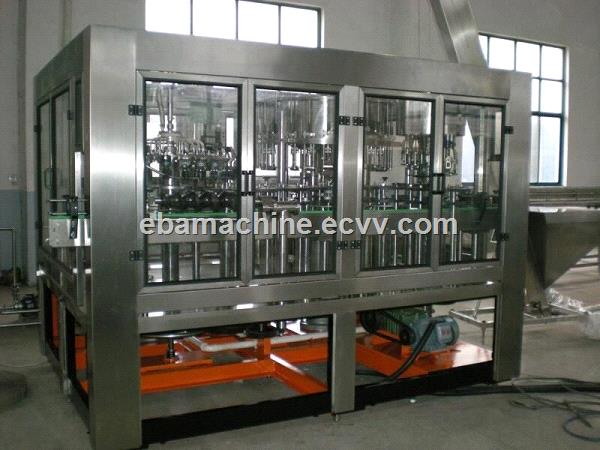

Carbonated Beverage Filling Machine
1.Brief Introduction:
1. the all machine applies bottle handling technical and the filling valves go up-down when filling, which make sure the bottle filling goes stable, reliable during high speed. the bottle handling technical also make the different bottle changing easily without changing too many accessories.

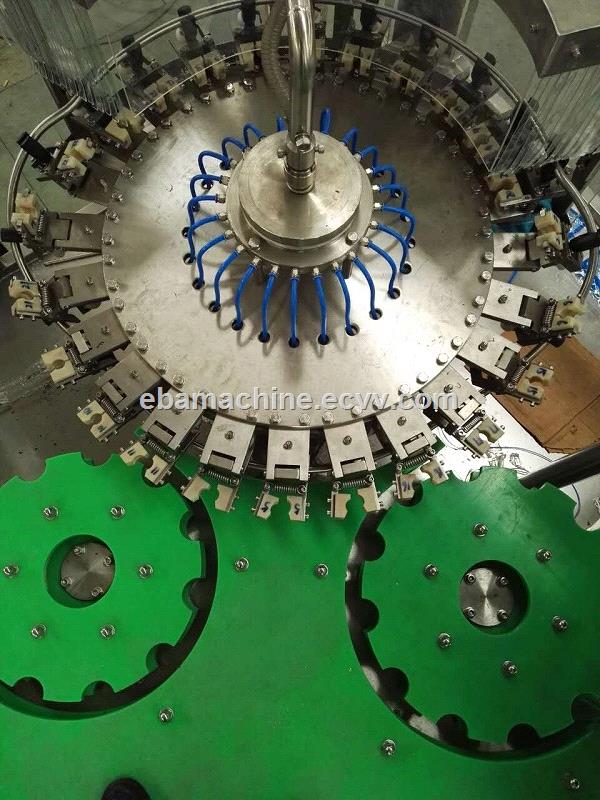

2. this machine uses new generation stainless steel spring washing clips and the clips do not contact the upside of bottle screw avoiding the second pollution. It can both clear the inside and the outside of the bottle.
3. the advanced normal pressure filling principle was applied. Filling is quick, and stable. Not contacting with the liquid avoids second pollution and oxidation.
4. this machine applies magnetic force screw type sealing, realizing auto grasping cap, sealing. the sealing cap force can be adjusted.
5. Independent electricity box makes sure every electrical appliance works normally.
2.Techincal parameters: Washing Workstation 18 Filling Workstation 18 Capping Workstation 6 Production Capacity 5000B/H(500ml) Machine Power 4kw Machine Weight 5000Kg External Dimensions (L*W*H) 2800(mm)* 2050(mm) *2200(mm)
3.Performance features:
